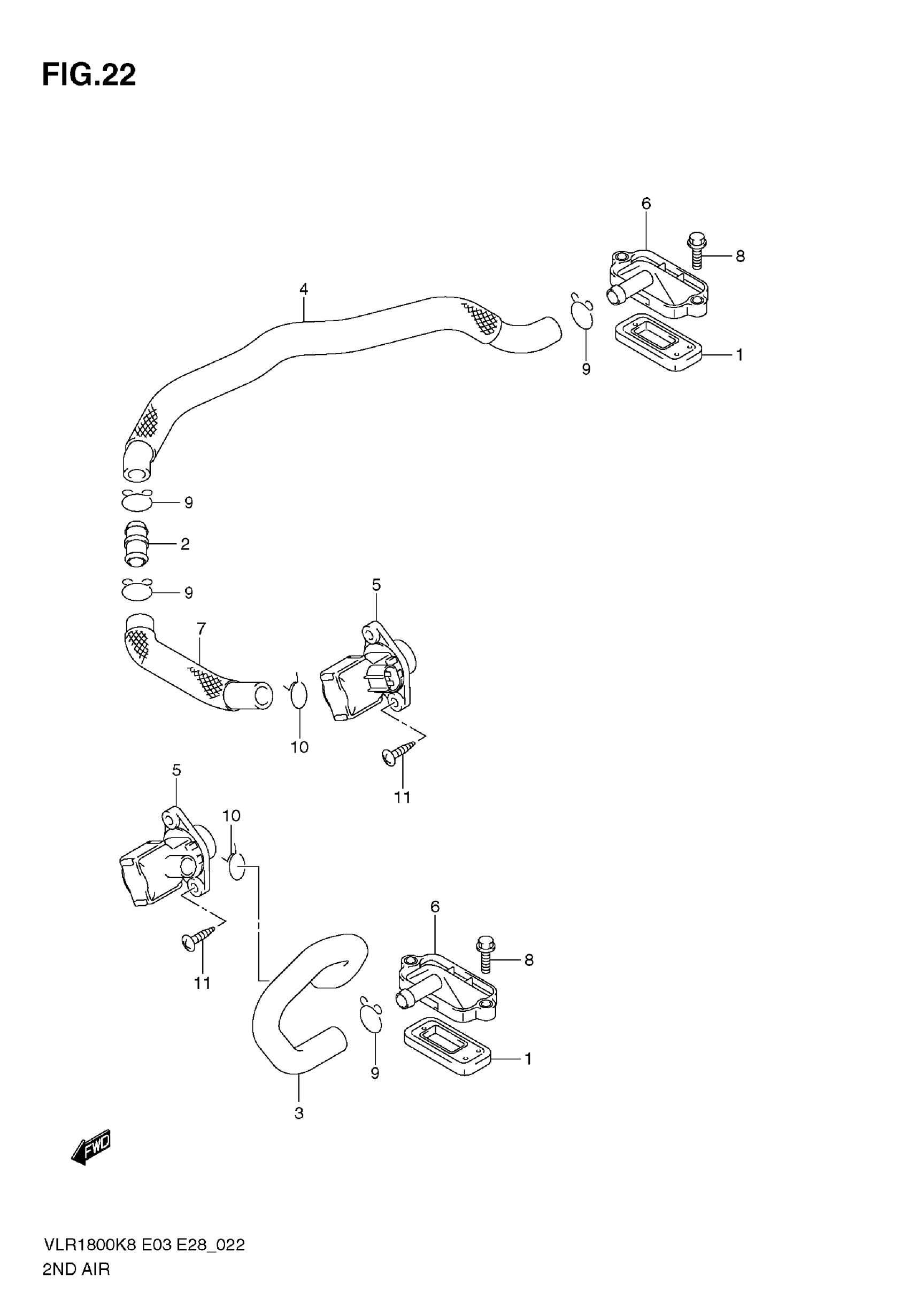

Suzuki VLR1800 (2009) SECOND AIR (E33) Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$40.40

2

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$9.35

3

HOSE, FRONT

18461-22H10

Unavailable

4

HOSE, REAR

18471-22H10

Unavailable

5

VALVE ASSY,AIR CUT This part replaces 18510-27G00.

18510-27G02

$102.25

6

COVER,2ND AIR

18531-06G01

$12.63

7

HOSE, 2ND AIR VALVE

18481-22H00

Unavailable

8

BOLT (6X20)

09103-06201

$2.54

9

CLIP

09401-15101

$2.28

10

CLIP This part replaces 09401-18304.

09401-18304-A05

$3.08

11

SCREW

03541-0520A

$1.81
