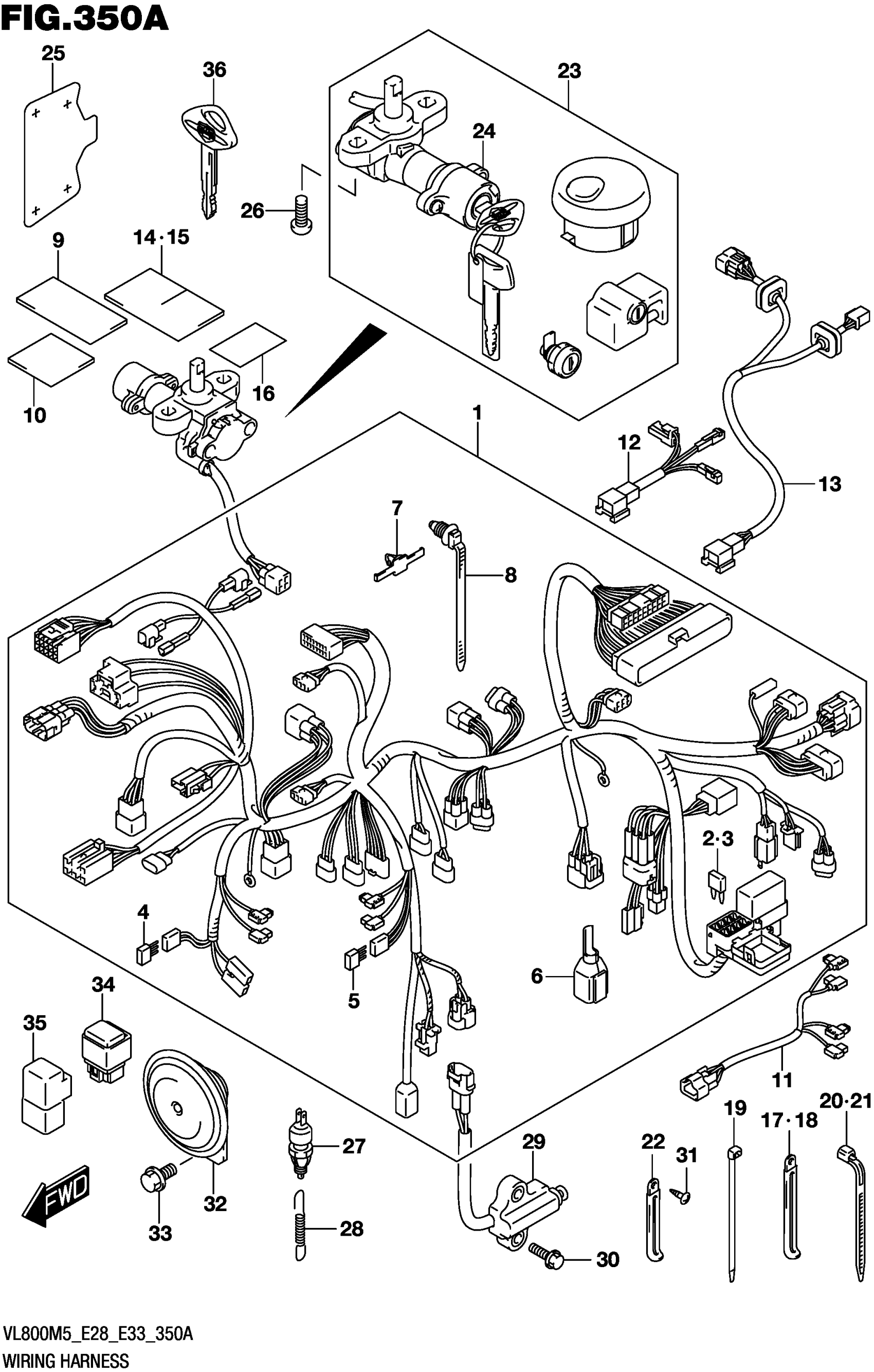

Suzuki VL800M5 (2025) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-43H70

$769.55

2

.FUSE (10A)

09481-10501

$2.07

3

.FUSE (20A)

09481-20501

Unavailable

4

.RECTIFIER ASSY

32800-16A00

$21.12

5

.DIODE

36611-38A10

$12.39

6

.BOOT

36717-41F00

Unavailable

7

.CLAMP

09407-05410

Unavailable

8

CLAMP (L:170)

09407-17403

$4.63

9

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

10

PROTECTOR,WIRING HARNESS (30X | 0X3)

36611-41F00

Unavailable

11

WIRE,IGNITION COIL LEAD

36854-39G01

$40.58

12

WIRE,REAR COMB NO.2

36856-41F00

Unavailable

13

WIRE,RR COMB

36858-41F01

$36.85

14

PROTECTOR,HARNESS (30X50X3)

36920-33C00

Unavailable

15

PROTECTOR,HARNESS (30X50X3)

36920-33C00

Unavailable

16

PROTECTOR,COWL UNDER (30X20X0 | 13)

94474-17H00

$5.18

17

CLAMP (L:80)

09404-06030

Unavailable

18

CLAMP (L:135)

09404-06435

$4.00

19

CLAMP (L:145)

09407-14407

$2.80

20

CLAMP (L:165)

09407-18402

$2.21

21

CLAMP (L:190)

09407-19401

$3.32

22

CLAMP (L:45)

09404-06429

$1.82

23

LOCK SET This part replaces 37102-41882.

37102-41883

$351.32

24

.LOCK ASSY,STEERING

37100-41F71

$169.77

25

PROTECTOR,IGNITION SW

37187-41F10

$13.73

26

BOLT (8X20)

09139-08016

$3.04

27

SWITCH ASSY,STOP LAMP

37740-24A00

$16.66

28

SPRING

09443-06073

$3.13

29

SWITCH ASSY,SIDE STAND

37840-41F02

$67.80

30

BOLT (6X20)

01550-0620A

$1.97

31

SCREW

03541-0512A

$1.37

32

HORN ASSY

38500-41F30

$98.98

33

BOLT (8X16)

01550-0816A

$2.31

34

RELAY ASSY | HEAD LAMP

38740-24A00

$71.43

35

RELAY ASSY

38740-24X50

$41.38

36

KEY,BLANK "BOULEVARD" | OPT

37146-41FA0

$56.87
