2025 Suzuki VL800M5 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2025 Suzuki VL800M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

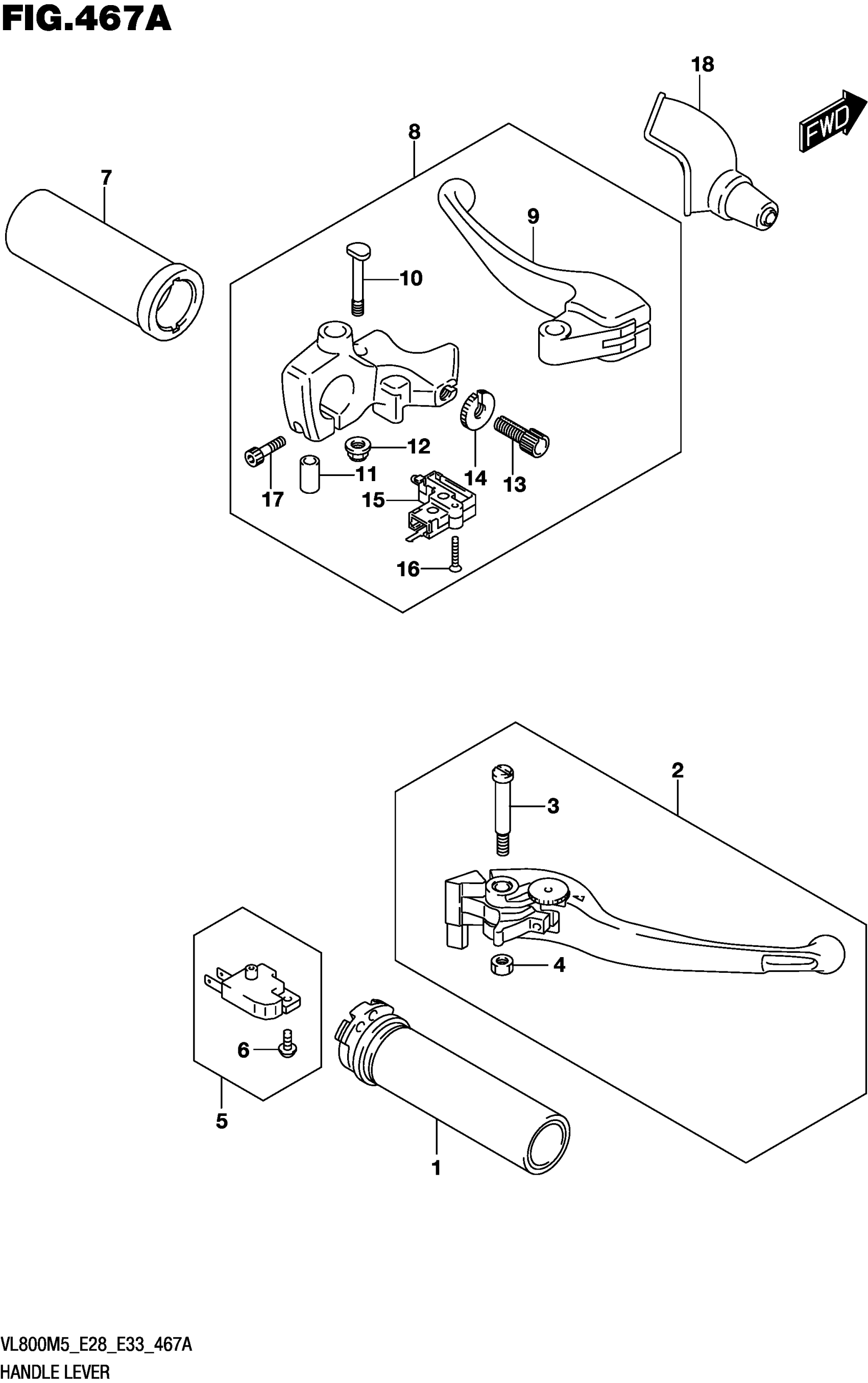

2025 Suzuki VL800M5 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE

57110-26D11

1

$43.12

In stock

2

LEVER ASSY,BRAKE

57300-48G10

1

$50.95

In stock

3

.BOLT,PIVOT

57431-48G00

1

$10.42

In stock

4

.NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE

57460-14J02

1
Out of stock

6

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

7

GRIP,L

57210-26D01

1

$30.14

In stock

8

LEVER ASSY,CLUTCH

57500-48G14

1

$109.17

In stock

9

.LEVER,CLUTCH

57621-48G11

1

$34.51

In stock

10

.BOLT,LEVER PIVOT

57531-48G00

1

$42.35

In stock

11

.COLLAR

57623-48G00

1

$33.85

In stock

12

NUT

08319-3106A

1
Out of stock

13

.ADJUSTER,WIRE

57441-08C01

1
Out of stock

14

..NUT,LOCK

57442-08C01

1
Out of stock

15

.SWITCH ASSY,CLUTCH

57560-05A10

1

$31.62

In stock

16

.SCREW,CLUTCH SWITCH

57562-41G01

1
Out of stock

17

.BOLT

07130-06207

1

$3.00

In stock

18

COVER,CLUTCH LEVER

57541-48G11

1

$10.98

In stock
