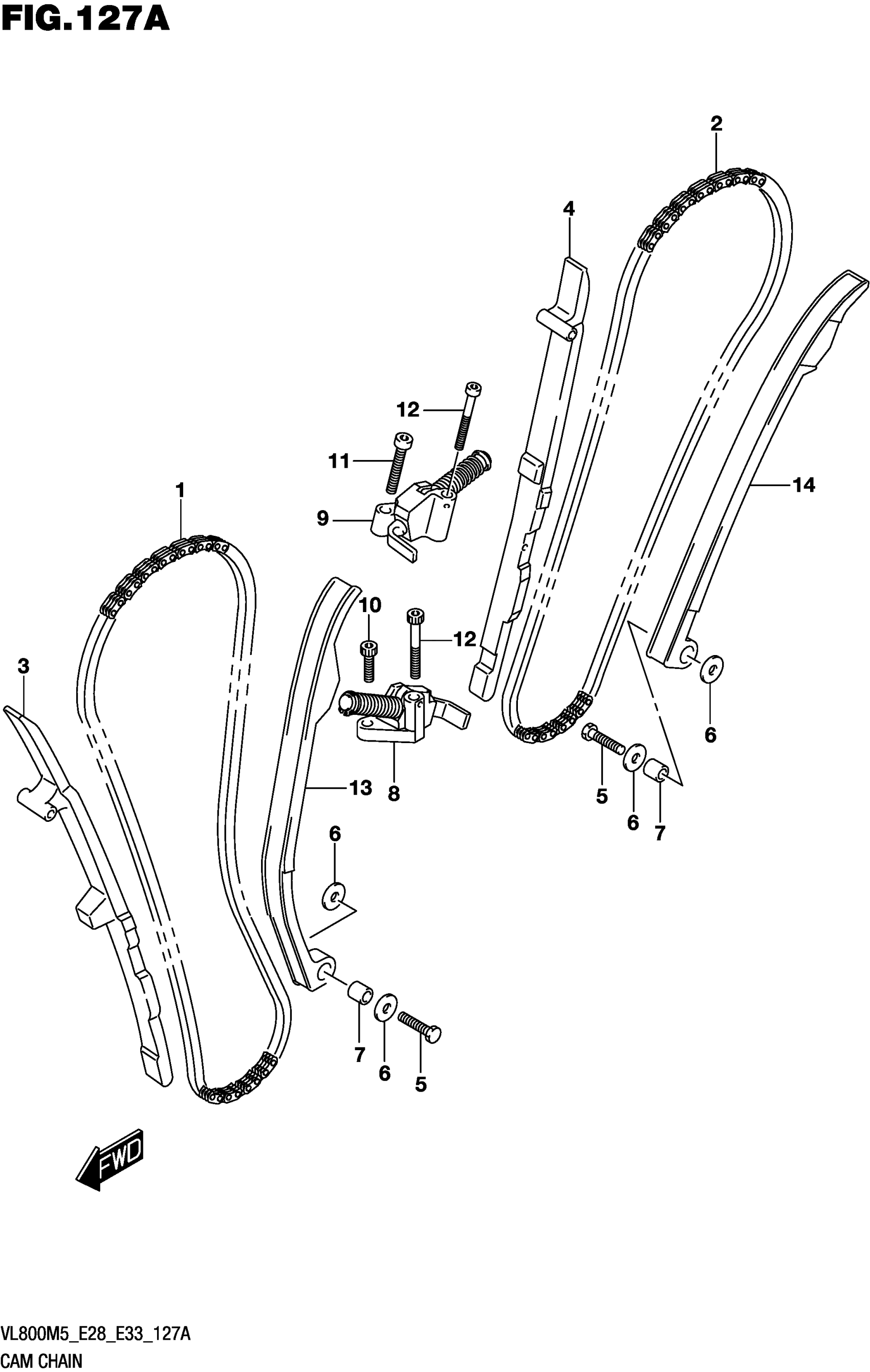

Find the part on the CAM Chain diagram for your 2025 Suzuki VL800M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki VL800M5 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE FR (DID | CA-0412A SV X 132LE)

12760-41F01

1
Out of stock

2

CHAIN,CAMSHAFT DRIVE REAR (DI | SCA-0412A SV X 128LE)

12760-38A21

1
Out of stock

3

GUIDE,CAM CHAIN FRONT

12772-41F01

1
Out of stock

4

GUIDE,CAM CHAIN REAR

12771-41F01

1
Out of stock

5

BOLT (6X26)

09100-06129

2
Out of stock

6

WASHER

08211-06182

4

$2.08

In stock

7

SPACER (6X11X11)

09180-06148

2
Out of stock

8

ADJUSTER ASSY,FRONT TENSIONER

12831-38A01

1
Out of stock

9

ADJUSTER ASSY,TENSIONER REAR

12832-41F01

1
Out of stock

10

BOLT

07130-0620A

1
Out of stock

11

BOLT

07130-0630A

1
Out of stock

12

BOLT

07130-0645A

2
Out of stock

13

TENSIONER,CAM CHAIN FRONT

12811-41F01

1
Out of stock

14

TENSIONER,REAR CAM CHAIN

12816-38A01

1
Out of stock
