2023 Suzuki VL800M3 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2023 Suzuki VL800M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

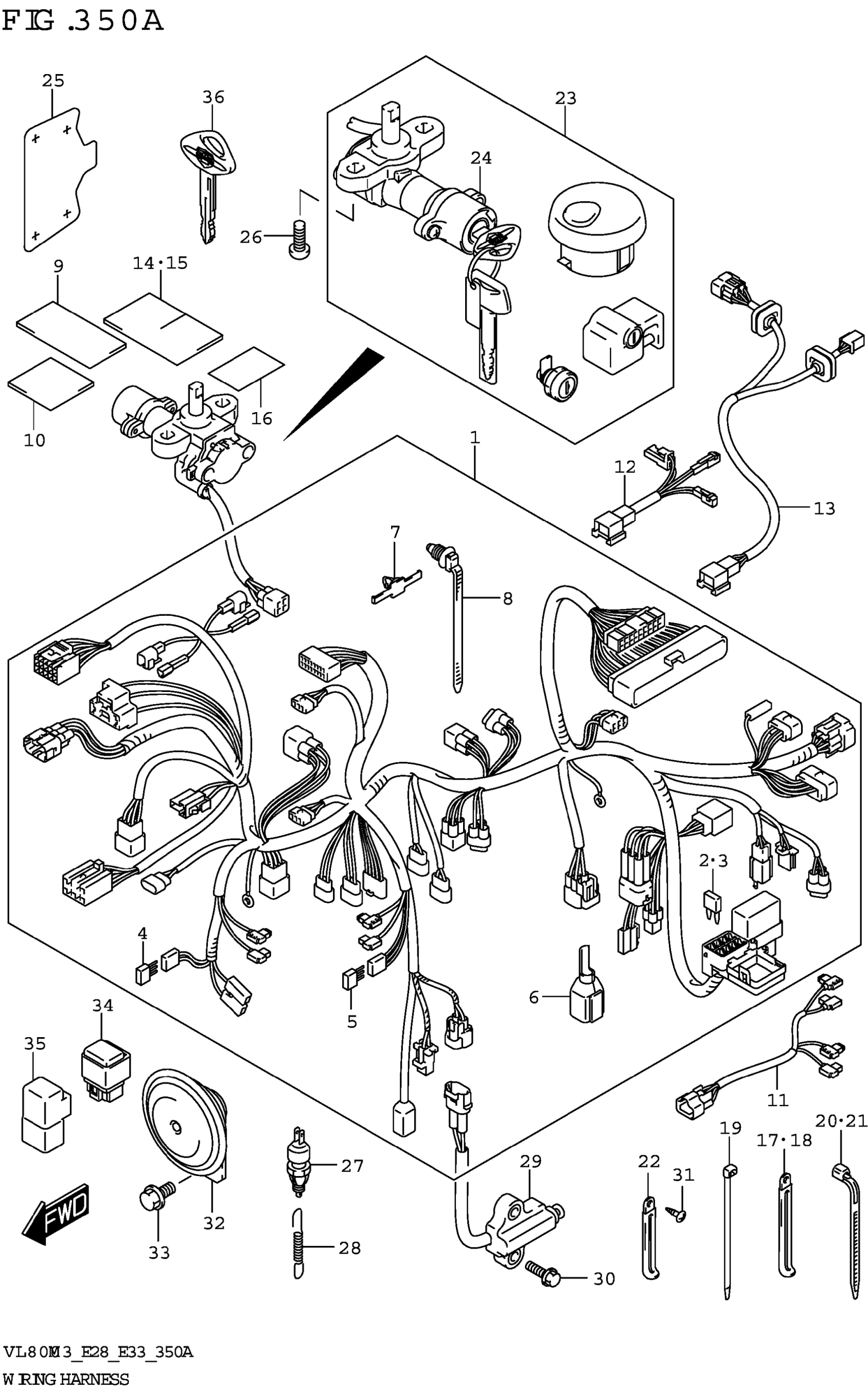

2023 Suzuki VL800M3 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-43H70

1

$769.55

In stock

2

.FUSE (10A)

09481-10501

5
Out of stock

3

.FUSE (20A)

09481-20501

1
Out of stock

4

.RECTIFIER ASSY

32800-16A00

1
Out of stock

5

.DIODE

36611-38A10

1

$13.49

In stock

6

.BOOT

36717-41F00

1
Out of stock

7

.CLAMP

09407-05410

3
Out of stock

8

CLAMP (L:170)

09407-17403

4
Out of stock

9

TAPE,HARNESS (28X50X0.13)

36611-16G00

2
Out of stock

10

PROTECTOR,WIRING HARNESS (30X | 0X3)

36611-41F00

1
Out of stock

11

1

$40.58

In stock

12

WIRE,REAR COMB NO.2

36856-41F00

1

$41.55

In stock

13

WIRE,RR COMB

36858-41F01

1

$36.85

In stock

14

PROTECTOR,HARNESS (30X50X3)

36920-33C00

1
Out of stock

15

PROTECTOR,HARNESS (30X50X3)

36920-33C00

1
Out of stock

16

1

$5.18

In stock

17

CLAMP (L:80)

09404-06030

—
Out of stock

18

CLAMP (L:135)

09404-06435

1

$4.00

In stock

19

CLAMP (L:145)

09407-14407

4
Out of stock

20

CLAMP (L:165)

09407-18402

1
Out of stock

21

CLAMP (L:190)

09407-19401

1
Out of stock

22

CLAMP (L:45)

09404-06429

1
Out of stock

23

1

$351.32

In stock

24

1

$169.77

In stock

25

PROTECTOR,IGNITION SW

37187-41F10

1

$13.73

In stock

26

BOLT (8X20)

09139-08016

2
Out of stock

27

SWITCH ASSY,STOP LAMP

37740-24A00

1

$18.15

In stock

28

SPRING

09443-06073

1

$3.36

In stock

30

BOLT (6X20)

01550-0620A

2
Out of stock

31

SCREW

03541-0512A

1
Out of stock

32

HORN ASSY

38500-41F30

1

$98.98

In stock

33

BOLT (8X16)

01550-0816A

1
Out of stock

34

1

$71.43

In stock

35

RELAY ASSY

38740-24X50

1
Out of stock

36

1

$56.87

In stock
