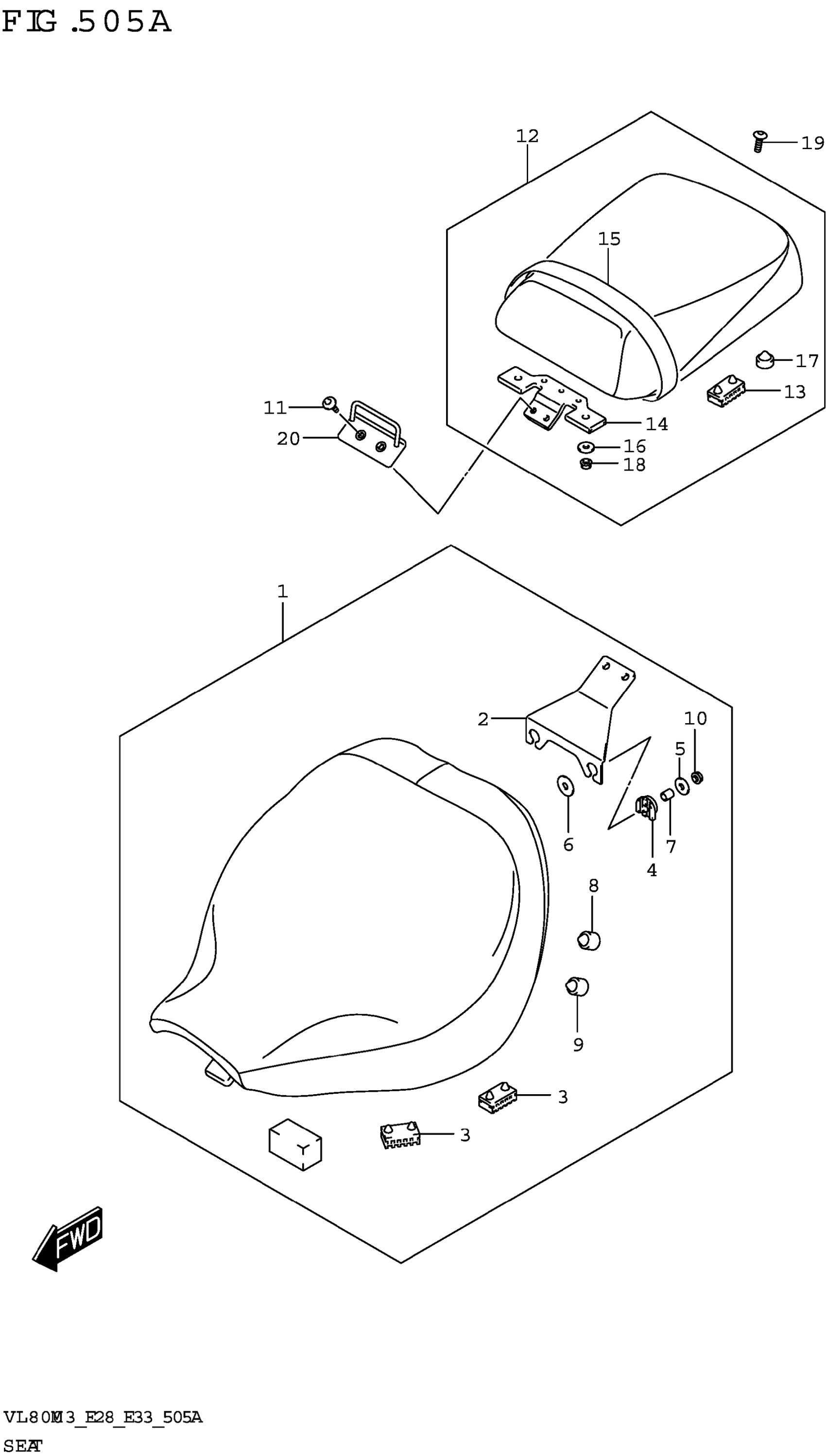

Suzuki VL800M3 (2023) SEAT (VL800) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-43H02-V4Y

$436.12

2

.BRACKET,SEAT

45115-43H00

$41.85

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

4

.CUSHION,SEAT BRACKET

45215-43H00

$24.63

5

.WASHER (6.5X20X1.6)

09160-06066

$1.89

6

.WASHER (6.5X24X1.6)

09160-06501

$1.88

7

SPACER (6.5X10X11)

09180-06288

$2.04

8

.CUSHION (11.5X22X20)

09321-10002

$2.02

9

.CUSHION

09321-10033

$6.75

10

NUT (6X12)

08316-1006A

$2.19

11

BOLT (6X18)

09106-06064

$5.43

12

SEAT ASSY,PILLION (BLACK)

45300-43H01-V4Y

$291.93

13

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

14

.BRACKET,PILLION SEAT

45330-43H00

$63.72

15

.BAND,SEAT PILLION (BLACK)

45380-43H01-V4Y

$9.53

16

.WASHER (6.5X20X1.6)

09160-06088

$1.67

17

.CUSHION (11.5X22X20)

09321-10002

$2.02

18

NUT (6X12)

08316-1006A

$2.19

19

BOLT (8X16)

09106-08140

$5.75

20

BRACKET,SEAT SUPPORT

45210-43H00

$23.64
