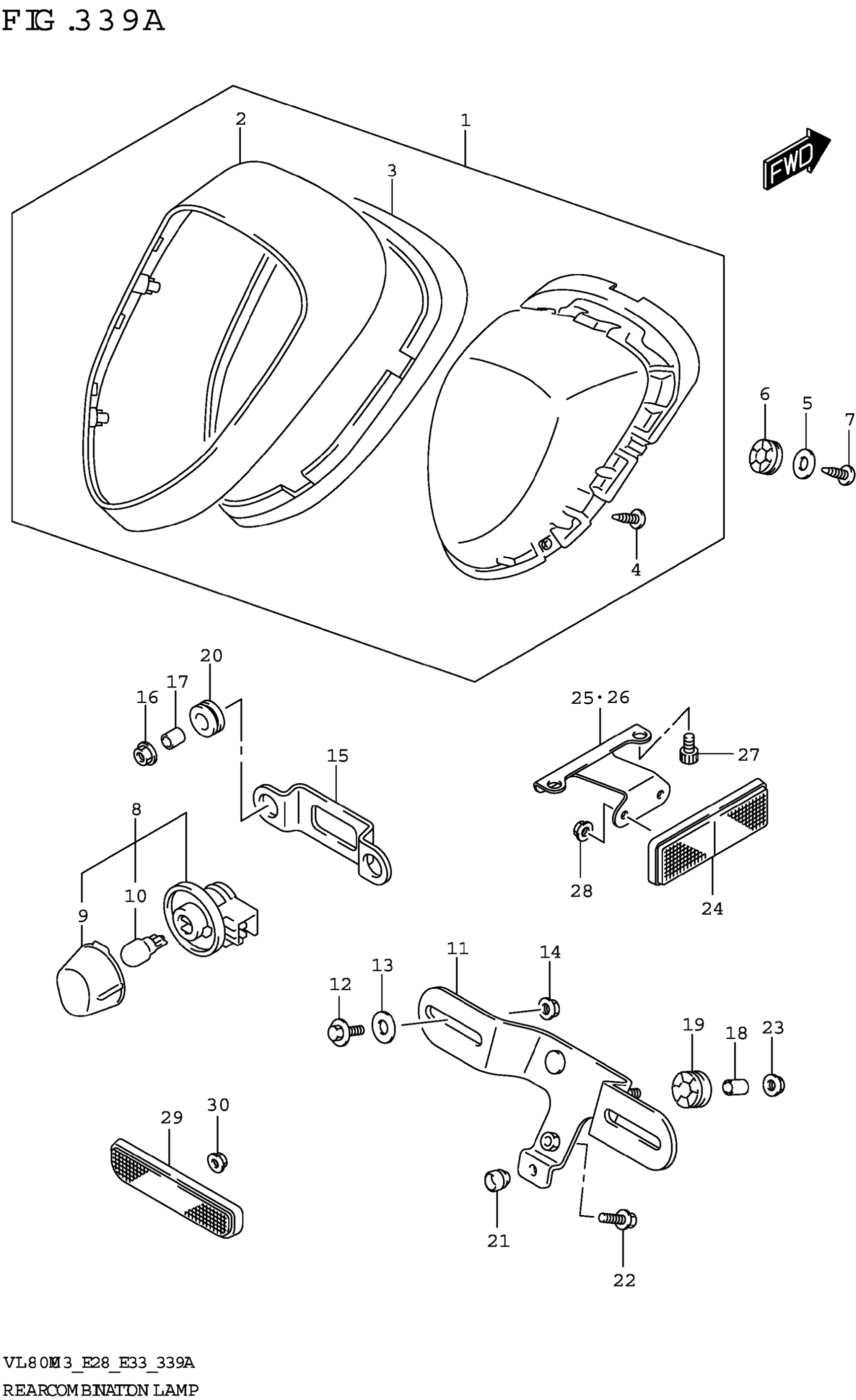

Find the part on the Rear Combination Lamp diagram for your 2023 Suzuki VL800M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki VL800M3 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$558.78

In stock

2

.COVER

35717-43H00

1
Out of stock

3

.RUBBER

35713-43H00

1
Out of stock

4

.SCREW (3X12)

35623-41400

6
Out of stock

5

WASHER (5.5X20X1.2)

09160-05501

3

$2.02

In stock

6

CUSHION,REAR COMB

35765-43H00

3
Out of stock

7

SCREW

03541-0512A

3
Out of stock

8

LAMP ASSY,LICENSE

35910-14F01

1

$34.10

In stock

9

.LENS

35912-14F11

1

$9.35

In stock

10

.BULB (12V5W)

09471-12216

1
Out of stock

11

BRACKET,LICENSE PLATE

35927-43H30

1

$30.70

In stock

12

BOLT (6X16)

09116-06168

2

$2.68

In stock

13

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

14

NUT (6X12)

08316-1006A

2
Out of stock

15

BRACKET,LICENSE LAMP

35928-43H00

1

$12.93

In stock

16

NUT

09159-05049

2

$2.50

In stock

17

SPACER (5.5X9.5X11.5)

09180-05054

2
Out of stock

18

SPACER (6.5X10X12)

09180-06290

3
Out of stock

19

CUSHION

09320-10051

3

$3.03

In stock

20

CUSHION

09320-10073

2
Out of stock

21

CUSHION

09321-06036

1
Out of stock

22

BOLT (6X25)

01550-0625A

1
Out of stock

23

NUT (6X12)

08316-1006A

2
Out of stock

24

REFLECTOR ASSY,RR

35970-07F01

2
Out of stock

25

BRACKET,REAR SIDE RR RH

35975-43H00

1
Out of stock

26

BRACKET,REAR SIDE RR LH

35976-43H00

1
Out of stock

27

BOLT

07130-0612A

4
Out of stock

28

NUT

08316-1005A

2
Out of stock

29

REFLECTOR ASSY,REAR

35970-05H00

1

$33.12

In stock

30

NUT

08316-1005A

2
Out of stock
