2023 Suzuki VL800M3 Front Fork Damper Diagram

← All diagrams

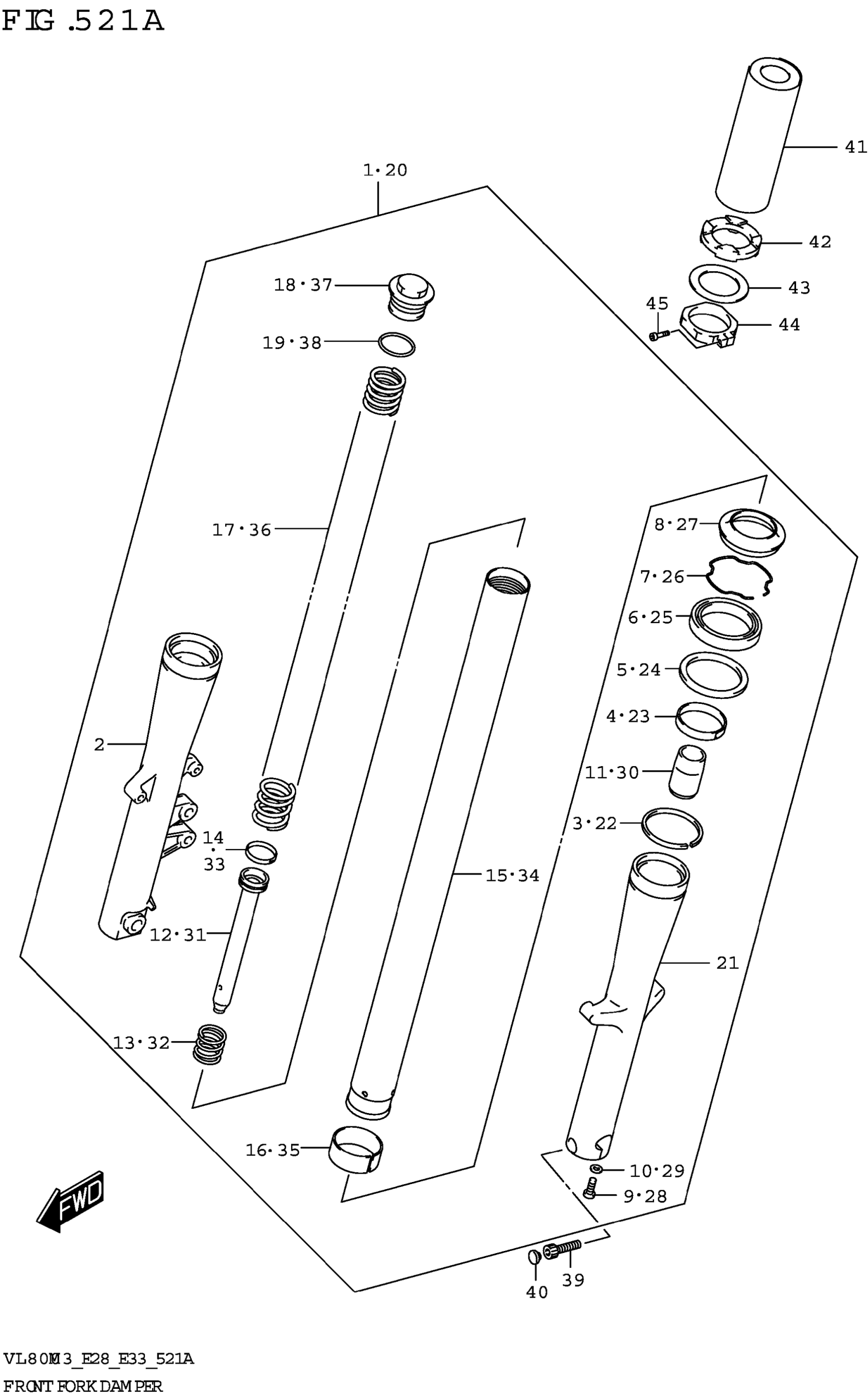

Find the part on the Front Fork Damper diagram for your 2023 Suzuki VL800M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki VL800M3 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER FRONT,RH

51103-41F41

1
Out of stock

2

.TUBE,OUTER,R

51131-41F20

1
Out of stock

3

.GUIDE,CASE

51469-41F21

1
Out of stock

4

.BUSH,GUIDE

51152-11D60

1
Out of stock

5

.SPACER,SEAL

51168-38B00

1
Out of stock

6

.SEAL,OIL

51153-08D00

1
Out of stock

7

.RING,STOPPER

51556-38B00

1
Out of stock

8

.SEAL,DUST

51571-47D50

1
Out of stock

9

.BOLT (8X18)

51147-06F10

1
Out of stock

10

.GASKET (8.2X13X1.5)

51148-36011

1
Out of stock

11

.PIECE,OIL LOCK

51195-10F00

1
Out of stock

12

.SEAT,PIPE

51146-10F00

1
Out of stock

13

.SPRING,REBOUND

51177-10F00

1
Out of stock

14

.RING,PISTON

51196-47D00

1
Out of stock

15

.TUBE,INNER

51110-41F40

1
Out of stock

16

.BUSH,SLIDE

51121-42E00

1
Out of stock

17

.SPRING,FRONT

51171-41F40

1
Out of stock

18

.BOLT,FORK

51189-38C00

1
Out of stock

19

.O-RING

51117-12C00

1
Out of stock

20

DAMPER FRONT,LH

51104-41F41

1
Out of stock

21

.TUBE,OUTER,L

51141-41F20

1
Out of stock

22

.GUIDE,CASE

51469-41F21

1
Out of stock

23

.BUSH,GUIDE

51152-11D60

1
Out of stock

24

.SPACER,SEAL

51168-38B00

1
Out of stock

25

.SEAL,OIL

51153-08D00

1
Out of stock

26

.RING,STOPPER

51556-38B00

1
Out of stock

27

.SEAL,DUST

51571-47D50

1
Out of stock

28

.BOLT (8X18)

51147-06F10

1
Out of stock

29

.GASKET (8.2X13X1.5)

51148-36011

1
Out of stock

30

.PIECE,OIL LOCK

51195-10F00

1
Out of stock

31

.SEAT,PIPE

51146-10F00

1
Out of stock

32

.SPRING,REBOUND

51177-10F00

1
Out of stock

33

.RING,PISTON

51196-47D00

1
Out of stock

34

.TUBE,INNER

51110-41F40

1
Out of stock

35

.BUSH,SLIDE

51121-42E00

1
Out of stock

36

.SPRING,FRONT

51171-41F40

1
Out of stock

37

.BOLT,FORK

51189-38C00

1
Out of stock

38

.O-RING

51117-12C00

1
Out of stock

39

BOLT

07130-10357

1
Out of stock

40

CAP (OD:12)

09250-08014

1
Out of stock

41

CASE,UNDER

51464-41F21

2
Out of stock

42

SEAT,RUBBER

51468-10F00

4
Out of stock

43

WASHER

51467-10F70

2
Out of stock

44

SPACER

51465-41F20

2
Out of stock

45

BOLT

51466-10F00

2
Out of stock
