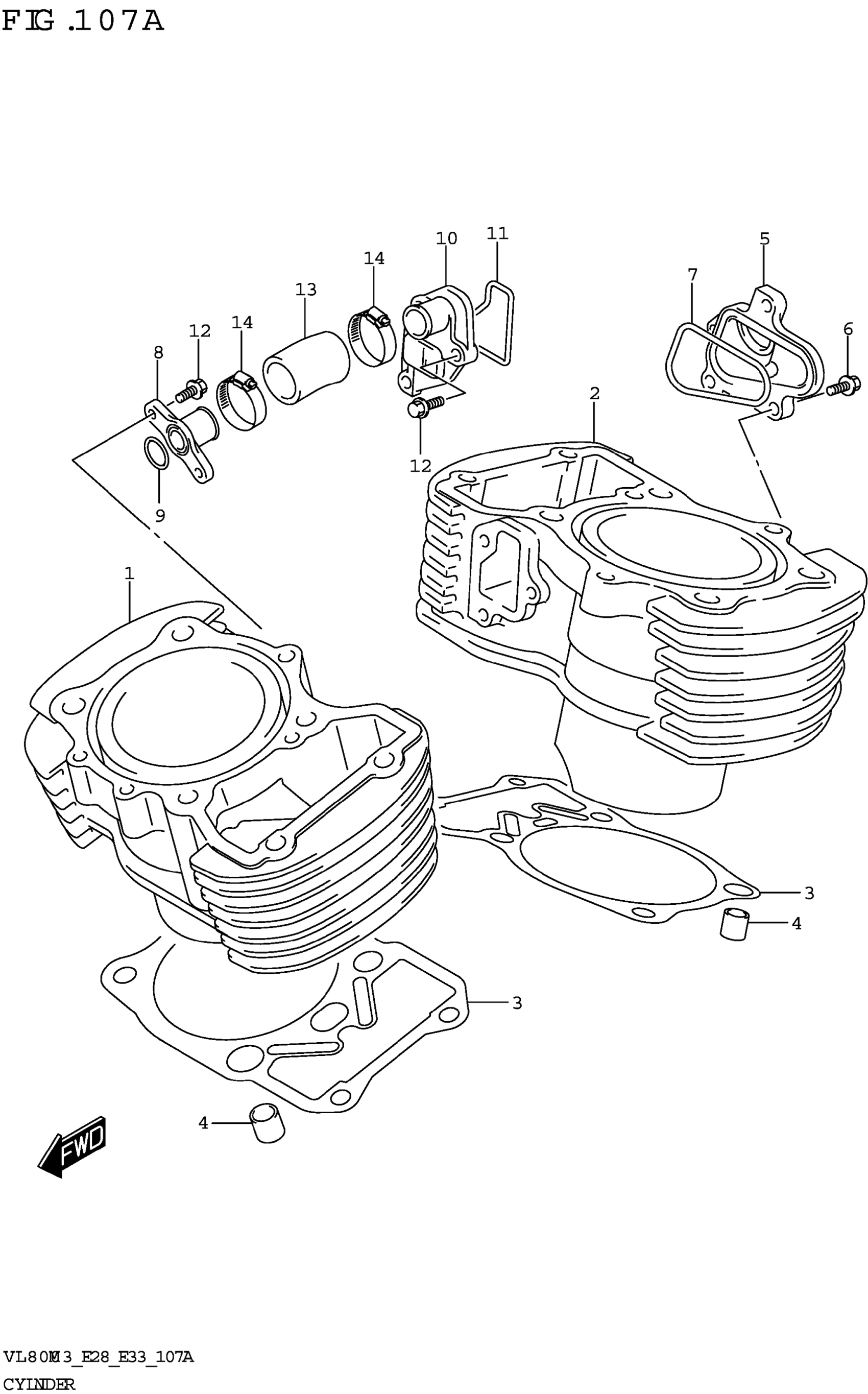

Suzuki VL800M3 (2023) CYLINDER Diagram

#

Description
Price

1

CYLINDER,FRONT

11210-39G00-0F0

$506.31

2

CYLINDER,REAR

11220-39G00-0F0

$920.55

3

.GASKET,CYLINDER

11241-39G00

$16.30

4

PIN (10.4X13X18)

04211-13189

$2.19

5

CONNECTOR,CYL INLET PIPE

11237-41F00

$50.20

6

BOLT

01547-0620A

$2.01

7

O-RING,INLET WATER CHAMBER

11247-38A00

$3.35

8

UNION,CYL INLET

11235-41F00

$28.80

9

O-RING (D:2.4,ID:15.8)

09280-16005

$2.24

10

UNION,CYL OUTLET

17892-41F00

$36.22

11

O-RING,CYL OUTLET UNION

17899-41F00

$8.17

12

BOLT

01547-0616A

$2.01

13

HOSE,CYL JOINT

17853-38A10

$5.83

14

CLAMP

09402-28513

$6.31
