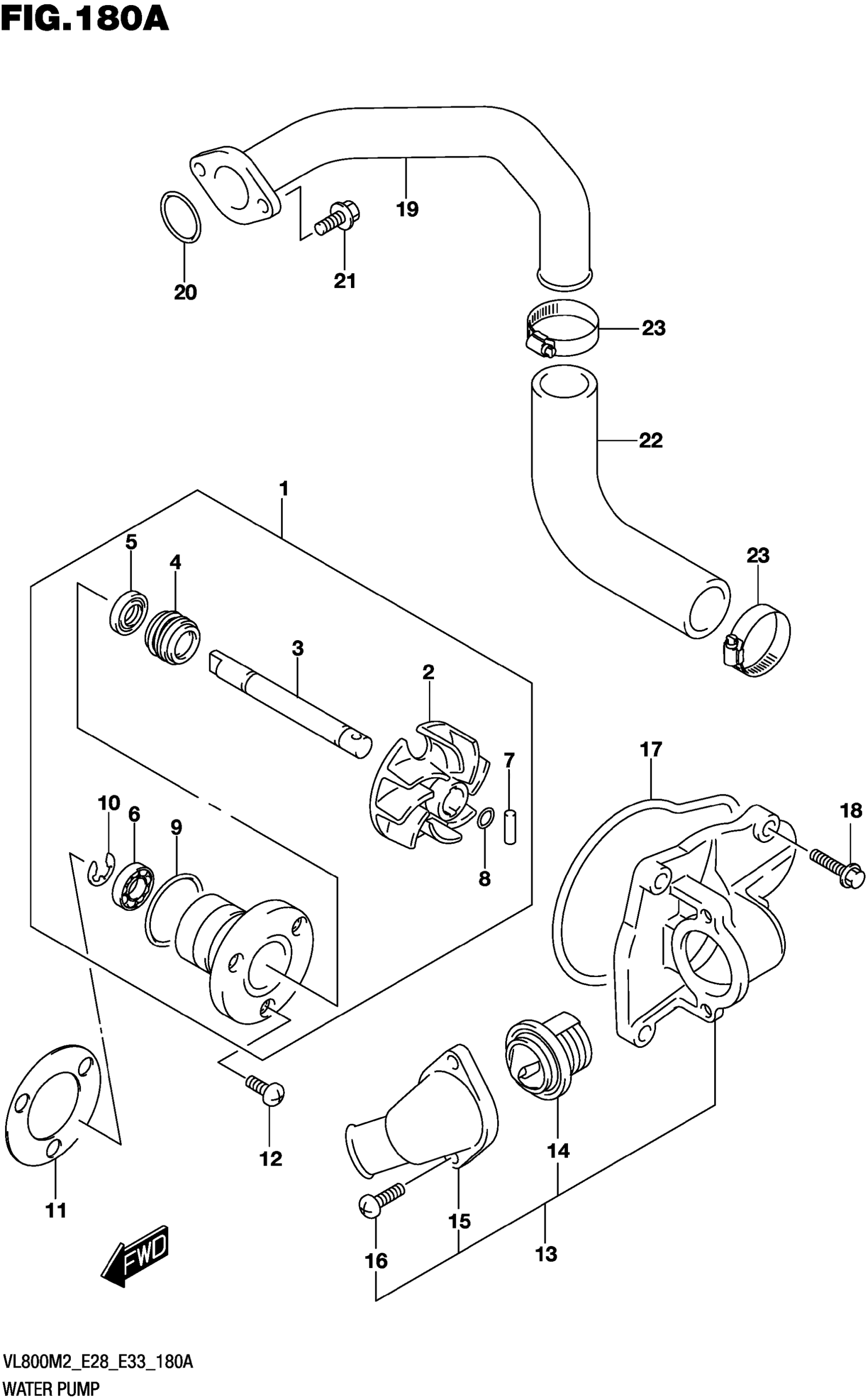

Suzuki VL800M2 (2022) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-38A11

$150.14

2

.IMPELLER

17491-38A00

$31.55

3

.SHAFT

17511-38A00

Unavailable

4

.SEAL,MECHANICAL

17470-02F11

$26.75

5

.SEAL OIL (10X21X5)

09283-10004

$4.47

6

.BEARING (10X22X6)

09262-10004

$35.53

7

.PIN

17516-38A00

Unavailable

8

.O-RING

17515-38A00

$2.17

9

.O RING

17417-38A01

$3.65

10

.E-RING

08332-1108A

$1.77

11

GASKET,WATER PUMP

17431-38A10

$5.63

12

SCREW

02112-0612A

$1.43

13

CAP ASSY,WATER PUMP

17410-41F31

$115.72

14

THERMOSTAT WATER

17670-33401

$32.59

15

.CONNECTOR

17412-41F00

Unavailable

16

.SCREW

02112-0616A

$1.43

17

O-RING,WATER PUMP CAP

17435-38A00

$5.91

18

BOLT

01547-0616A

$2.01

19

PIPE,CYL INLET

17890-41F00

Unavailable

20

O-RING (D:2.3,ID:24.4)

09280-24007

$1.89

21

BOLT

01547-0616A

$2.01

22

HOSE,WATER PUMP OUTLET

17858-38A10

Unavailable

23

CLAMP

09402-32512

$13.97
