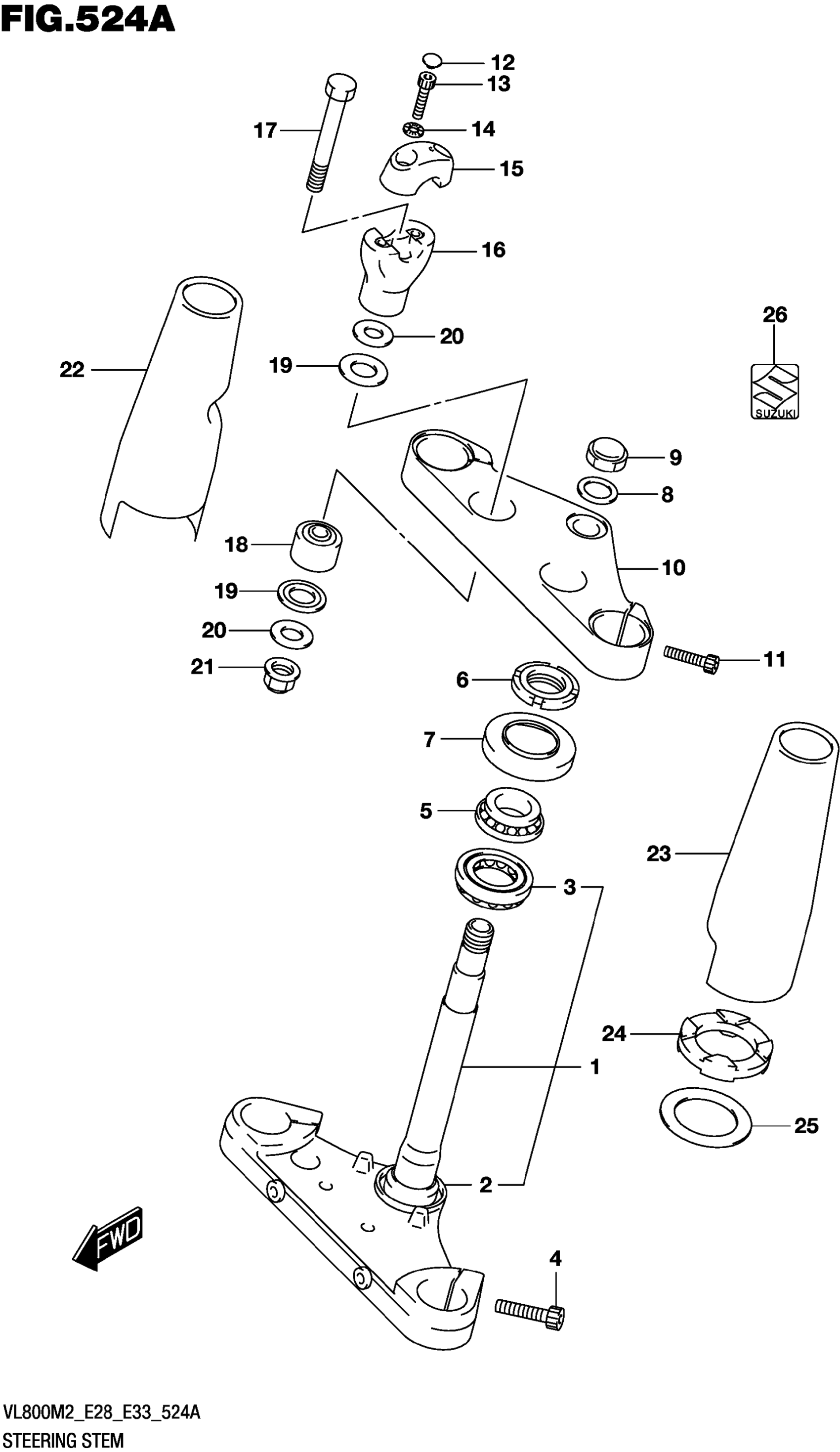

Suzuki VL800M2 (2022) STEERING STEM Diagram

#

Description
Price

1

STEM,STEERING

51410-41F50

$641.67

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

3

.BEARING (30X55X17)

09267-30010

$43.41

4

BOLT

07130-1030B

$5.83

5

BEARING (25X47X15)

09267-25009

$56.72

6

NUT,STEERING STEM (25X44X10)

51631-28000

$19.60

7

SEAL,DUST

51643-40503

$5.79

8

WASHER, STEM This part replaces 51354-17D00.

51356-24B01

$7.13

9

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$34.62

10

HEAD,STEERING STEM

51311-41F40

Unavailable

11

BOLT

51321-06G00

$10.35

12

CAP (OD:11)

09250-06011

$2.53

13

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

14

WASHER

09164-08015

$2.90

15

HOLDER,HANDLE,UPPER

56211-41F20

$87.95

16

HOLDER,HANDLE,UNDER

56221-41F20

$145.47

17

BOLT

51226-41F20

$40.53

18

DAMPER,RUBBER

56240-41F20

$46.13

19

SEAT,RUBBER

56245-41F20

$9.17

20

WASHER

51354-41F20

$9.98

21

NUT

56246-41F20

$14.22

22

COVER,UPPER,R

51530-41F20

$311.37

23

COVER,UPPER,L

51540-41F20

$311.37

24

SEAT,RUBBER

51468-10F00

$24.63

25

WASHER

51467-10F00

$14.27

26

EMBLEM,S

68281-47HA0

$7.11
