2022 Suzuki VL800M2 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2022 Suzuki VL800M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

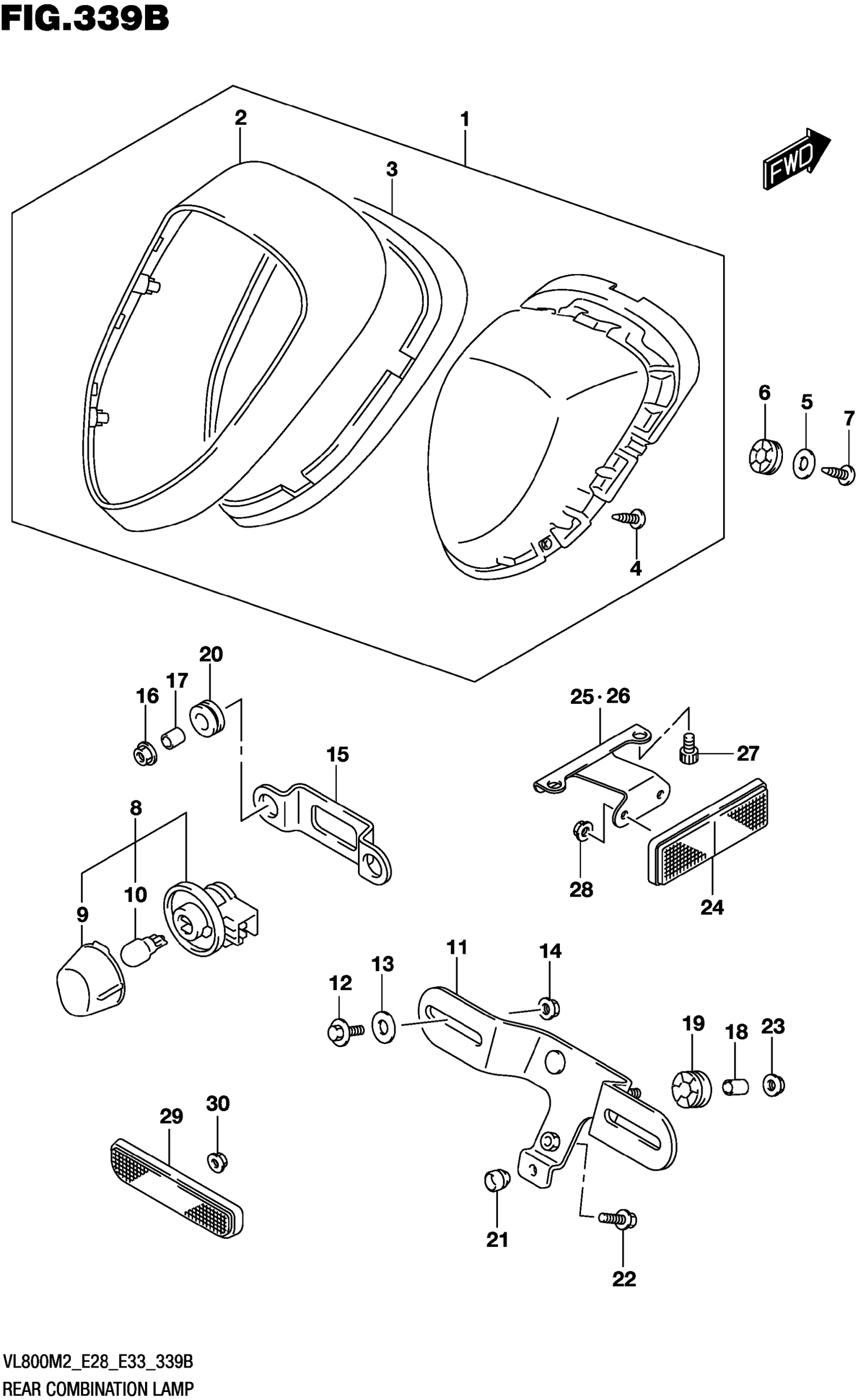

2022 Suzuki VL800M2 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,REAR This part replaces 35710-43H00.

35710-43HC0

1
Out of stock

2

.COVER

35717-43H00

1
Out of stock

3

.RUBBER

35713-43H00

1
Out of stock

4

.SCREW (3X12)

35623-41400

6
Out of stock

5

WASHER (5.5X20X1.2)

09160-05501

3
Out of stock

6

CUSHION,REAR COMB

35765-43H00

3
Out of stock

7

SCREW

03541-0512A

3
Out of stock

8

LAMP ASSY,LICENSE

35910-14F01

1
Out of stock

9

.LENS

35912-14F11

1
Out of stock

10

.BULB (12V5W)

09471-12216

1
Out of stock

11

BRACKET,LICENSE PLATE

35927-43H30

1
Out of stock

12

BOLT (6X16)

09116-06168

2
Out of stock

13

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

14

NUT (6X12)

08316-1006A

2
Out of stock

15

BRACKET,LICENSE LAMP

35928-43H00

1
Out of stock

16

NUT

09159-05049

2
Out of stock

17

SPACER (5.5X9.5X11.5)

09180-05054

2
Out of stock

18

SPACER (6.5X10X12)

09180-06290

3
Out of stock

19

CUSHION

09320-10051

3
Out of stock

20

CUSHION

09320-10073

2
Out of stock

21

CUSHION

09321-06036

1
Out of stock

22

BOLT (6X25)

01550-0625A

1
Out of stock

23

NUT (6X12)

08316-1006A

2
Out of stock

24

REFLECTOR ASSY,RR

35970-07F01

2
Out of stock

25

BRACKET,REAR SIDE RR RH

35975-43H00

1
Out of stock

26

BRACKET,REAR SIDE RR LH

35976-43H00

1
Out of stock

27

BOLT

07130-0612A

4
Out of stock

28

NUT

08316-1005A

2
Out of stock

29

REFLECTOR ASSY,REAR

35970-05H00

1
Out of stock

30

NUT

08316-1005A

2
Out of stock
