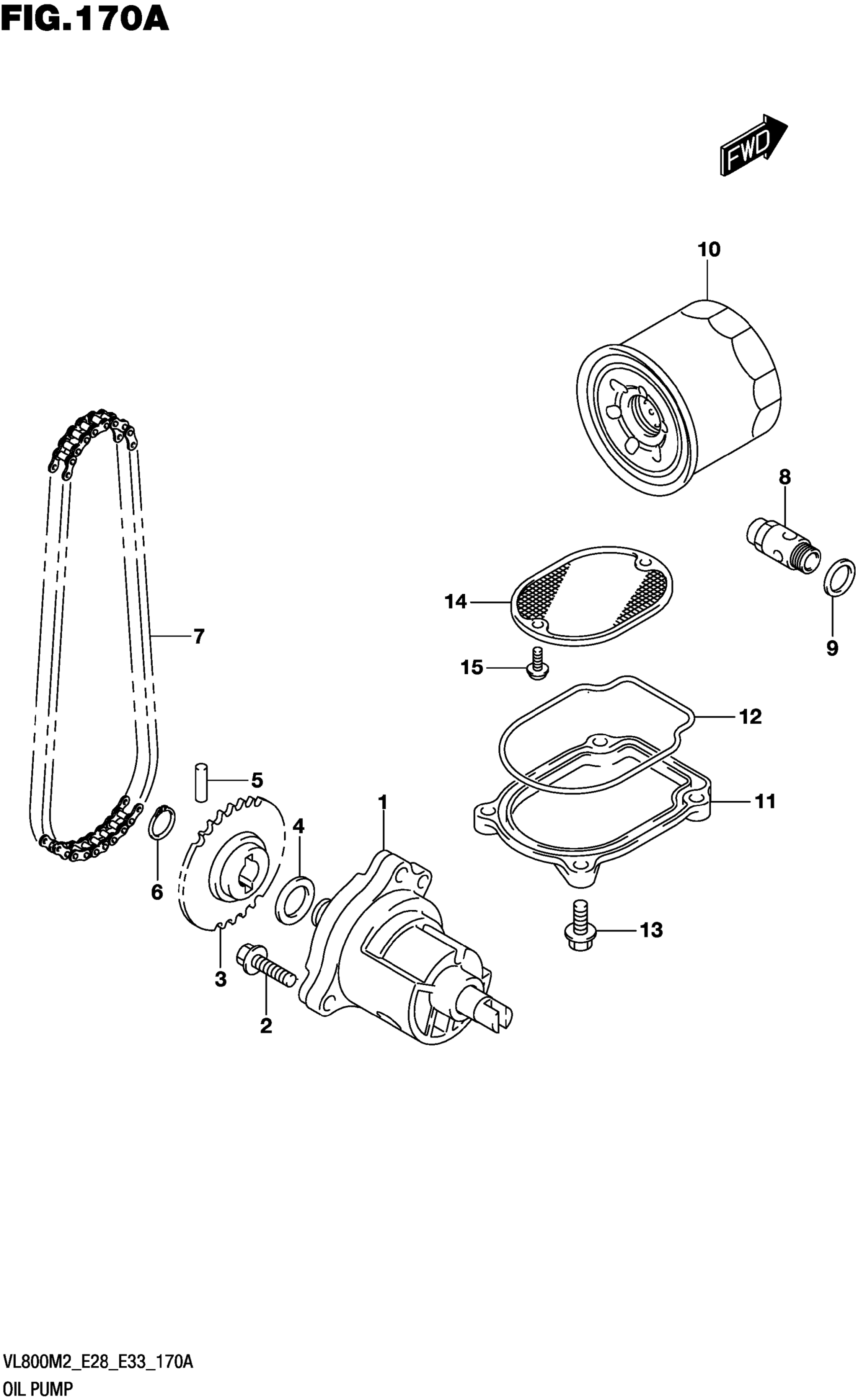

Suzuki VL800M2 (2022) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENGINE OIL

16400-38A01

$250.27

2

BOLT

01547-0625A

$2.01

3

SPROCKET,OIL PUMP DRIVEN (NT:

16331-38A10

Unavailable

4

SHIM (12X20X0.5)

09181-12158

$2.24

5

PIN (5X18)

09261-05006

$1.46

6

CIRCLIP

08331-3112A

$1.77

7

CHAIN ASSY,OIL PUMP DRIVE (DI

16310-38A00

$38.30

8

VALVE ASSY,OIL RELIEF

16440-17C20

$71.63

9

GASKET (16X22X2)

09168-16002

$1.89

10

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

11

CAP,OIL STRAINER

16523-38A00

$35.78

12

.O-RING,OIL STRAINER CAP

16528-38A00

$13.27

13

BOLT

01547-0620A

$2.01

14

STRAINER,ENG OIL

16520-38A10

$9.70

15

SCREW

02112-7512A

$2.43
