Description

Price

1

HOSE,TANK & BRTHR VALVE

44434-39G20

$26.12

2

CLIP (ID:11,H:8)

09401-11413

$2.24

3

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

5

CUSHION (10X30X2)

44894-24A00

$1.78

6

SCREW

02142-0408A

$1.68

7

HOSE,BRTHR VALVE & CSTR

44435-39G20

$20.30

8

CLIP (ID:11,H:8)

09401-11413

$2.24

9

CANISTER SET

17200-17H01

$263.92

10

CLIP (ID:12)

09401-12404

$2.37

11

CAP (OD:11.5)

09251-07003

$2.77

12

BRACKET,FI CONT UNIT

44880-43H00

Unavailable

13

SCREW (6X12)

09139-06108

Unavailable

14

HOLDER,CANISTER

44882-26E00

Unavailable

15

SCREW

02142-0610A

$1.38

16

CUSHION CANISTER

44883-26E00

Unavailable

17

HOSE,CSTR PURGE

44436-43H10

$24.90

18

CLIP (ID:11,H:8)

09401-11413

$2.24

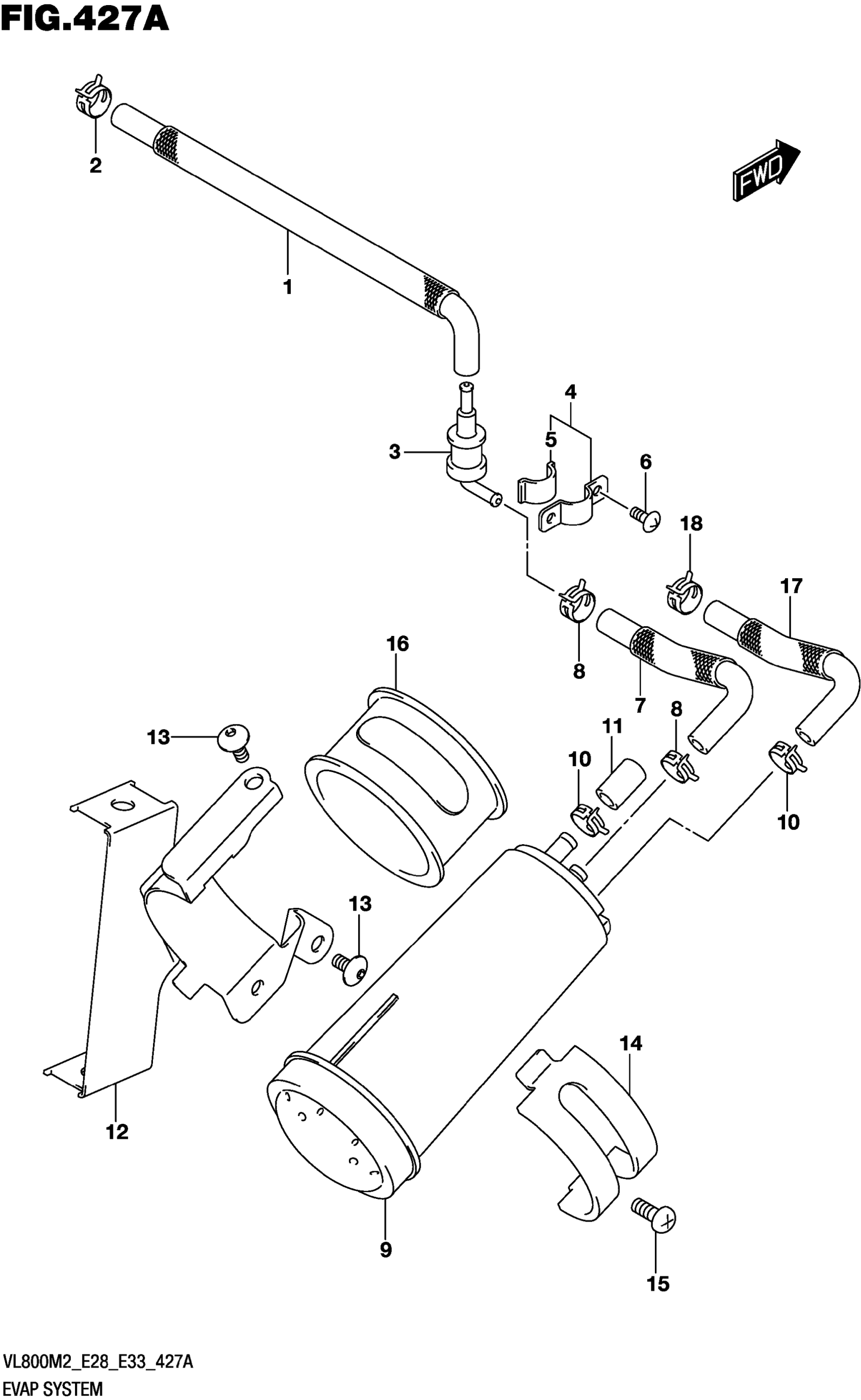

Suzuki VL800M2 (2022) EVAP SYSTEM Diagram

HOSE,TANK & BRTHR VALVE

CLIP (ID:11,H:8)

VALVE FUEL TANK BREATHER

PLATE,FUEL TANK BREATHER NO.2

CUSHION (10X30X2)

SCREW

HOSE,BRTHR VALVE & CSTR

CLIP (ID:11,H:8)

CANISTER SET

CLIP (ID:12)

CAP (OD:11.5)

BRACKET,FI CONT UNIT

SCREW (6X12)

HOLDER,CANISTER

SCREW

CUSHION CANISTER

HOSE,CSTR PURGE

CLIP (ID:11,H:8)
