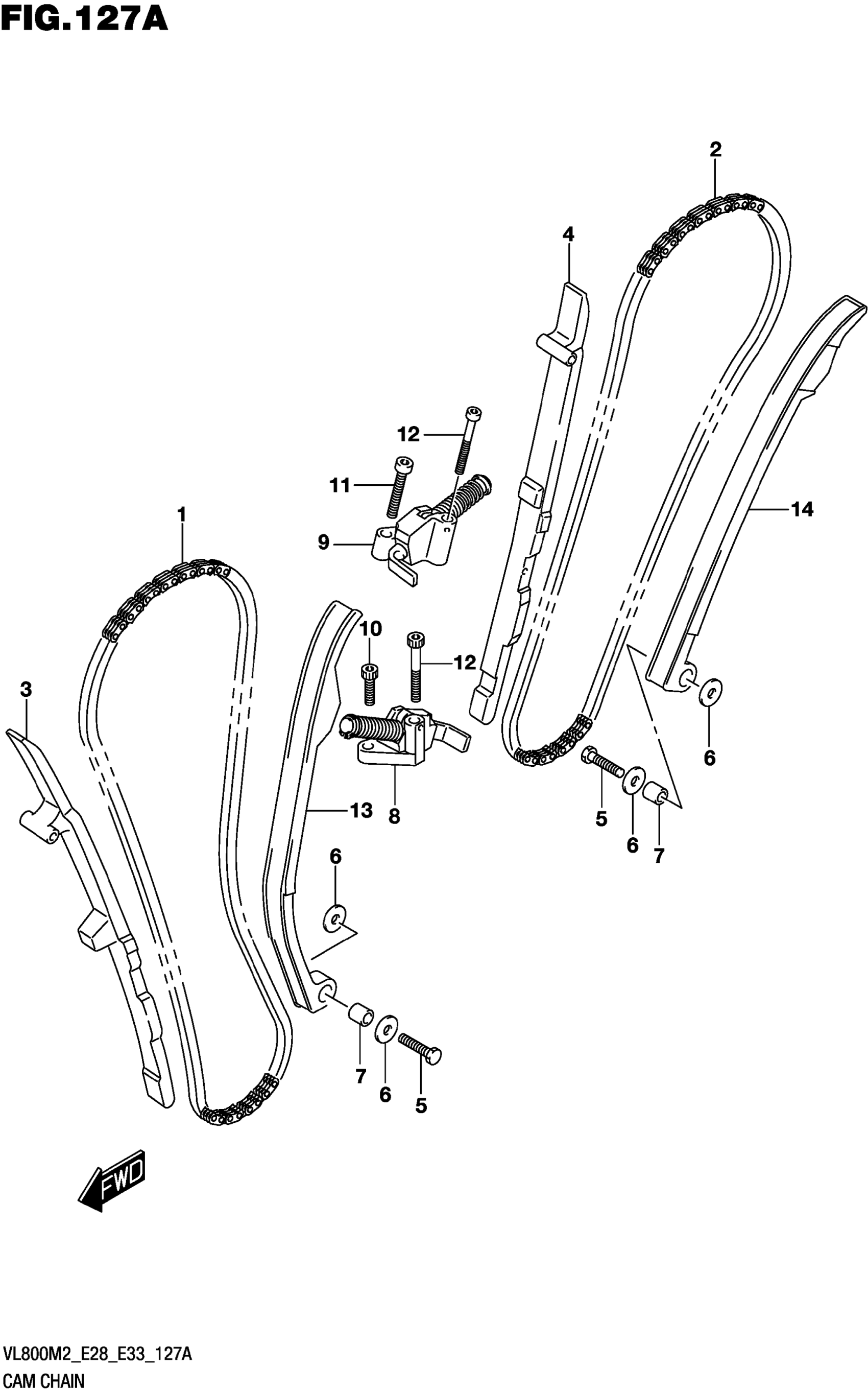

Suzuki VL800M2 (2022) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE FR (DID

12760-41F01

$206.55

2

CHAIN,CAMSHAFT DRIVE REAR (DI

12760-38A21

$208.25

3

GUIDE,CAM CHAIN FRONT

12772-41F01

$49.67

4

GUIDE,CAM CHAIN REAR

12771-41F01

$50.68

5

BOLT (6X26)

09100-06129

$2.58

6

WASHER

08211-06182

$2.08

7

SPACER (6X11X11)

09180-06148

Unavailable

8

ADJUSTER ASSY,FRONT TENSIONER

12831-38A01

$168.88

9

ADJUSTER ASSY,TENSIONER REAR

12832-41F01

$168.88

10

BOLT

07130-0620A

$2.50

11

BOLT

07130-0630A

$4.03

12

BOLT

07130-0645A

Unavailable

13

TENSIONER,CAM CHAIN FRONT

12811-41F01

$51.30

14

TENSIONER,REAR CAM CHAIN

12816-38A01

$68.80
