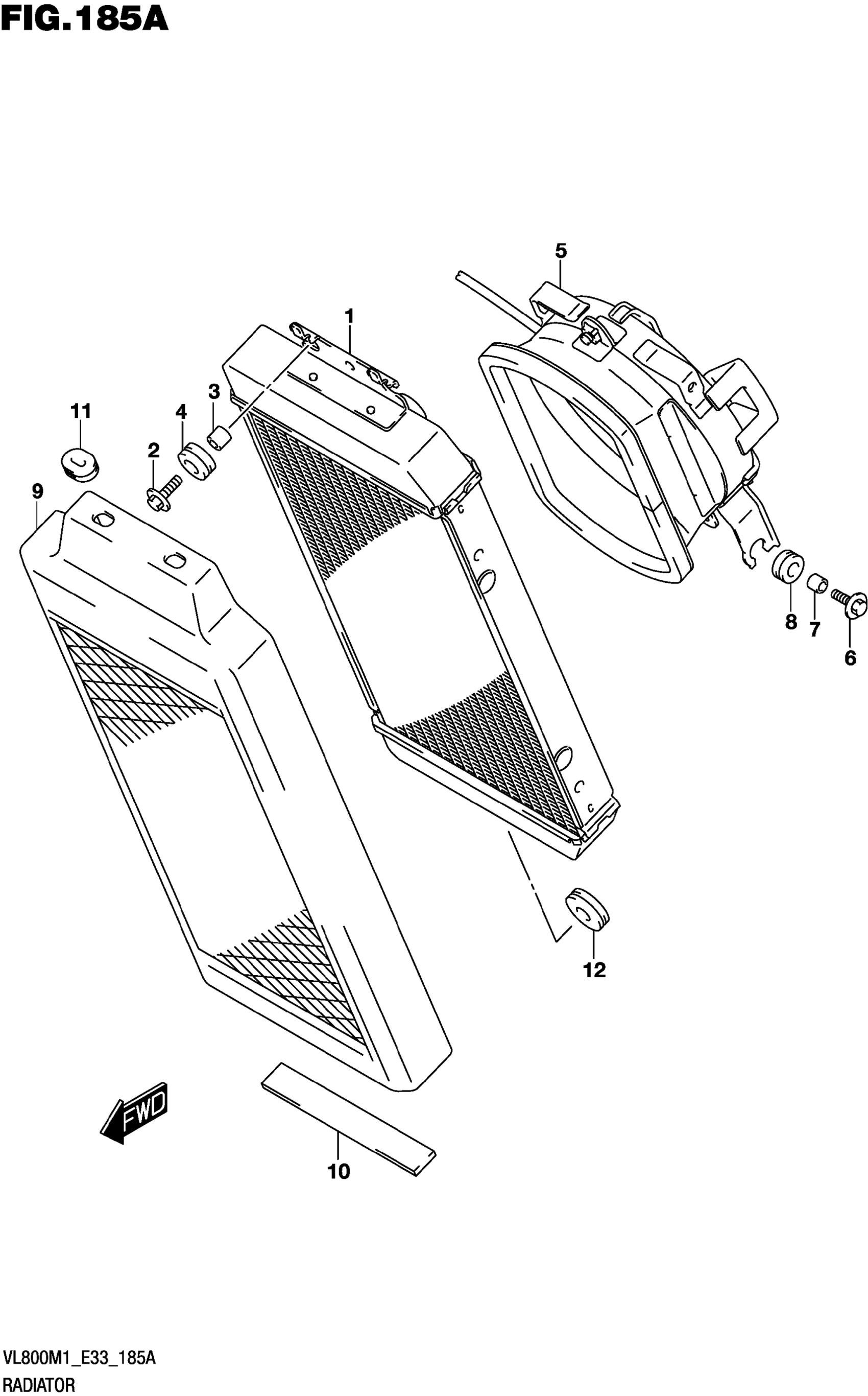

Suzuki VL800M1 (2021) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY,WATER

17710-41F20

$1,244.93

2

BOLT (6X20)

09116-06201

$2.97

3

SPACER (6.5X10X10)

09180-06310

$1.92

4

CUSHION

09320-10501

$4.85

5

FAN ASSY,RADIATOR

17800-41F20

$769.25

6

BOLT (6X20)

09116-06201

$2.97

7

SPACER (6.5X10X10)

09180-06310

$1.92

8

CUSHION

09320-10055

$4.12

9

COVER,RDTR

17760-41F00

$60.03

10

CUSHION,RDTR COVER INNER

17798-39G00

$6.12

11

CUSHION

09320-03004

$1.68

12

CUSHION (8X26X7)

09320-08514

$2.68
