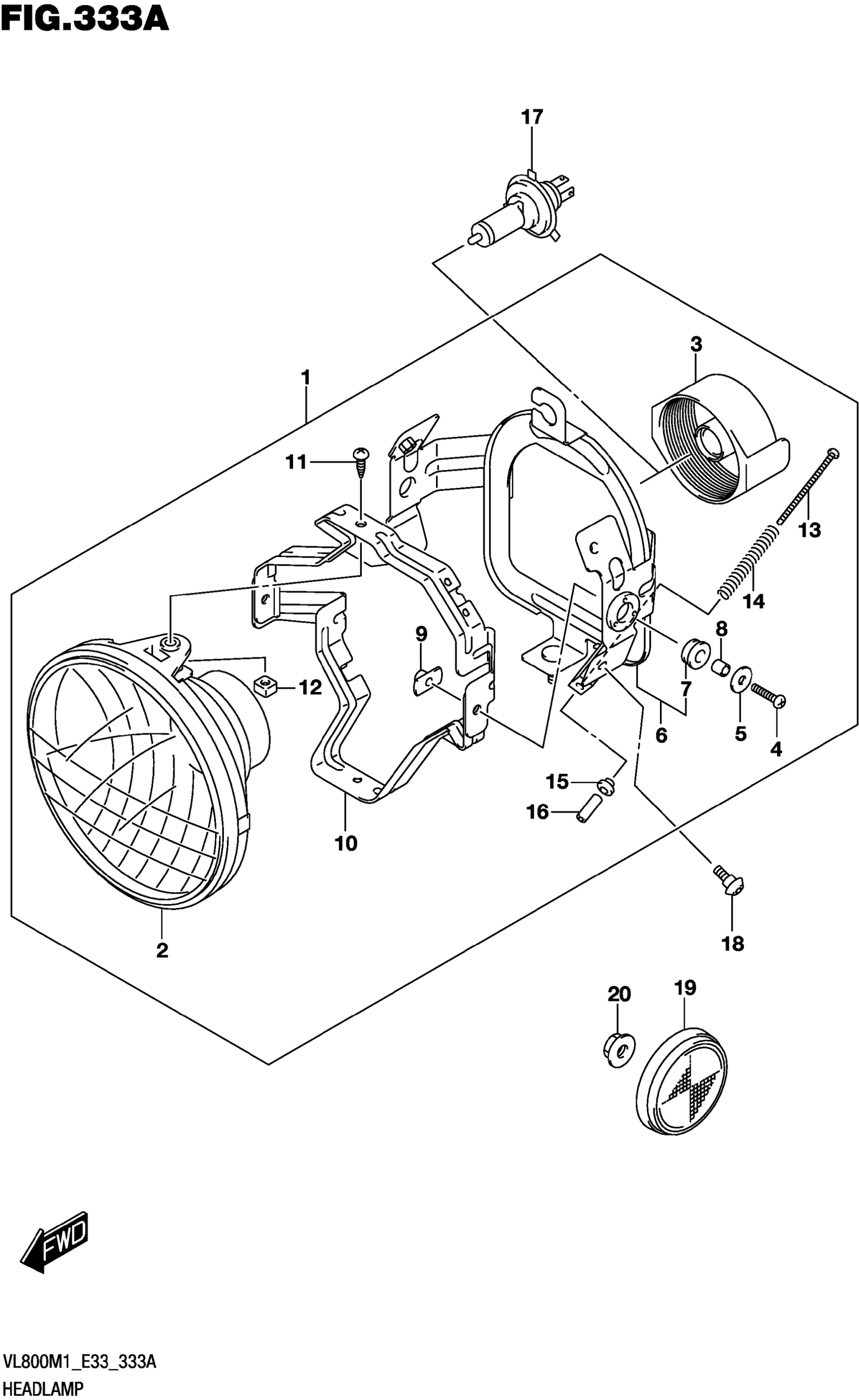

Suzuki VL800M1 (2021) HEADLAMP Diagram

#

Description
Price

1

.HEADLAMP ASSY

35100-06J31-999

$364.77

2

..UNIT

35121-10FB0

$224.25

3

.COVER,SOCKET

35174-19F00

$34.12

4

..SCREW

02122-0520A

$2.47

5

WASHER (5.5X18X1.0)

09160-05045

$1.95

6

..BRACKET

35140-06J02

$146.45

7

...CUSHION

35139-38A60

$4.62

8

..SPACER

35133-45230

$3.72

9

..NUT

35155-10FA0

$6.75

10

..BRACKET

35130-10FA0

Unavailable

11

.SCREW (5X16)

35181-19F00

$3.67

12

.NUT

35135-45900

$3.67

13

..SCREW,ADJUSTER

35151-10FA0

Unavailable

14

..SPRING,ADJUSTER

35154-10FA0

Unavailable

15

.NUT

35152-45600

$3.92

16

..COVER

35158-10FA0

Unavailable

17

.BULB (12V60/55W,H4)

09471-12060

$22.69

18

BOLT (6X12)

09111-06107

$2.66

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

20

NUT

08316-1005B

$2.50
