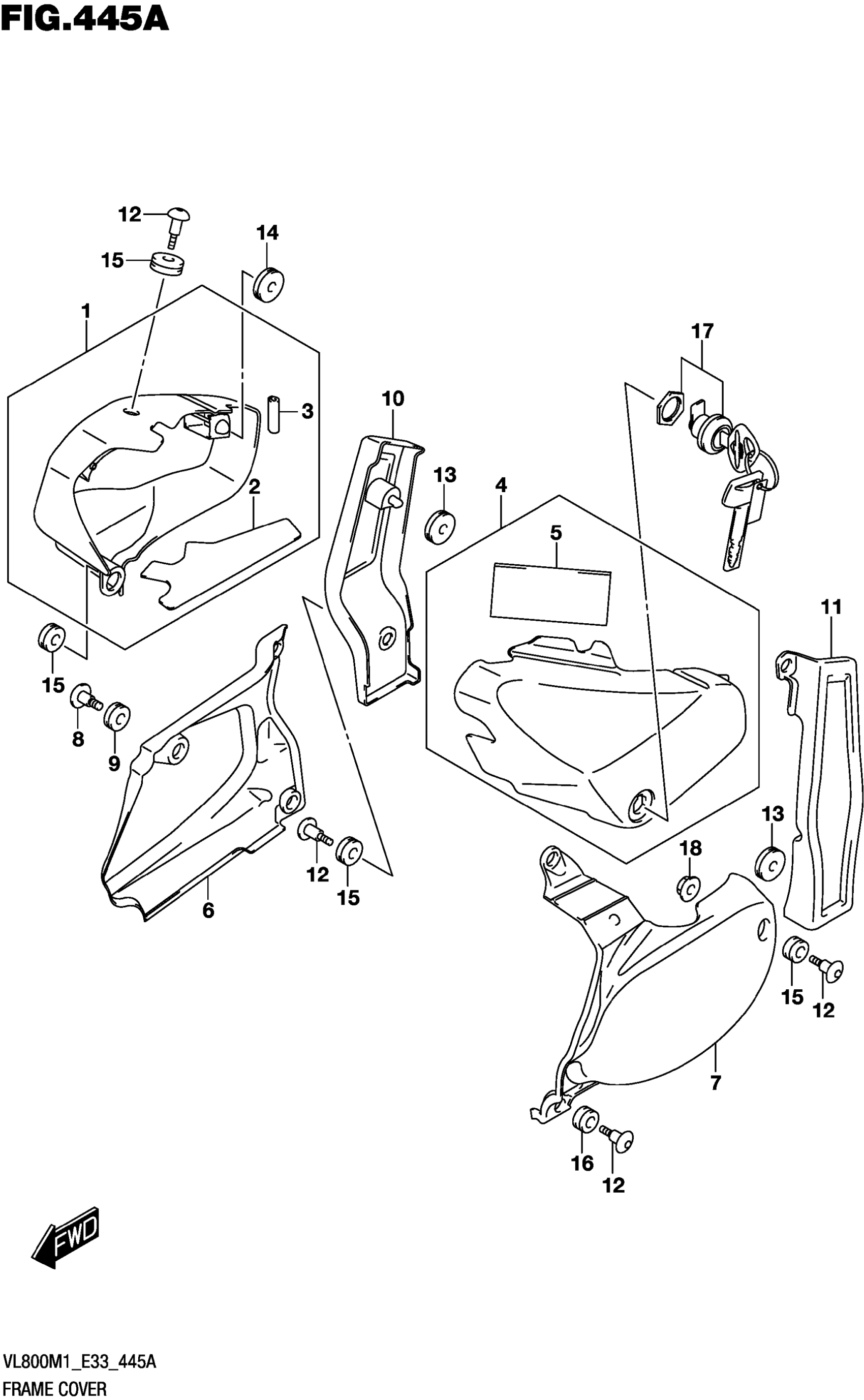

Suzuki VL800M1 (2021) FRAME COVER (VL800) Diagram

#

Description
Price

1-1

COVER,SIDE,R (GRAY) | BODY COLOR:YUD

47110-43H20-YUD

$216.63

1-2

COVER, FRAME RH (RED) | BODY COLOR:YYG

47110-43H20-YYG

$216.63

2

.SHIELD,FRAME COVER

47166-41F00

$20.13

3

.MOLDING

94631-35F00

$8.35

4-1

COVER,SIDE,L (GRAY) | BODY COLOR:YUD

47210-43H10-YUD

$216.63

4-2

COVER, FRAME LH (RED) | BODY COLOR:YYG

47210-43H10-YYG

$260.23

5

.CUSHION,LUGGAGE BOX

47217-41F00

$13.53

6

COVER,SIDE LOWER RH

47130-41F00

Unavailable

7

COVER,SIDE,LOWER LH

47231-41F00

$429.23

8

SCREW,SIDE COVER LOWER,R

47133-43H00

$7.98

9

CUSHION (8.5X20X8)

09320-08510

$1.74

10

COVER,SIDE RR RH (BLACK)

47141-41F01-019

$155.65

11

COVER,SIDE RR LH (BLACK)

47241-41F00-019

$154.90

12

SCREW (6X20)

09139-06126

$3.75

13

CUSHION (8x26x7)

09320-08018

$2.82

14

CUSHION (8X26X7)

09320-08514

$2.68

15

CUSHION (9X18X10)

09320-09501

$2.13

16

CUSHION (9X21X9.5)

09320-09058

$2.43

17

LOCK SET,COVER

95700-07861

$72.28

18

NUT

08316-1006B

$2.57
