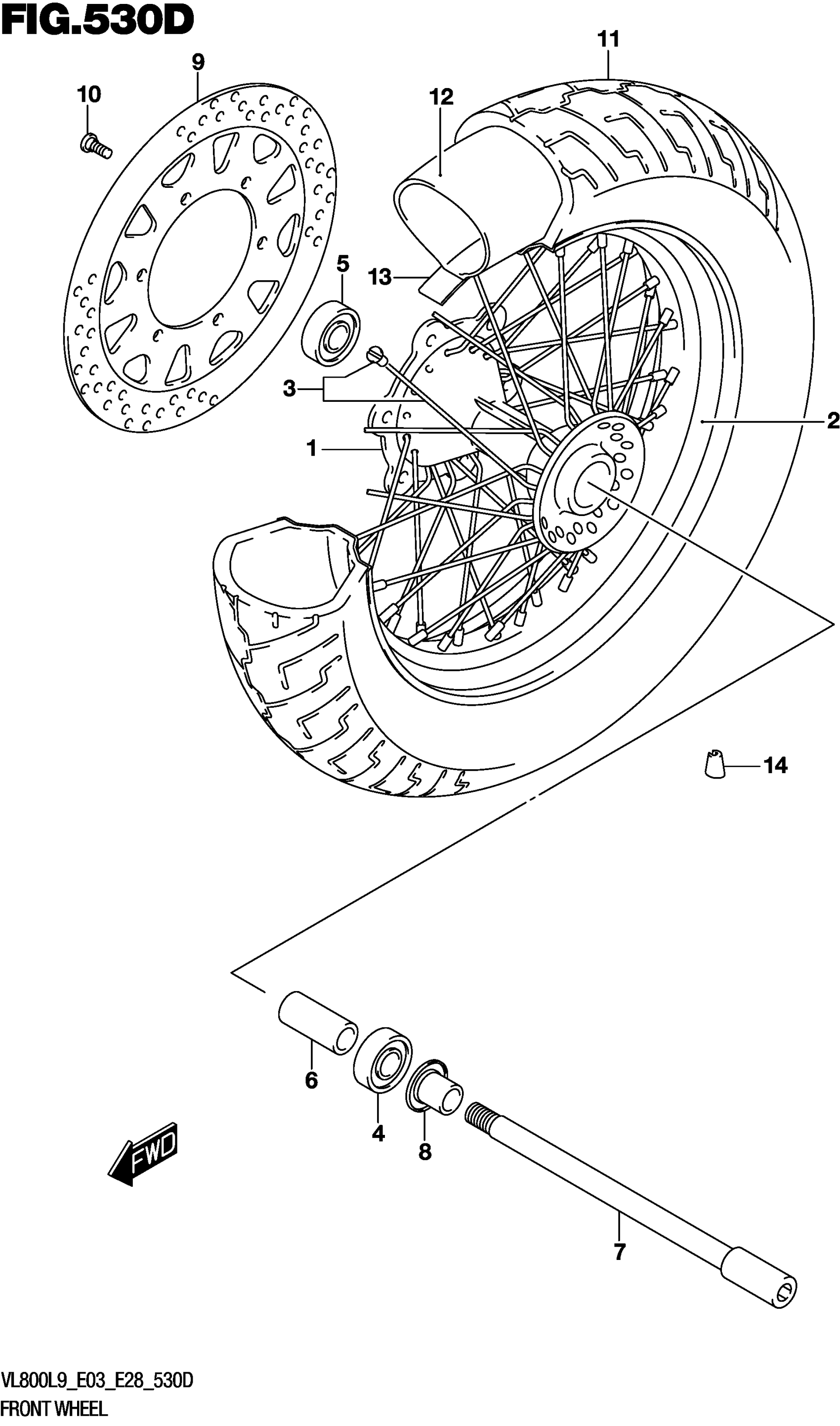

Suzuki VL800L9 (2019) FRONT WHEEL (VL800TL9 E03) Diagram

HUB,FRONT

54111-41F20

Unavailable

RIM,FR WHEEL (16M/CXMT3.00)

55311-41F01

$363.07

SPOKE SET,FRONT WHEEL

55320-41F00

$229.60

BEARING | LH This part replaces 08133-62037.

08133-6203B

$15.88

BEARING | RH

08143-62037

$16.66

SPACER (17.5X25X102)

09180-17080

$32.13

AXLE,FRONT

54711-41F00

$124.32

SPACER,FRONT AXLE,R

54740-32C00

$20.82

DISC,FRONT BRAKE

59211-41F00

$402.05

BOLT,DISK

59421-03A20

$4.54

TIRE,FRONT (130/90-16M/C) | GS-23F RW IRC This part replaces 55100-41F10.

55100-41F11

$298.72

TUBE ASSY,WHEEL INNER This part replaces 55200-41F00.

55200-41F01

$58.97

PROTECTOR, WHEEL INNER TUBE

55261-41F10

$7.48

BALANCER WHEEL (15G) | 15G

55411-26G00

$8.73

BALANCER WHEEL (30G) | 30G

55413-41F00

$9.95
