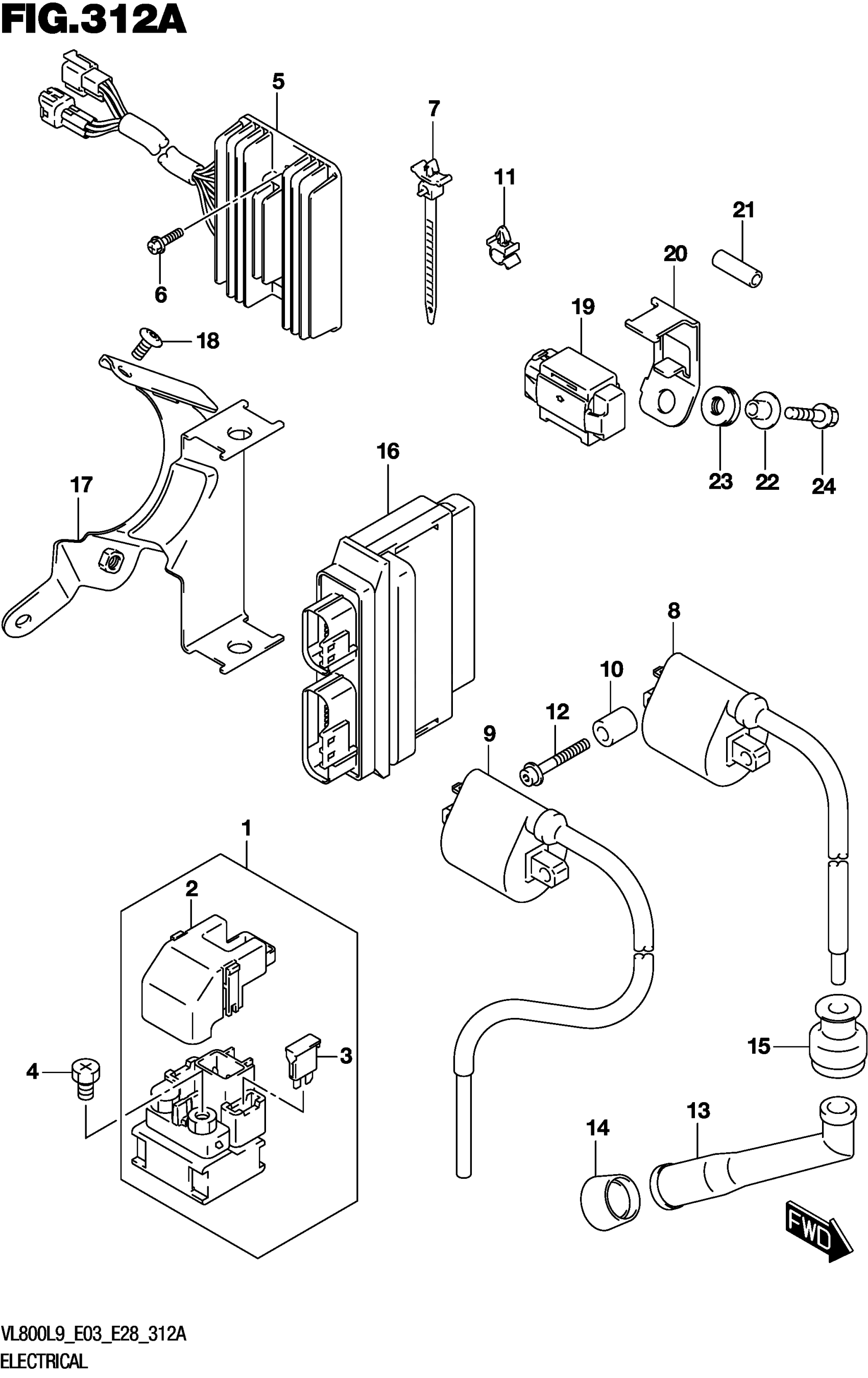

Suzuki VL800L9 (2019) ELECTRICAL (VL800L9 E03) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$61.62

.COVER

31861-47E00

$18.23

.FUSE (30A)

09481-30101

$2.28

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY

32800-47H00

$240.89

SCREW

02162-0620B

$2.19

CLAMP (L:90)

09407-11402

$1.81

COIL ASSY, IGNITION

33410-17G01

$68.66

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$97.08

SPACER (6.4X10X18)

09180-06195

$4.70

CLAMP

09403-07308

$2.25

BOLT (5X35)

09106-05033

Unavailable

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

$23.76

SEAL,SPARK PLUG

33541-47D00

$7.16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

CONTROL UNIT

32920-39GH0

Unavailable

BRACKET,FI CONT UNIT

44880-43H00

Unavailable

SCREW (6X12)

09139-06108

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

BRACKET,FUEL CUT SENSOR

33961-41F00

Unavailable

CUSHION,FUEL CUT SNSR BRKT | L:10

09352-50005-010

$2.52

SPACER (6.2X8.4X6.9)

09180-06325

$3.47

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.67

BOLT

01547-0616A

$2.01
