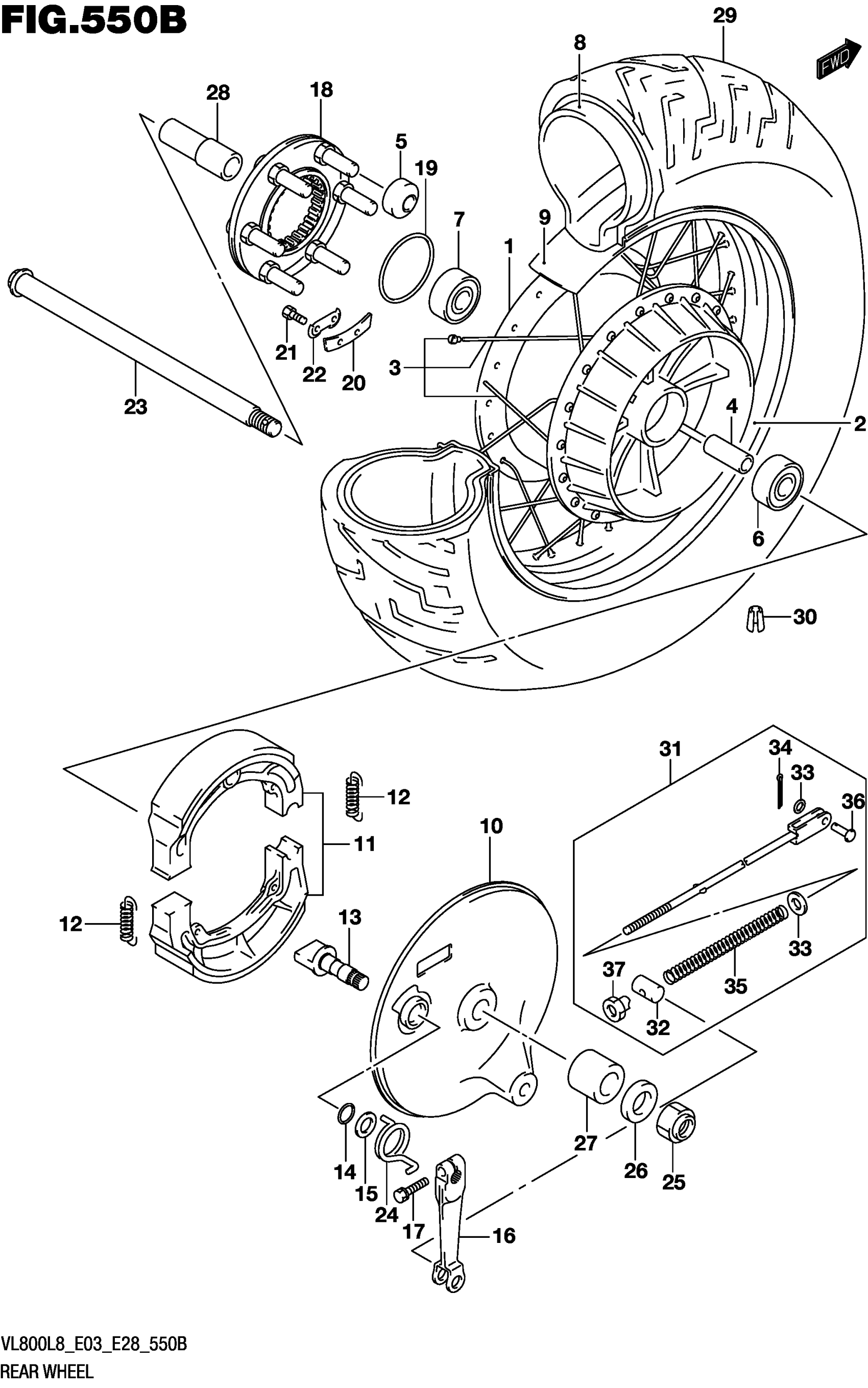

Suzuki VL800L8 (2018) REAR WHEEL (VL800L8 E28) Diagram

#

Description
Price

1

HUB,REAR

64110-41F20

Unavailable

2

RIM,REAR WHEEL (15M/CXMT4.00)

65311-41F00

$401.62

3

SPOKE SET,REAR WHEEL

65320-41F00

$119.72

4

SPACER (17.5X25X113)

09180-17092

$27.53

5

BUSH (12X41X34)

09319-12019

$12.00

6

BEARING This part replaces 08123-63037.

08123-6303B

$14.23

7

BEARING

08143-63037

$20.38

8

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

$64.00

9

PROTECTOR, WHEEL INNER TUBE

65261-41F10

$8.33

10

PANEL,REAR BRAKE ANCHOR (SILV

64210-38A70-20H

$338.13

10

PANEL,REAR BRAKE ANCHOR (SILV

64210-38A70-20H

$338.13

11

SHOE SET,BRAKE

64400-38820

$44.27

12

SPRING,BRAKE SHOE

55420-30000

$4.22

13

CAM,REAR BRAKE

64441-38A20

$34.70

14

O-RING (D:1.9,ID:14.5)

09280-15003

$1.77

15

WASHER (15.5X24X1.6)

09160-15048

$2.58

16

LEVER, BRAKE CAM

64451-38A40

$52.37

17

BOLT

01570-06257

$3.30

18

JOINT ASSY,REAR HUB DRIVEN

64680-45113

$306.47

19

O-RING (D:2.1,ID:65)

09280-65003

$4.03

20

WASHER, THRUST (T:1.6)

64677-45110

$3.80

21

BOLT (6X16)

09119-06049

$1.63

22

WASHER

09169-06030

$3.42

23

AXLE,REAR (L:302)

64711-19F00

$95.17

24

SPRING

09448-33006

$10.03

25

NUT

08319-2116A

$9.78

26

WASHER (17X30X3.2)

09160-17050

$2.67

27

SPACER,REAR AXLE,R

64741-41F00

$25.68

28

SPACER,REAR AXLE,L

64772-34201

$26.03

29

TIRE (170/80-15M/C 77H) | GS-23R IRC This part replaces 65100-41F00.

65100-41F01

$253.52

30-1

BALANCER WHEEL (15G) | 15G

55411-26G00

$8.73

30-2

BALANCER WHEEL (30G) | 30G

55413-41F00

$9.95

31

ROD ASSY,REAR BRAKE

43300-41F00

$26.32

32

.PIN (D:13.0,L:18.0)

09209-13018

$3.13

33

WASHER

08322-0106B

$2.24

34

PIN

04111-2015A

$1.22

35

.SPRING

09440-09004

$2.06

36

.PIN (10X16)

09200-06013

$2.05

37

.NUT

09150-06010

$2.80
