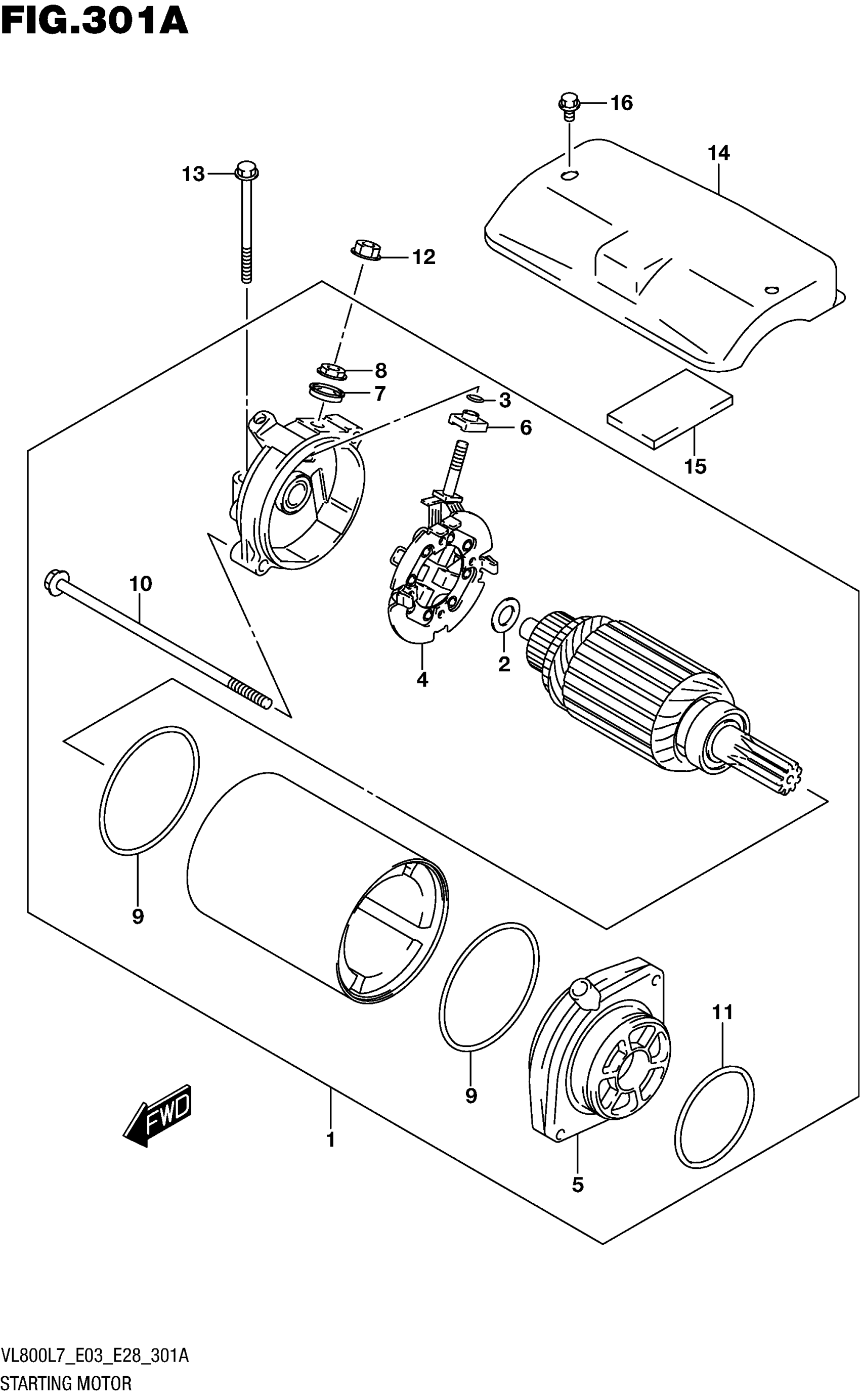

Suzuki VL800L7 (2017) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING This part replaces 31100-45C01.

31100-45C02

$616.93

2

.SHIM

31170-43400

Unavailable

3

.O RING

31143-38300

$5.75

4

.BRUSH HOLDER SET (-)

31132-45C00

$80.57

5

.BRACKET SET

31150-38A00

Unavailable

6

.BUSHING

31172-38300

$5.24

7

.BUSHING

31173-88C00

Unavailable

8

.NUT

08310-00067

$1.83

9

.O RING

31264-44110

$13.40

10

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

11

.O RING

31156-38A00

$14.07

12

NUT

08361-3506A

$1.81

13

BOLT (6X60)

09103-06261

$2.90

14

COVER, STARTING MOTOR

31210-41F00

$19.68

15

DAMPER, MOTOR COVER

31212-38A10

Unavailable

16

BOLT

01547-0508A

Unavailable
