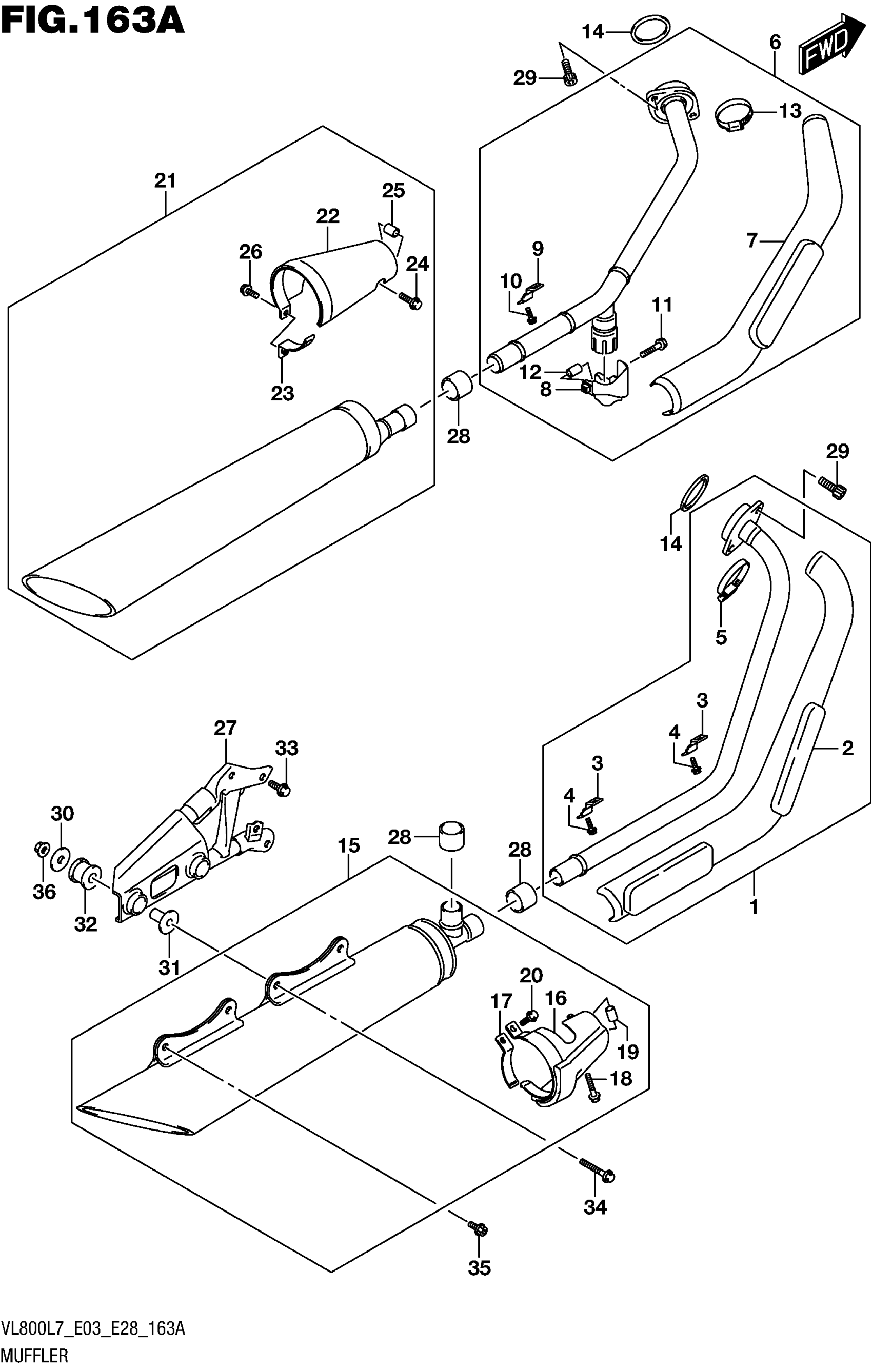

Suzuki VL800L7 (2017) MUFFLER (VL800L7 E03) Diagram

#

Description
Price

1

PIPE, EXHAUST FR

14150-39G00

Unavailable

2

.COVER

14193-39G00

Unavailable

3

.CLAMP

14185-41F00

$55.98

4

.BOLT

07120-0616A

$2.55

5

.BAND

14185-39G00

Unavailable

6

PIPE, EXHAUST RR

14160-39G00

$337.72

7

.COVER

14194-39G00

Unavailable

8

.CLAMP, CONNECTOR

14195-39G00

Unavailable

9

.CLAMP

14185-41F00

$55.98

10

.BOLT

07120-0616A

$2.55

11

.BOLT (8X35)

09103-08365

$3.58

12

.SPACER

14167-22H00

$19.60

13

.BAND

14185-39G00

Unavailable

14

GASKET, EXHAUST

14181-10F00

$11.82

15

MUFFLER, FR

14310-39G00-H01

$1,177.03

16

.COVER

14344-39G00

$274.08

17

.CLAMP

14399-22H00

$37.42

18

.BOLT (8X35)

09103-08365

$3.58

19

.SPACER

14167-22H00

$19.60

20

.BOLT

07120-0616A

$2.55

21

MUFFLER, RR

14340-39G00-H01

$1,003.02

22

.COVER

14345-39G00

$193.07

23

.CLAMP

14399-22H00

$37.42

24

.BOLT (8X35)

09103-08365

$3.58

25

.SPACER

14167-22H00

$19.60

26

.BOLT

07120-0616A

$2.55

27

BRACKET

14410-39G00

Unavailable

28

CONNECTOR,MUFFLER

14771-39G00

$31.10

29

BOLT (8X25)

09106-08178

$2.97

30

WASHER (8.5X33X1.5)

09160-08146

$2.58

31

SPACER (8.6X12X27.1)

09180-08156

$6.14

32

CUSHION

09320-12049

$9.63

33

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

$2.32

34

BOLT

01550-0845B

$3.13

35

BOLT (8X20)

09106-08107

$3.42

36

NUT

08361-2508A

$1.97
