2017 Suzuki VL800L7 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2017 Suzuki VL800L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

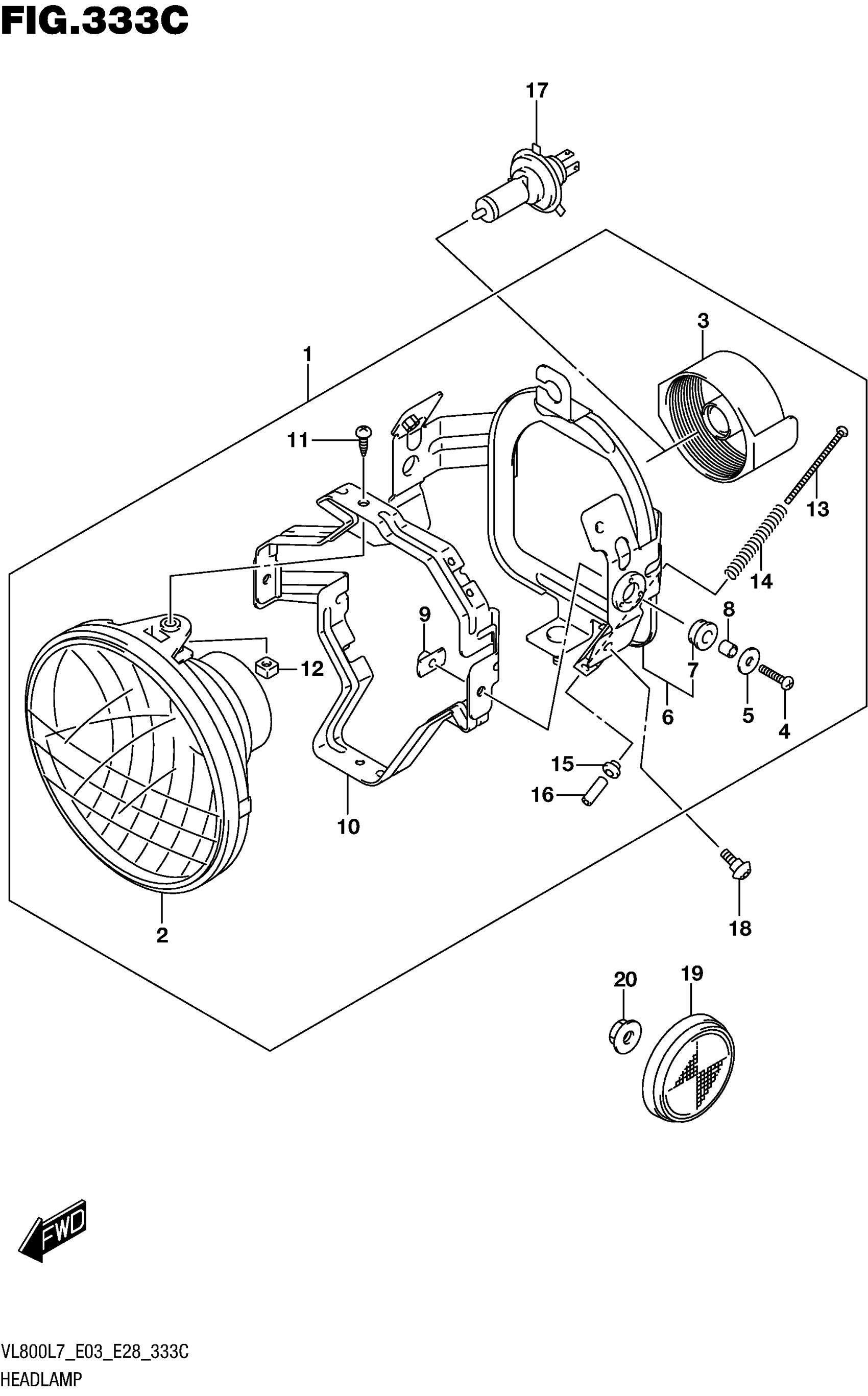

2017 Suzuki VL800L7 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.HEADLAMP ASSY

35100-06J31-999

1

$364.77

In stock

2

.UNIT

35121-10FB0

1

$224.25

In stock

3

.COVER,SOCKET

35174-19F00

1

$34.12

In stock

4

.SCREW

02122-0520A

2

$2.47

In stock

5

.WASHER (5.5X18X1)

09160-05045

2

$2.10

In stock

6

..BRACKET

35140-06J02

1

$146.45

In stock

7

..CUSHION

35139-38A60

2

$4.62

In stock

8

.SPACER

35133-45230

2

$3.72

In stock

9

.NUT

35155-10FA0

2

$6.75

In stock

10

.BRACKET

35130-10FA0

1

$72.12

In stock

11

.SCREW (5X16)

35181-19F00

2

$3.67

In stock

12

.NUT

35135-45900

2
Out of stock

13

.SCREW, ADJUSTER

35151-10FA0

2

$9.92

In stock

14

.SPRING, ADJUSTER

35154-10FA0

2

$6.75

In stock

15

.NUT

35152-45600

2

$3.92

In stock

16

.COVER

35158-10FA0

2
Out of stock

17

BULB (12V,60/55W)

09471-12060

1

$31.54

In stock

18

BOLT (6X12)

09111-06107

2
Out of stock

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

20

NUT

08316-1005B

1
Out of stock
