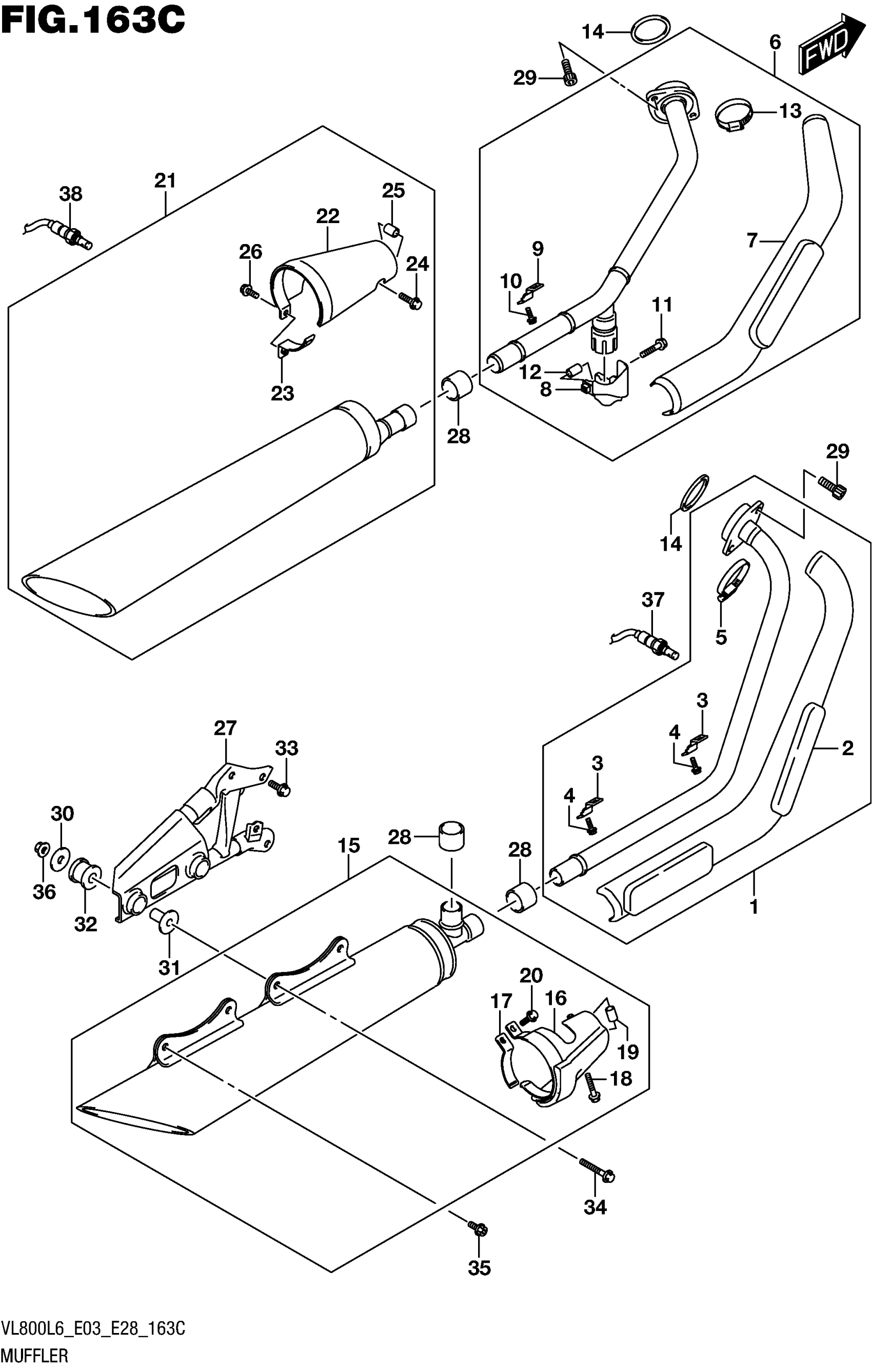

Find the part on the Muffler diagram for your 2016 Suzuki VL800L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VL800L6 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST FR

14150-39G10

1
Out of stock

2

.COVER

14193-39G00

1
Out of stock

3

.CLAMP

14185-41F00

2
Out of stock

4

.BOLT

07120-0616A

2
Out of stock

5

.BAND

14185-39G00

1
Out of stock

6

PIPE, EXHAUST RR

14160-39G00

1
Out of stock

7

.COVER

14194-39G00

1
Out of stock

8

.CLAMP, CONNECTOR

14195-39G00

1
Out of stock

9

.CLAMP

14185-41F00

1
Out of stock

10

.BOLT

07120-0616A

1
Out of stock

11

.BOLT (8X35)

09103-08365

1
Out of stock

12

.SPACER

14167-22H00

1
Out of stock

13

.BAND

14185-39G00

1
Out of stock

14

GASKET, EXHAUST

14181-10F00

2

$12.87

In stock

15

MUFFLER, FR

14310-39G10-H01

1
Out of stock

16

.COVER

14344-39G00

1
Out of stock

17

.CLAMP

14399-22H00

1
Out of stock

18

.BOLT (8X35)

09103-08365

1
Out of stock

19

.SPACER

14167-22H00

1
Out of stock

20

.BOLT

07120-0616A

1
Out of stock

21

MUFFLER, RR

14340-39G10-H01

1
Out of stock

22

.COVER

14345-39G00

1
Out of stock

23

.CLAMP

14399-22H00

1
Out of stock

24

.BOLT (8X35)

09103-08365

1
Out of stock

25

.SPACER

14167-22H00

1
Out of stock

26

.BOLT

07120-0616A

1
Out of stock

27

BRACKET

14410-39G00

1
Out of stock

28

CONNECTOR,MUFFLER

14771-39G00

3
Out of stock

29

BOLT (8X25)

09106-08178

4
Out of stock

30

WASHER (8.5X33X1.5)

09160-08146

2

$2.80

In stock

31

SPACER (8.6X12X27.1)

09180-08156

2
Out of stock

32

CUSHION

09320-12049

2

$10.34

In stock

33

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

3
Out of stock

34

BOLT

01550-0845B

2
Out of stock

35

BOLT (8X20)

09106-08107

2
Out of stock

36

NUT

08361-2508A

2

$2.10

In stock

37

SENSOR, OXY FR

18213-15H10

1
Out of stock

38

SENSOR, OXY RR

18213-23H20

1
Out of stock
