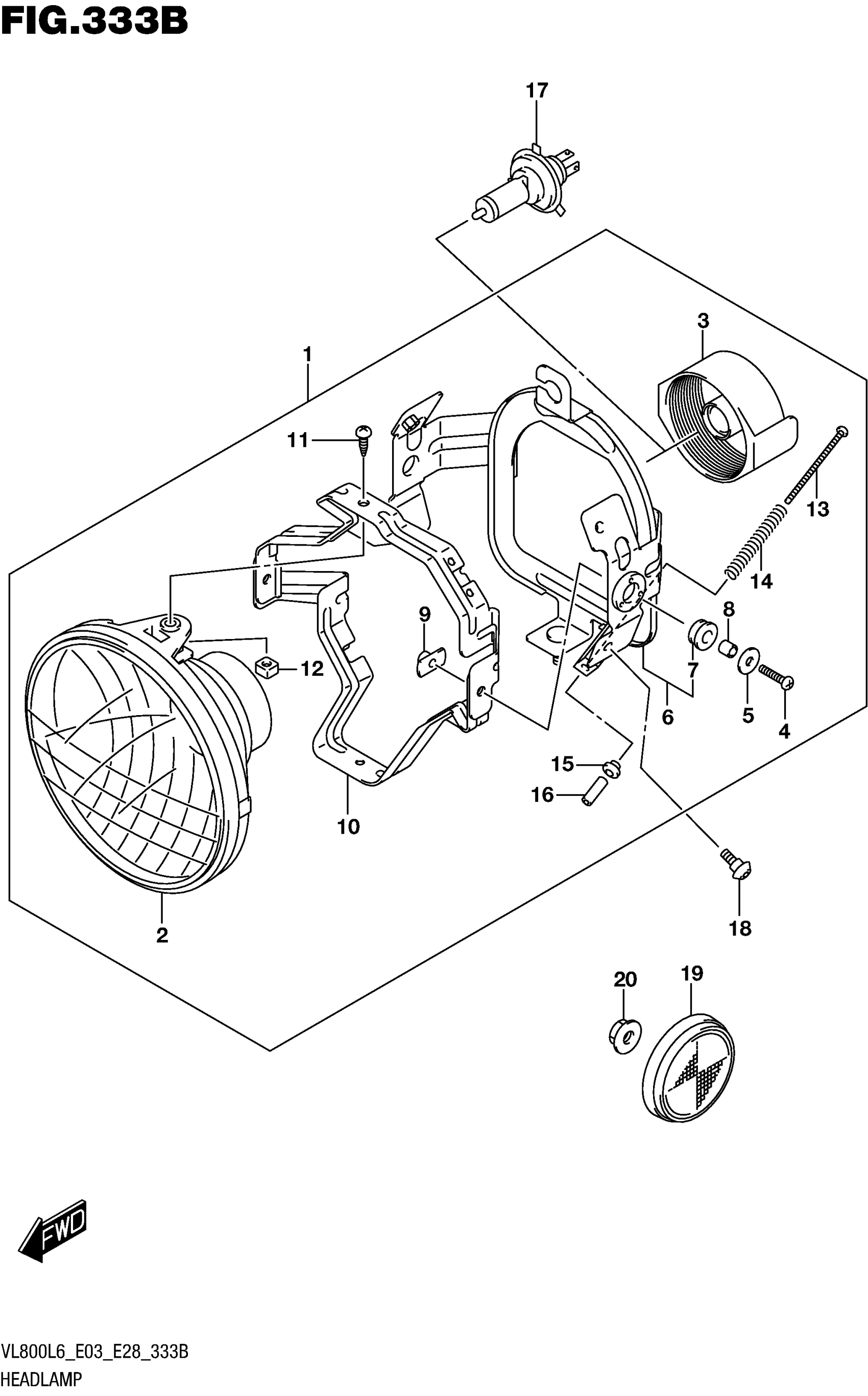

Suzuki VL800L6 (2016) HEADLAMP (VL800L6 E28) Diagram

#

Description
Price

1

.HEADLAMP ASSY

35100-06J31-999

$364.77

2

.UNIT

35121-10FB0

$224.25

3

.COVER,SOCKET

35174-19F00

$34.12

4

.SCREW

02122-0520A

$2.47

5

.WASHER (5.5X18X1)

09160-05045

$1.95

6

..BRACKET

35140-06J02

$146.45

7

..CUSHION

35139-38A60

$4.62

8

.SPACER

35133-45230

$3.72

9

.NUT

35155-10FA0

$6.75

10

.BRACKET

35130-10FA0

Unavailable

11

.SCREW (5X16)

35181-19F00

$3.67

12

.NUT

35135-45900

$3.67

13

.SCREW, ADJUSTER

35151-10FA0

Unavailable

14

.SPRING, ADJUSTER

35154-10FA0

Unavailable

15

.NUT

35152-45600

$3.92

16

.COVER

35158-10FA0

Unavailable

17

BULB (12V,60/55W)

09471-12060

$22.69

18

BOLT (6X12)

09111-06107

$2.66

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

20

NUT

08316-1005B

$2.50
