2014 Suzuki VL800CL4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2014 Suzuki VL800CL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

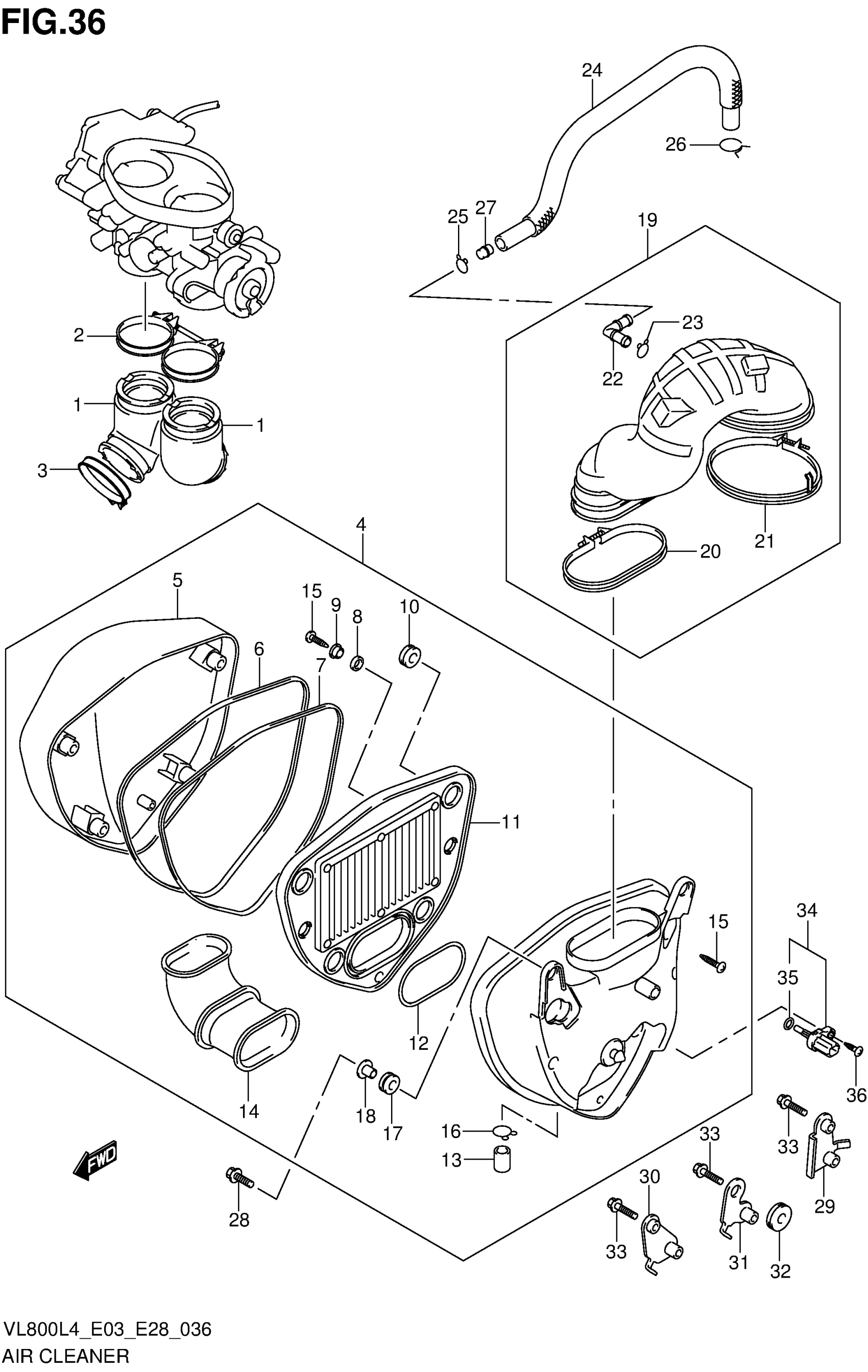

2014 Suzuki VL800CL4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$38.70

In stock

2

CLAMP

13170-39G00

1
Out of stock

3

CLAMP

13170-15G00

2
Out of stock

4

CASE ASSY,AIR CLEANER

13701-39G20

1
Out of stock

5

CAP

13741-39G20

1
Out of stock

6

GASKET

13727-39G20

1
Out of stock

7

GASKET

13726-39G20

1
Out of stock

8

CUSHION

13747-39G20

4
Out of stock

9

WASHER

09169-06082

4
Out of stock

10

CUSHION

13747-41F00

4
Out of stock

11

FILTER

13780-39G20

1
Out of stock

12

GASKET, FILTER

13746-39G20

1
Out of stock

13

.PLUG

13859-41B10

1
Out of stock

14

TUBE, INLET

13891-39G20

1
Out of stock

15

SCREW

03541-0525B

8
Out of stock

16

CLIP

09401-14301

1
Out of stock

17

CUSHION

09320-09016

2
Out of stock

18

COLLAR

13812-29C50

2

$3.05

In stock

19

TUBE ASSY, OUTLET

13880-39G21

1
Out of stock

20

CLAMP

13826-41F20

1
Out of stock

21

CLAMP

13826-39G21

1
Out of stock

22

JOINT

13858-14D20

1

$7.41

In stock

23

CLIP

09401-15101

1
Out of stock

24

TUBE, BREATHER

13853-39G20

1
Out of stock

25

CLIP

09401-15101

1
Out of stock

26

CLIP

09401-16301

1
Out of stock

27

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

1
Out of stock

28

SCREW (6X20)

09139-06063

2
Out of stock

29

BRACKET, NO.1

13761-39G20

1
Out of stock

30

BRACKET, NO.2

13762-39G20

1
Out of stock

31

BRACKET, NO.3

13763-39G20

1
Out of stock

32

CUSHION

09320-08028

1
Out of stock

33

BOLT

01547-0625A

3
Out of stock

34

SENSOR, AIR TEMP

13650-41F10

1
Out of stock

35

O-RING

13655-41F10

1
Out of stock

36

SCREW

03511-0516B

1
Out of stock
