2013 Suzuki VL800CL3 Headlamp Assy Diagram

← All diagrams

Find the part on the Headlamp Assy diagram for your 2013 Suzuki VL800CL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

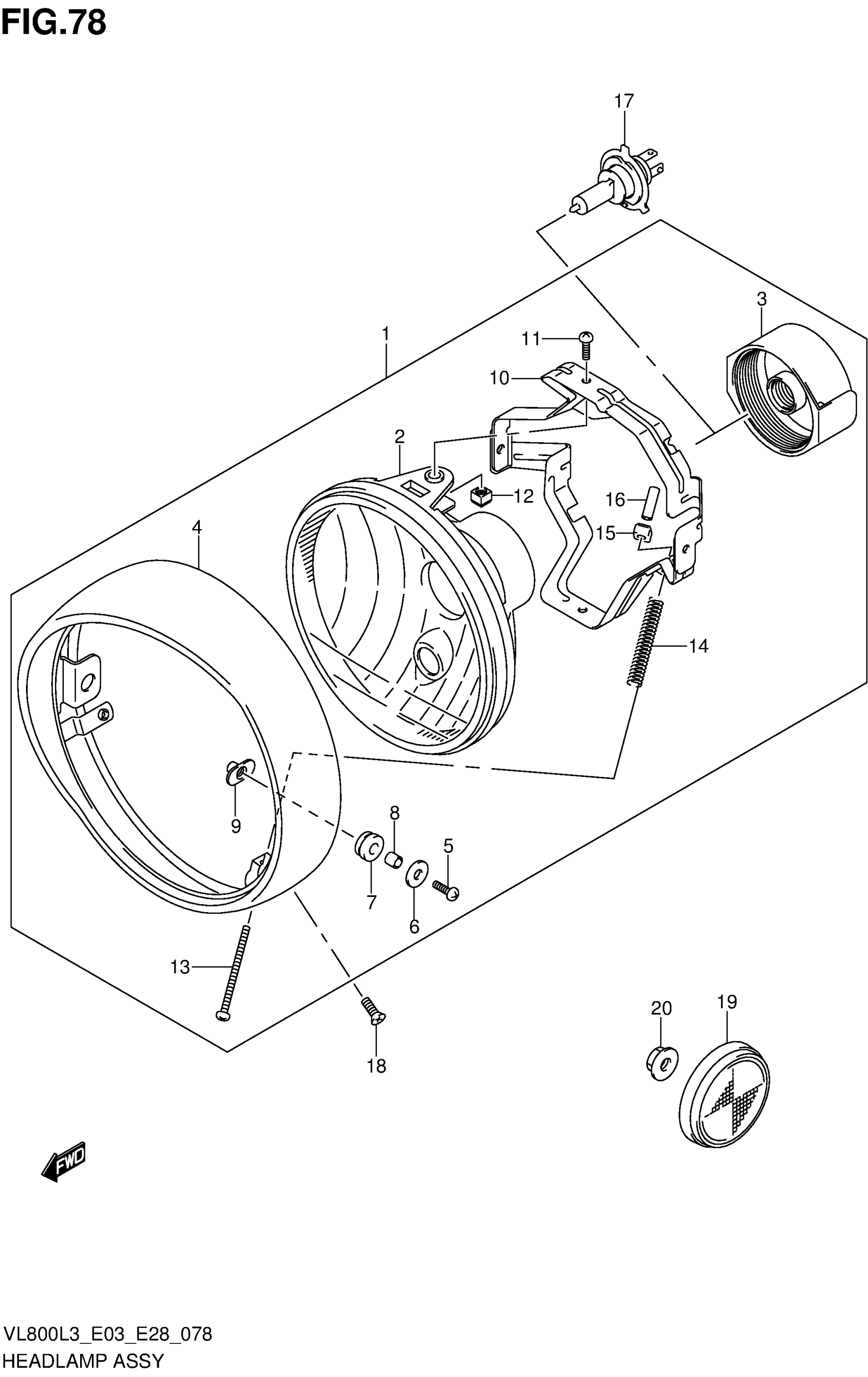

2013 Suzuki VL800CL3 Headlamp Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-10FH0-999

1
Out of stock

2

UNIT

35121-10FB0

1
Out of stock

3

.COVER,SOCKET

35174-19F00

1
Out of stock

4

RIM

35111-10FG0

1
Out of stock

5

SCREW

02122-0520A

2
Out of stock

6

WASHER (5.5X18X1)

09160-05045

2
Out of stock

7

CUSHION

35139-38A60

2
Out of stock

8

SPACER

35133-45230

2
Out of stock

9

NUT

35155-10FA0

2
Out of stock

10

BRACKET

35130-10FD0

1
Out of stock

11

.SCREW (5X16)

35181-19F00

2
Out of stock

12

NUT

35135-45900

2

$3.67

In stock

13

SCREW, ADJUSTER

35151-10FA0

2
Out of stock

14

SPRING, ADJUSTER

35154-10FA0

2
Out of stock

15

.NUT

35152-45600

2
Out of stock

16

COVER

35158-10FA0

2
Out of stock

17

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

1
Out of stock

18

SCREW (5X8)

09126-05007

2
Out of stock

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

20

NUT

08316-1005B

1
Out of stock
