2013 Suzuki VL800CL3 Gear Shifting Diagram

← All diagrams

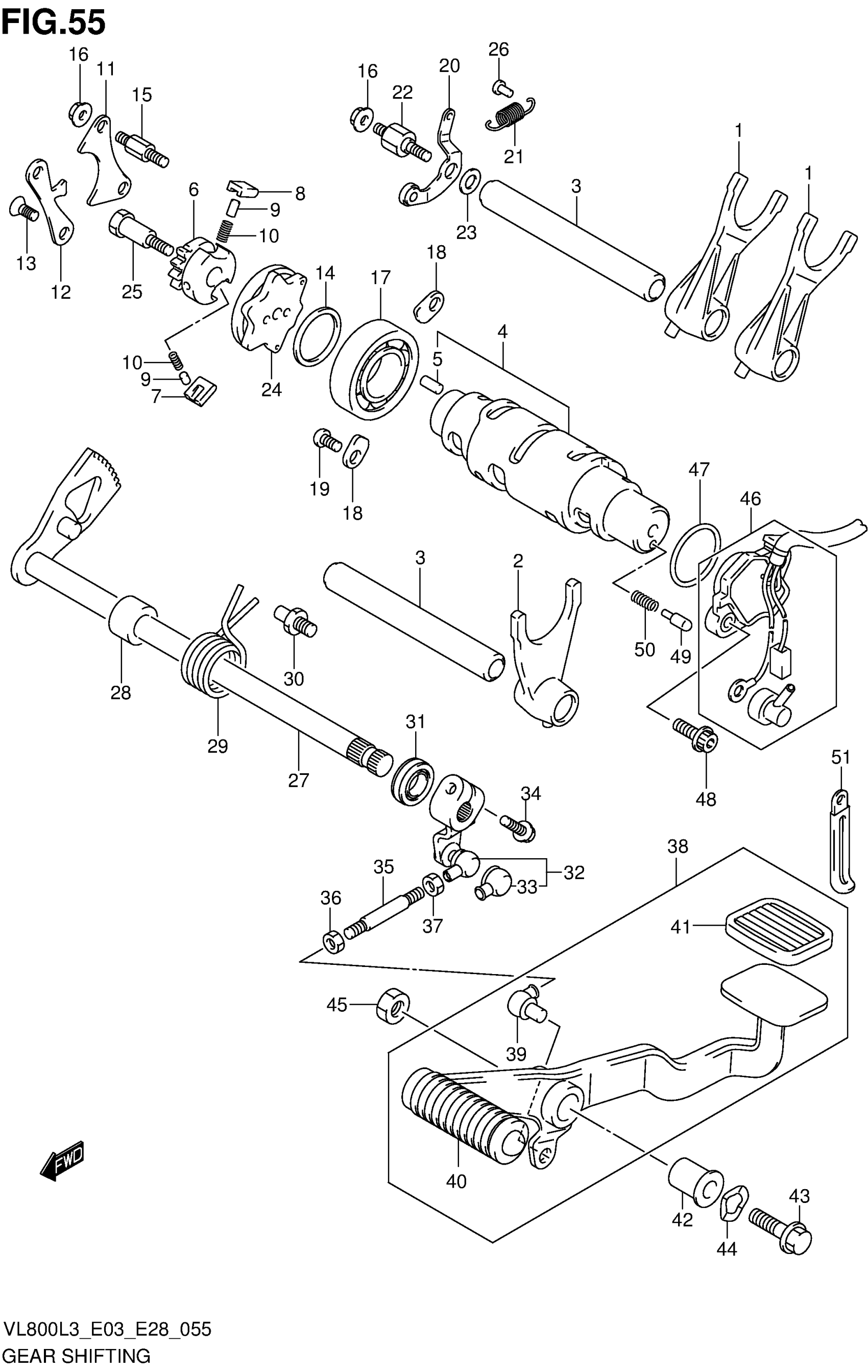

Find the part on the Gear Shifting diagram for your 2013 Suzuki VL800CL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VL800CL3 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-38A10

2
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-38A10

1
Out of stock

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

2
Out of stock

4

CAM, GEAR SHIFTING

25310-41F00

1
Out of stock

5

PIN (4X13.8)

04221-04089

2
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

9

PIN (5X8)

09261-05003

2
Out of stock

10

SPRING

09440-04003

2
Out of stock

11

LIFTER, PAWL

25331-38A00

1
Out of stock

12

GUIDE, CAM

25341-38A00

1
Out of stock

13

SCREW (6X12)

09126-06011

2
Out of stock

14

WASHER (25X32X3)

09160-25059

1
Out of stock

15

BOSS, SHIFT PAWL LIFTER

25332-38A10

1
Out of stock

16

NUT

08316-1006A

2
Out of stock

17

BEARING (25X47X8)

09262-25006

1
Out of stock

18

RETAINER, BEARING

24741-21A00

2
Out of stock

19

SCREW (6X12)

09125-06122

1
Out of stock

20

STOPPER, CAM

25350-38A00

1
Out of stock

21

SPRING

09443-09027

1
Out of stock

22

SUPPORT, CAM STOPPER

25355-38A10

1
Out of stock

23

WASHER

08211-06141

1
Out of stock

24

PLATE, STOPPER

25380-38A02

1
Out of stock

25

PIN, SHIFT CAM

25312-38A00

1
Out of stock

26

RIVET

09223-04004

1
Out of stock

27

SHAFT, GEAR SHIFTING

25510-38A00

1
Out of stock

28

SPACER (12X20X15.3)

09180-12068

1
Out of stock

29

SPRING

09444-26013

1
Out of stock

30

STOPPER, ARM

25671-01011

1
Out of stock

31

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

32

ARM,GEAR SHIFT LINK This part replaces 25520-38B00.

25520-38B01

1
Out of stock

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

34

BOLT

01547-0620A

1
Out of stock

35

ROD, GEAR SHIFT LINK

25525-41F00

1
Out of stock

36

NUT

09140-06011

1
Out of stock

37

.NUT

08310-00067

1
Out of stock

38

LEVER ASSY,GEAR SHIFT This part replaces 25600-41F20.

25600-41F21

1
Out of stock

39

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

40

RUBBER, GEAR, FR

25652-10F00

1
Out of stock

41

RUBBER, GEAR, RR

43151-01400

1
Out of stock

42

SPACER, GEAR SHIFT LEVER

25617-41F00

1
Out of stock

43

BOLT (10X40)

09103-10300

1
Out of stock

44

WASHER

09164-18009

1
Out of stock

45

NUT

08310-0010B

1
Out of stock

46

BASE ASSY, GEAR SHIFT TERM

37730-41F02

1
Out of stock

47

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

48

BOLT

07120-0516A

2
Out of stock

49

PIN (5X15.5)

09209-05011

2
Out of stock

50

SPRING

09440-04010

2
Out of stock

51

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock
