2011 Suzuki VL800CL1 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

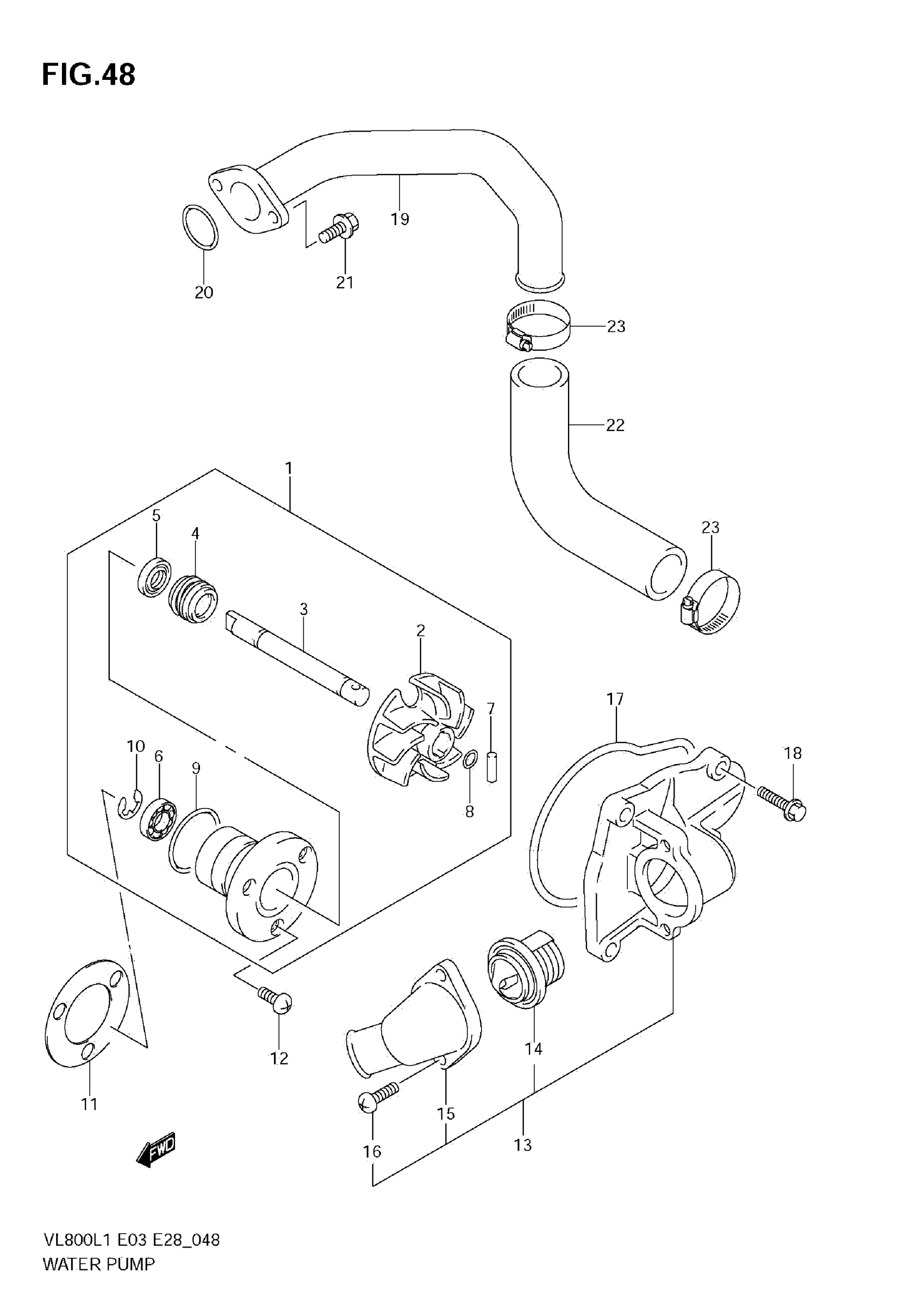

2011 Suzuki VL800CL1 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER This part replaces 17400-38A10.

17400-38A11

1
Out of stock

2

IMPELLER

17491-38A00

1
Out of stock

3

SHAFT

17511-38A00

1
Out of stock

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

5

.SEAL OIL (10X21X5)

09283-10004

1
Out of stock

6

BEARING (10X22X6)

09262-10004

1
Out of stock

7

PIN

17516-38A00

1
Out of stock

8

O RING

17515-38A00

1
Out of stock

9

.O RING This part replaces 17417-38A00.

17417-38A01

1
Out of stock

10

.E-RING

08332-1108A

1
Out of stock

11

GASKET, WATER PUMP

17431-38A10

1
Out of stock

12

SCREW

02112-0612B

3
Out of stock

13

CAP ASSY, WATER PUMP

17410-41F30

1
Out of stock

14

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

1
Out of stock

15

CONNECTOR

17412-41F00

1
Out of stock

16

SCREW

02112-0616A

2
Out of stock

17

O RING

17435-38A00

1
Out of stock

18

BOLT

01547-0620A

4
Out of stock

19

PIPE, CYLINDER IN

17890-41F00

1
Out of stock

20

O RING, INLET (D:2.3,ID:24.4)

09280-24007

1
Out of stock

21

BOLT

01547-0616A

2
Out of stock

22

HOSE, WATER PUMP OUT

17858-38A10

1
Out of stock

23

CLAMP

09402-32512

2
Out of stock
