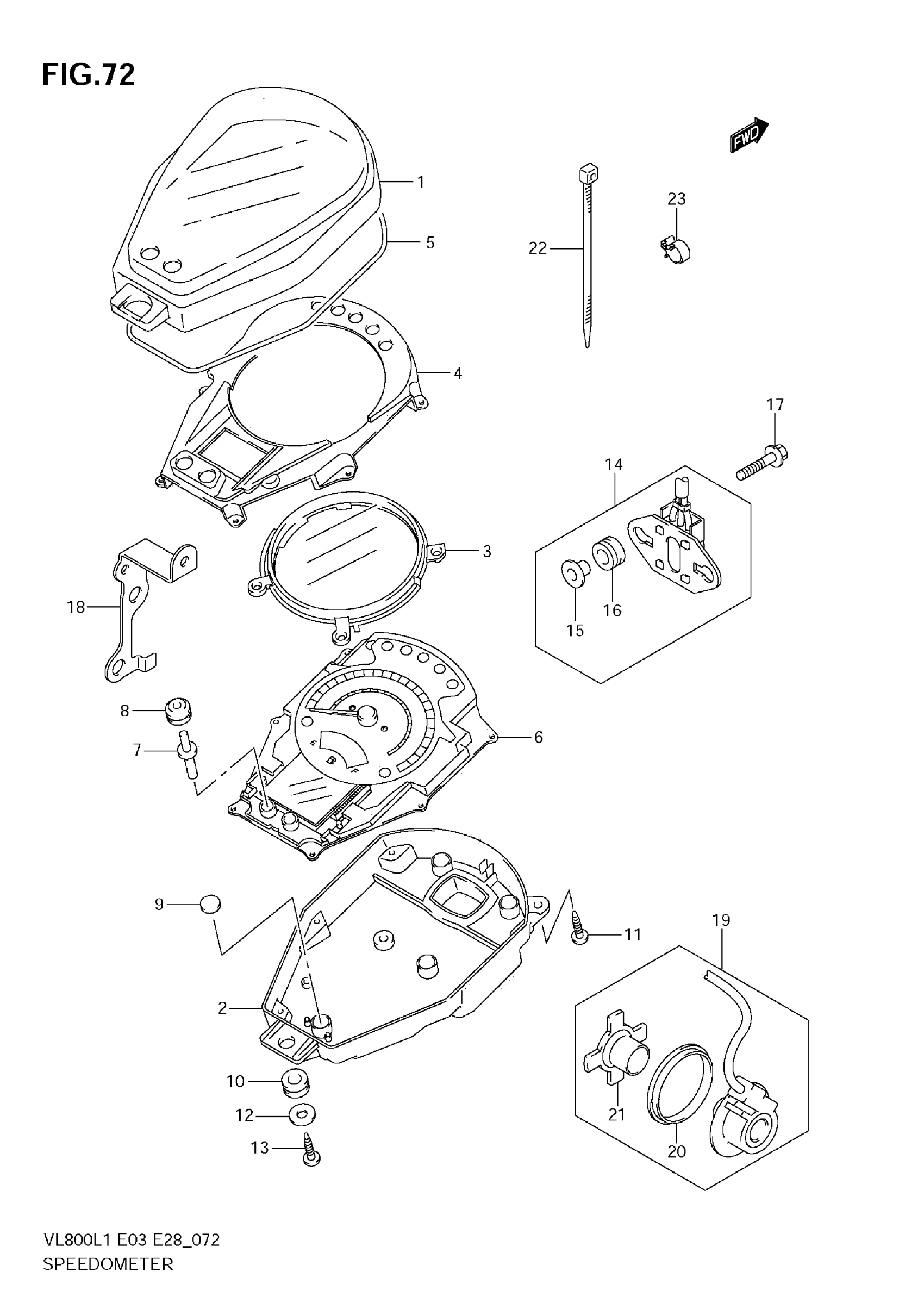

Suzuki VL800CL1 (2011) SPEEDOMETER (VL800C E3) Diagram

#

Description
Price

1

CASE ASSY

34151-43H00

$200.33

2

CASE, LOWER

34156-43H00

Unavailable

3

RING

34193-43H00

Unavailable

4

PLATE, WINDOW

34125-43H00

$46.53

5

PACKING, RUBBER

34153-43H00

$31.82

6

SPEEDOMETER (MILE/KILO)

34120-43H10

$920.50

7

NOB

34124-16G00

$10.62

8

BUSHING

34126-44G00

$11.83

9

CUSHION, METER

34167-13E00

Unavailable

10

.CUSHION

34996-43410

$4.92

11

SCREW (3X12)

34183-29F00

$3.62

12

WASHER (5.5X16X1.2)

09160-05037

$1.49

13

SCREW, SPEEDOMETER

03541-0516A

$1.37

14

RESISTOR ASSY This part replaces 36510-39F00.

36510-39F01

$81.60

15

SPACER (6.5X10X11.6)

09180-06319

$4.92

16

CUSHION

09320-10015

$2.53

17

BOLT (6X25)

09116-06047

Unavailable

18

GUIDE, SPEED SENSOR

34938-41F50

Unavailable

19

SENSOR, SPEEDO

34990-41F10

$277.65

20

SEAL

09286-44001

$10.69

21

MAGNET

34983-27G00

$30.47

22

CLAMP (L:145)

09407-14407

$2.80

23

CLIP, SENSOR LEAD

09403-06410

$2.77
