2011 Suzuki VL800CL1 Radiator Hose Diagram

← All diagrams

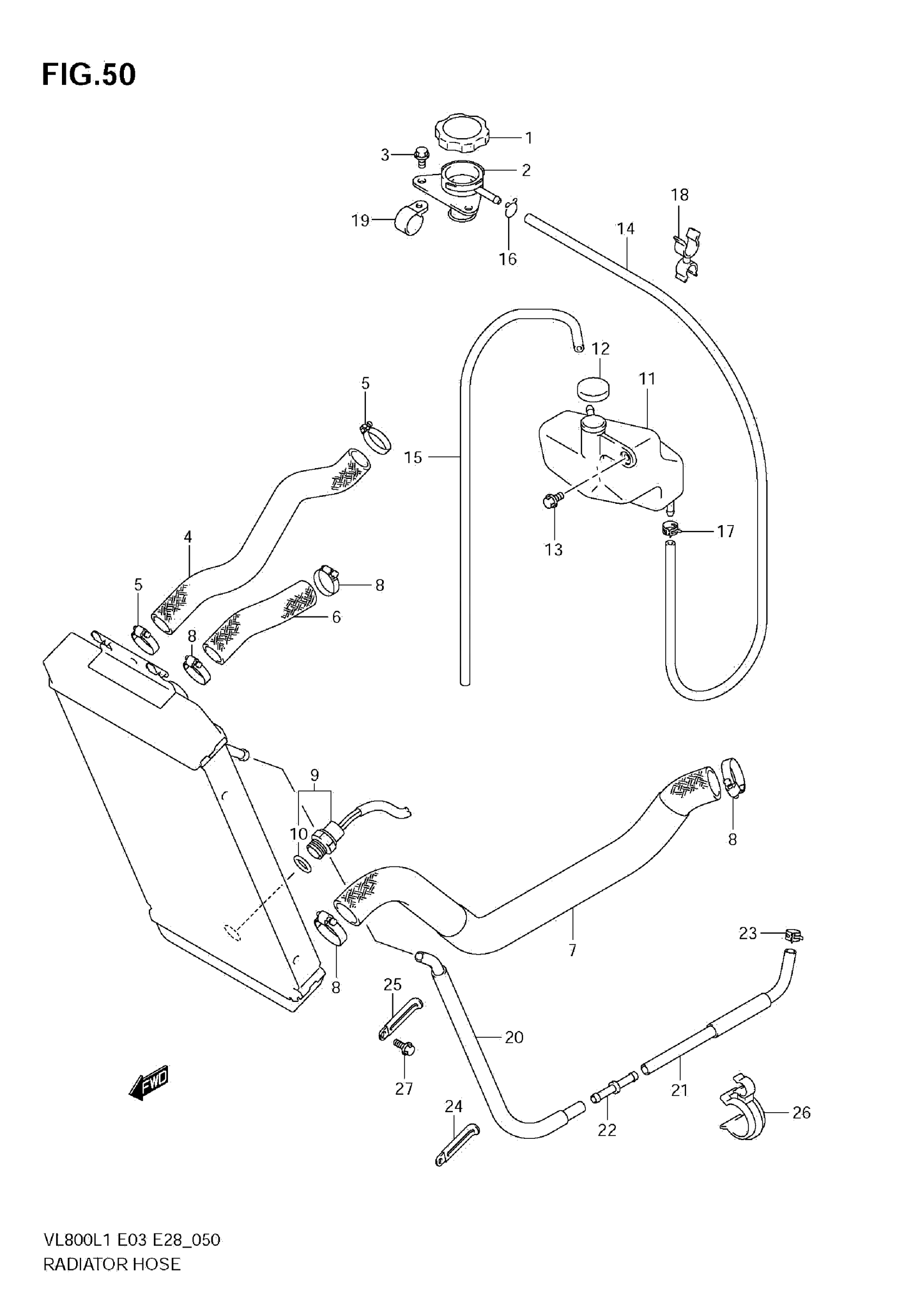

Find the part on the Radiator Hose diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR, 1.1

17730-12C30

1
Out of stock

2

CONDUCTION

17791-24D00

1
Out of stock

3

BOLT

01547-0616A

1
Out of stock

4

HOSE, CONDUCTION

17853-41F00

1
Out of stock

5

CLAMP

09402-28513

2

$6.80

In stock

6

HOSE, RADIATOR INLET

17851-41F00

1
Out of stock

7

HOSE, RADIATOR OUTLET

17852-41F02

1
Out of stock

8

CLAMP, WATER HOSE

09402-32512

4
Out of stock

9

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

1
Out of stock

10

O RING

17689-50F00

1
Out of stock

11

TANK,RESERVOIR

17911-41F11

1
Out of stock

12

CAP, RESERVOIR TANK

17932-12C00

1
Out of stock

13

BOLT (6X12)

09111-06085

2
Out of stock

14

HOSE, INLET

17981-41F11

1
Out of stock

15

HOSE, OUTLET

17981-19F00

1
Out of stock

16

CLIP

09401-08410

1
Out of stock

17

CLIP

09401-08411

1
Out of stock

18

CLAMP

09408-00078

1
Out of stock

19

CLAMP

09403-08404

—
Out of stock

20

HOSE, WATER BYPASS

17855-41F00

1
Out of stock

21

HOSE, WATER BYPASS

17856-41F00

1
Out of stock

22

JOINT

09367-08001

1
Out of stock

23

CLIP

09401-12405

4
Out of stock

24

1

$2.88

In stock

25

CLAMP (L:82)

09404-10205

1
Out of stock

26

CLAMP

09408-00177

2
Out of stock

27

BOLT (10X16)

09103-10393

1
Out of stock
