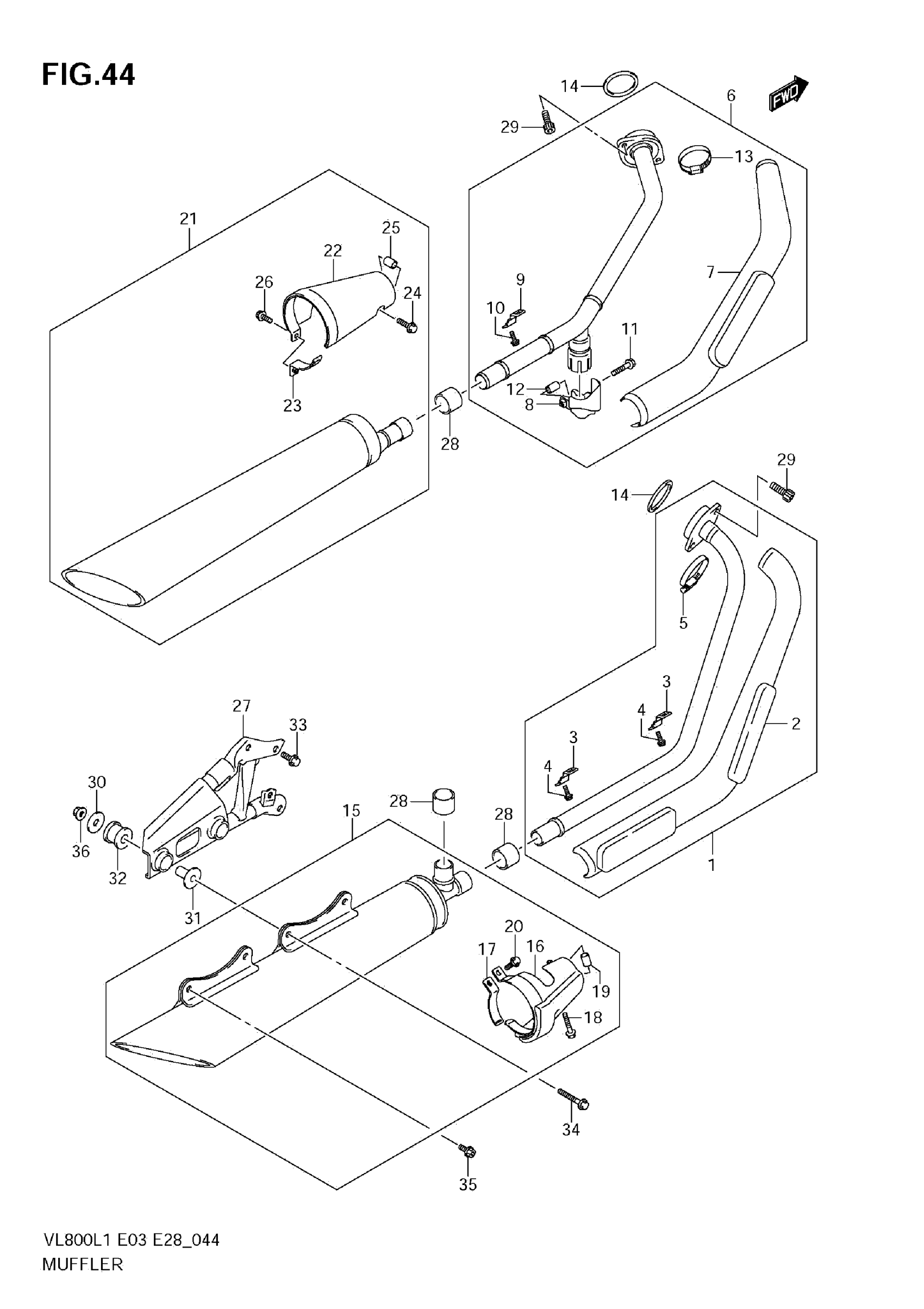

Find the part on the Muffler diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST FR

14150-39G00

1
Out of stock

2

COVER

14193-39G00

1
Out of stock

3

CLAMP

14185-41F00

2
Out of stock

4

BOLT

07120-0616A

2
Out of stock

5

BAND

14185-39G00

1
Out of stock

6

PIPE, EXHAUST RR

14160-39G00

1
Out of stock

7

COVER

14194-39G00

1
Out of stock

8

CLAMP, CONNECTOR

14195-39G00

1
Out of stock

9

CLAMP

14185-41F00

1
Out of stock

10

BOLT

07120-0616A

1
Out of stock

11

BOLT (8X35)

09103-08365

1
Out of stock

12

SPACER

14167-22H00

1
Out of stock

13

BAND

14185-39G00

1
Out of stock

14

GASKET, EXHAUST

14181-10F00

2

$12.87

In stock

15

MUFFLER, FR

14310-39G00-H01

1
Out of stock

16

COVER

14344-39G00

1
Out of stock

17

CLAMP

14399-22H00

1
Out of stock

18

BOLT (8X35)

09103-08365

1
Out of stock

19

SPACER

14167-22H00

1
Out of stock

20

BOLT

07120-0616A

1
Out of stock

21

MUFFLER, RR

14340-39G00-H01

1
Out of stock

22

COVER

14345-39G00

1
Out of stock

23

CLAMP

14399-22H00

1
Out of stock

24

BOLT (8X35)

09103-08365

1
Out of stock

25

SPACER

14167-22H00

1
Out of stock

26

BOLT

07120-0616A

1
Out of stock

27

BRACKET

14410-39G00

1
Out of stock

28

CONNECTOR,MUFFLER

14771-39G00

3
Out of stock

29

BOLT (8X25)

09106-08165

4
Out of stock

30

WASHER (8.5X33X1.5)

09160-08146

2

$2.80

In stock

31

SPACER

09180-08156

2
Out of stock

32

CUSHION

09320-12049

2

$10.34

In stock

33

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

3
Out of stock

34

BOLT

01550-0845B

2
Out of stock

35

BOLT (8X20)

09106-08107

2
Out of stock

36

NUT

08361-2508A

2

$2.10

In stock
