2011 Suzuki VL800CL1 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

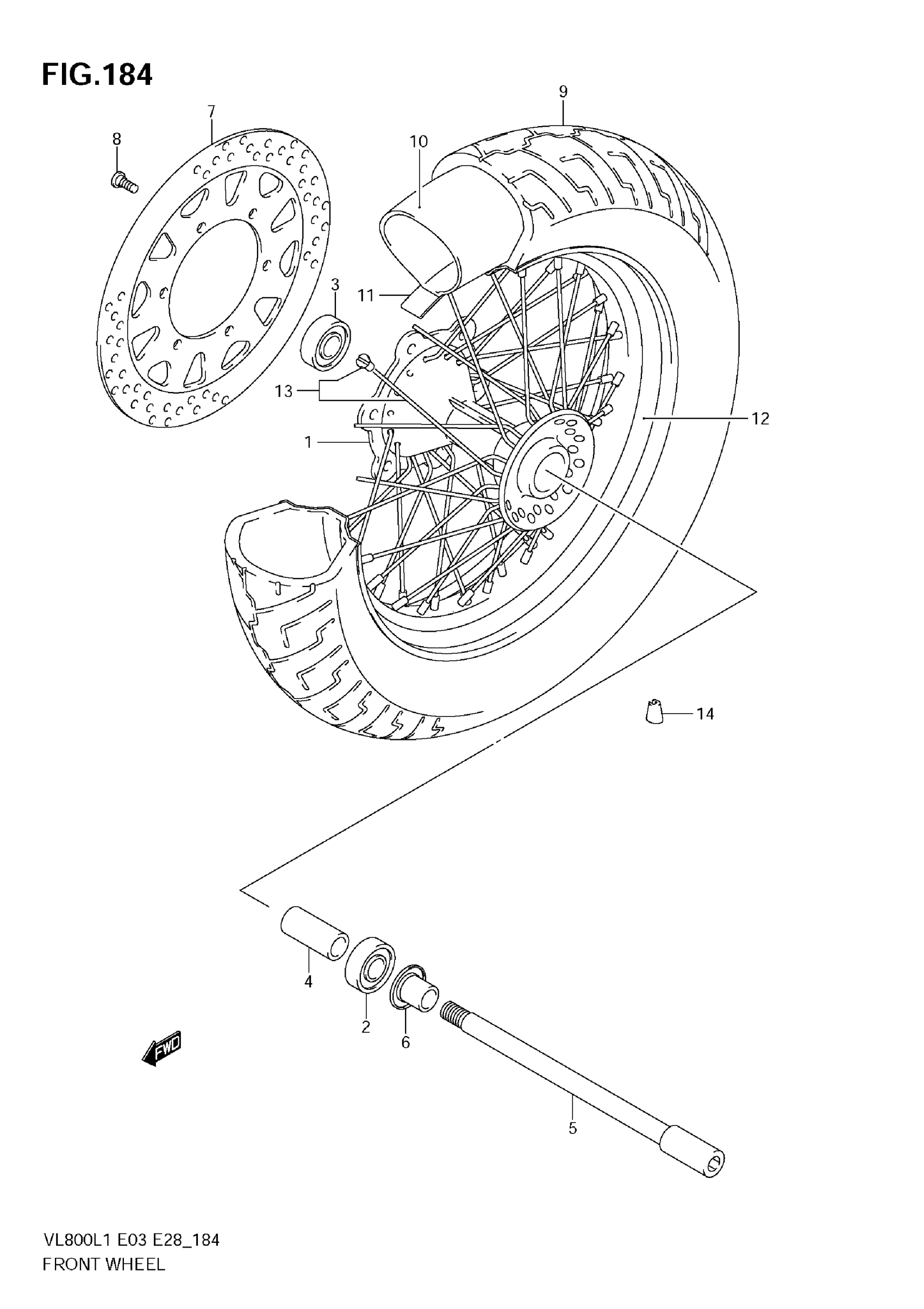

2011 Suzuki VL800CL1 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-41F20

1
Out of stock

2

1

$17.05

In stock

3

BEARING, FRONT HUB RH

08143-62037

1
Out of stock

4

SPACER, BEARING

09180-17080

1
Out of stock

5

AXLE, FRONT

54711-41F00

1
Out of stock

6

SPACER, AXLE LH

54740-32C00

1
Out of stock

7

DISC, FRONT BRAKE RH

59211-41F00

1
Out of stock

8

BOLT,DISK

59421-03A20

6
Out of stock

9

TIRE (130/90-16M/C) This part replaces 55100-41F00.

55100-41F01

1
Out of stock

10

TUBE ASSY,WHEEL INNER This part replaces 55200-41F00.

55200-41F01

1
Out of stock

11

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-41F00.

55261-41F10

1
Out of stock

12

RIM, FRONT WHEEL (16XMT3.00)

55311-41F01

1
Out of stock

13

SPOKE SET, FRONT WHEEL

55320-41F00

1
Out of stock

14

BALANCER WHEEL (15G)

55411-26G00

1
Out of stock

14

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock
← Front Damper Front Wheel →
