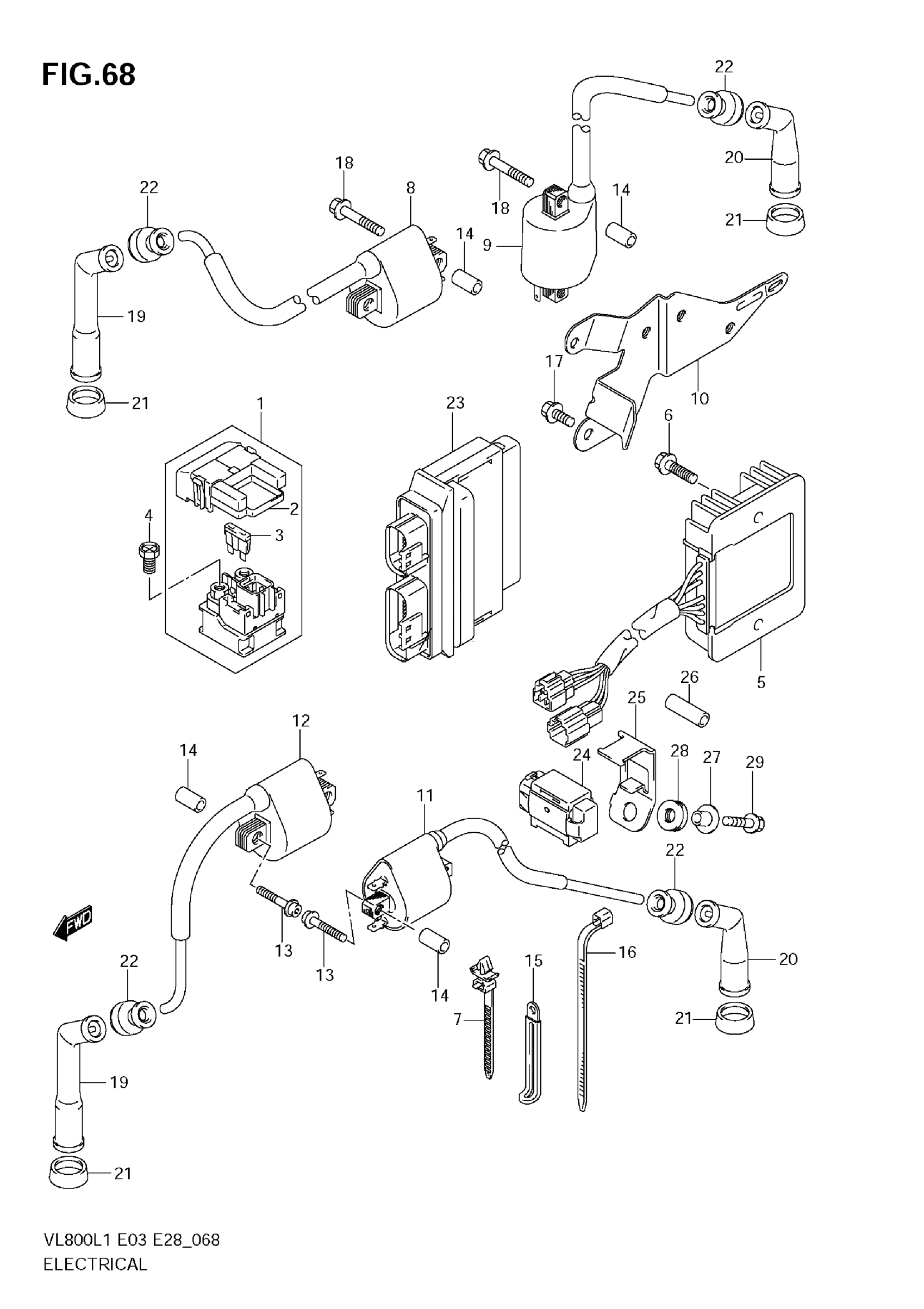

Suzuki VL800CL1 (2011) ELECTRICAL (VL800T E33) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$61.62

2

COVER

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.28

4

BOLT (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-41F11.

32800-47H00

$240.89

6

BOLT

02162-0620B

$2.19

7

CLAMP (L:90)

09407-11402

$1.81

8

COIL ASSY, IGNITION REAR

33410-39G00

$139.58

9

COIL ASSY, IGNITION REAR

33410-39G10

$140.27

10

BRACKET, IGNITION COIL REAR

33414-39G00

Unavailable

11

COIL ASSY, IGNITION FRONT

33420-39G00

$139.58

12

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$97.08

13

BOLT, IGNITION COIL (5X35)

09106-05033

Unavailable

14

SPACER, IGNITION COIL

09180-06195

$4.70

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

16

CLAMP (L:190)

09407-19401

$3.32

17

BOLT, IGNITION COIL BRACKET

01547-0610A

$1.47

18

BOLT, IGNITION COIL RR

01547-0635A

$2.31

19

CAP ASSY, SPARK (CENTER)

33510-11410

$23.76

20

CAP ASSY, SPARK (SIDE)

33510-38B00

$35.80

21

SEAL, SPARK PLUG

33541-47D00

$7.16

22

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

23

CONTROL UNIT, FI

32920-39GC0

Unavailable

24

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

25

BRACKET, FUEL CUT SENSOR

33961-41F00

Unavailable

26

HOSE,5X10X600 | CUT AS REQUIRED L:10 This part replaces 09352-50823-600.

44421-13ER0

$9.08

27

SPACER (6.2X8.4X6.9)

09180-06325

$3.47

28

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.67

29

BOLT, FUEL CUT

01547-0616A

$2.01
