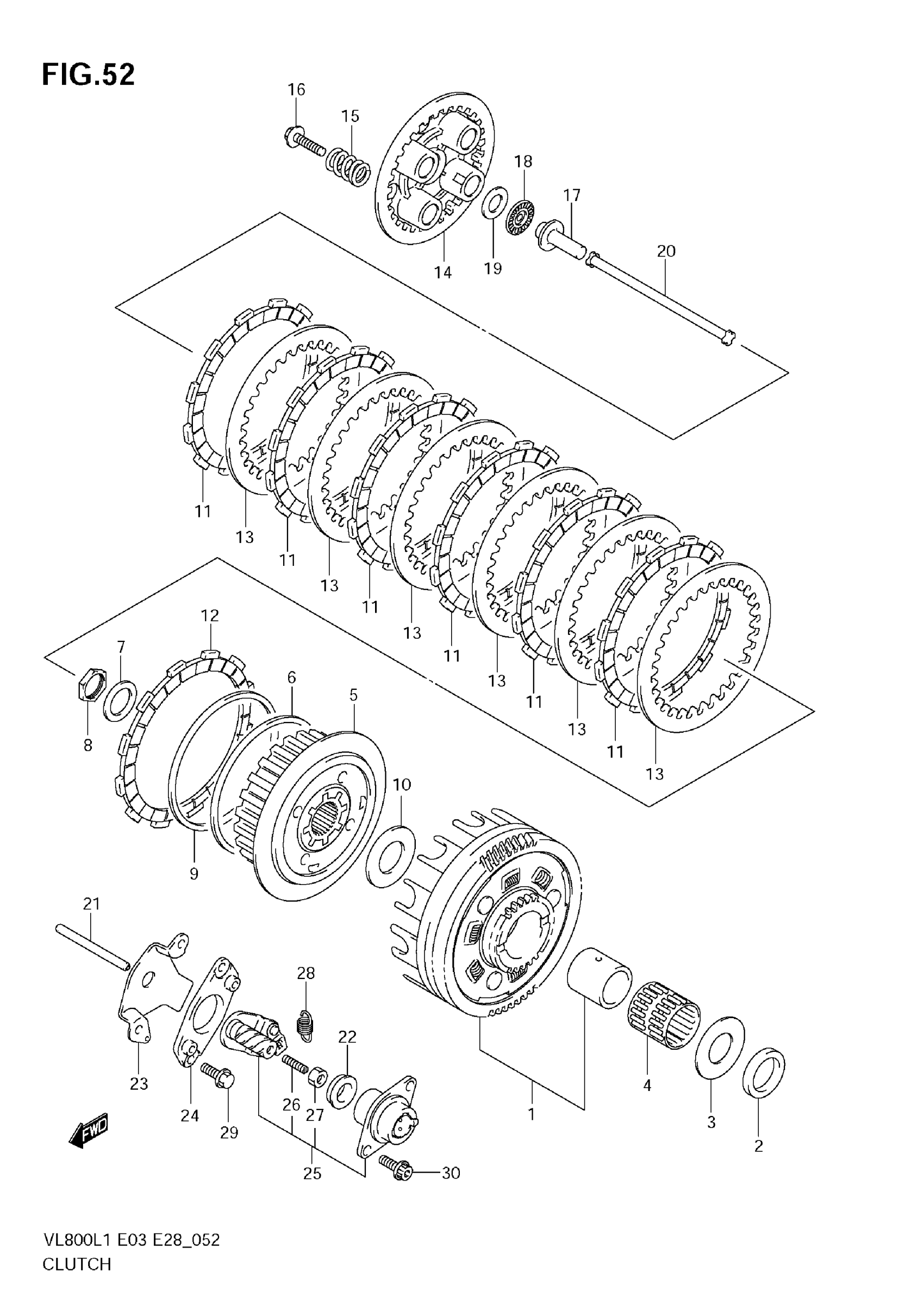

Suzuki VL800CL1 (2011) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

$515.82

2

SPACER (25X38X6.5)

09180-25077

$14.72

3

WASHER (25X50X2.5)

09160-25055

$9.37

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, SLEEVE

21410-41F00

$161.65

6

SEAT, WAVE WASHER

21471-37400

$8.95

7

WASHER, WAVE

09164-22007

$7.98

8

NUT

09140-22008

$7.98

9

WASHER (110.5X119X0.9)

09164-00004

$10.39

10

WASHER (25X50X2.5)

09160-25055

$9.37

11

PLATE, DRIVE NO.1

21441-37400

$16.59

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.09

13

PLATE, DRIVEN

21451-14A00

$8.71

14

DISC, PRESSURE

21462-27A00

$65.10

15

SPRING, CLUTCH

21413-41F00

$4.39

16

BOLT (6X30)

09116-06203

$2.88

17

PIECE, PUSH

23121-31E00

$22.52

18

BEARING (15X28X2)

09263-15003

$7.49

19

WASHER (15.5X28X1)

09160-15045

$3.52

20

ROD, PUSH RH

23110-27A00

$19.86

21

ROD, PUSH LH

23111-45C00

$19.60

22

OIL SEAL (6X34X10.5)

09283-06010

$15.16

23

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

Unavailable

24

BRACKET, RELEASE SCREW

23130-45C00

$29.67

25

SCREW ASSY, CLUTCH RELEASE

23200-41F00

$108.32

26

SCREW (6X25)

09134-06010

$2.81

27

.NUT

08310-00067

$1.83

28

SPRING, RELEASE ARM

09443-09050

$3.69

29

BOLT, BRACKET

07120-0620B

$2.80

30

BOLT, RELEASE SCREW

07120-0616B

$2.47
