2014 Suzuki VL800BL4 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2014 Suzuki VL800BL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

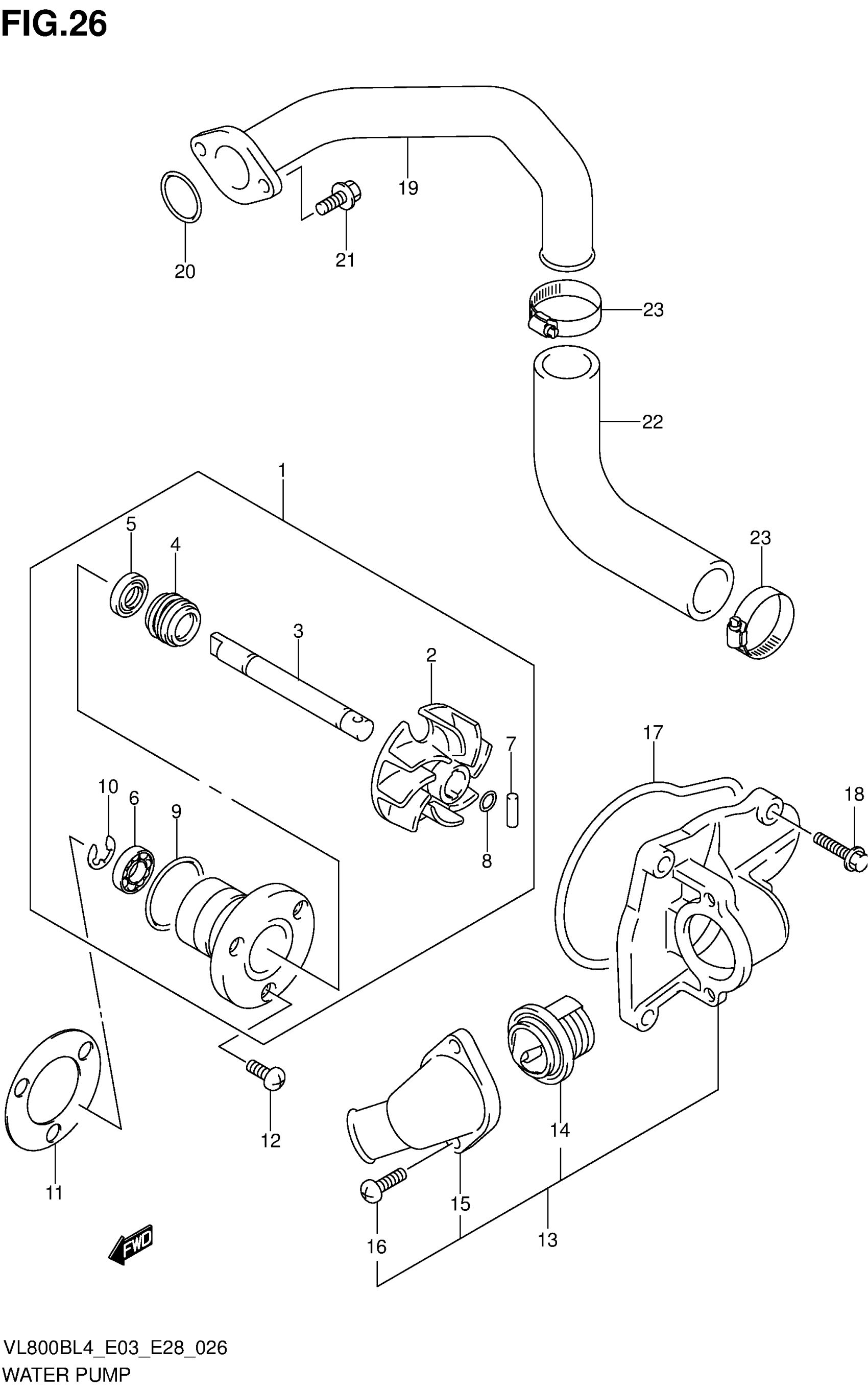

2014 Suzuki VL800BL4 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$162.72

In stock

2

IMPELLER

17491-38A00

1

$31.55

In stock

3

SHAFT

17511-38A00

1
Out of stock

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

5

.SEAL OIL (10X21X5)

09283-10004

1

$4.80

In stock

6

BEARING (10X22X6)

09262-10004

1

$35.53

In stock

7

PIN

17516-38A00

1
Out of stock

8

O RING

17515-38A00

1

$2.17

In stock

9

1

$3.65

In stock

10

.E-RING

08332-1108A

1
Out of stock

11

GASKET, WATER PUMP

17431-38A10

1

$6.13

In stock

12

SCREW

02112-0612B

3

$2.10

In stock

13

CAP ASSY, WATER PUMP

17410-41F30

1
Out of stock

14

1

$35.49

In stock

15

CONNECTOR

17412-41F00

1
Out of stock

16

SCREW

02112-0616A

2
Out of stock

17

O RING

17435-38A00

1

$6.44

In stock

18

BOLT

01547-0620A

4
Out of stock

19

PIPE, CYLINDER IN

17890-41F00

1
Out of stock

20

1

$2.05

In stock

21

BOLT

01547-0616A

2
Out of stock

22

HOSE, WATER PUMP OUT

17858-38A10

1
Out of stock

23

CLAMP

09402-32512

2
Out of stock
