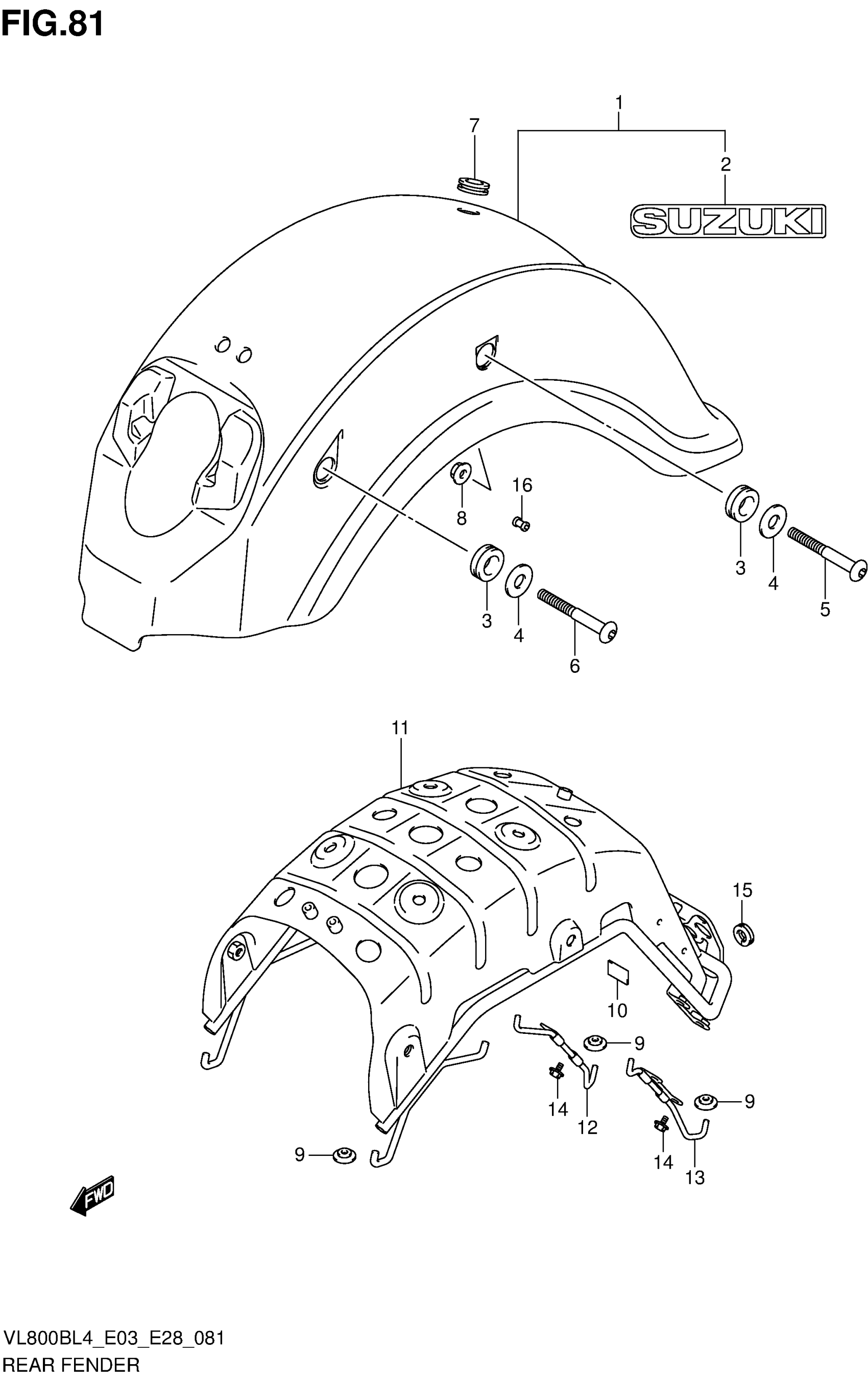

Suzuki VL800BL4 (2014) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-43H00-6UX.

63110-43H01-6UX

$536.12

2

EMBLEM,"SUZUKI" This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

3

CUSHION

47191-24F00

$4.86

4

WASHER (15.5X26X2.3)

09160-15002

$1.70

5

BOLT, REAR FENDER

63161-41F00

$8.85

6

BOLT, REAR FENDER FRONT

63161-41F10

Unavailable

7

CUSHION

09320-15008

$3.56

8

NUT

08316-1008B

$2.65

9

CUSHION

09320-06026

$4.45

10

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.78

11

PLATE, REAR FENDER

63130-43H00

$468.58

12

BRACKET, LOWER RH

63150-43H00

$46.25

13

BRACKET, LOWER LH

63160-43H00

$46.25

14

BOLT

01550-0610B

$2.43

15

GROMMET

09308-10017

$5.65

16

PLUG (OD:9)

09250-07004

$3.72
