2014 Suzuki VL800BL4 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2014 Suzuki VL800BL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

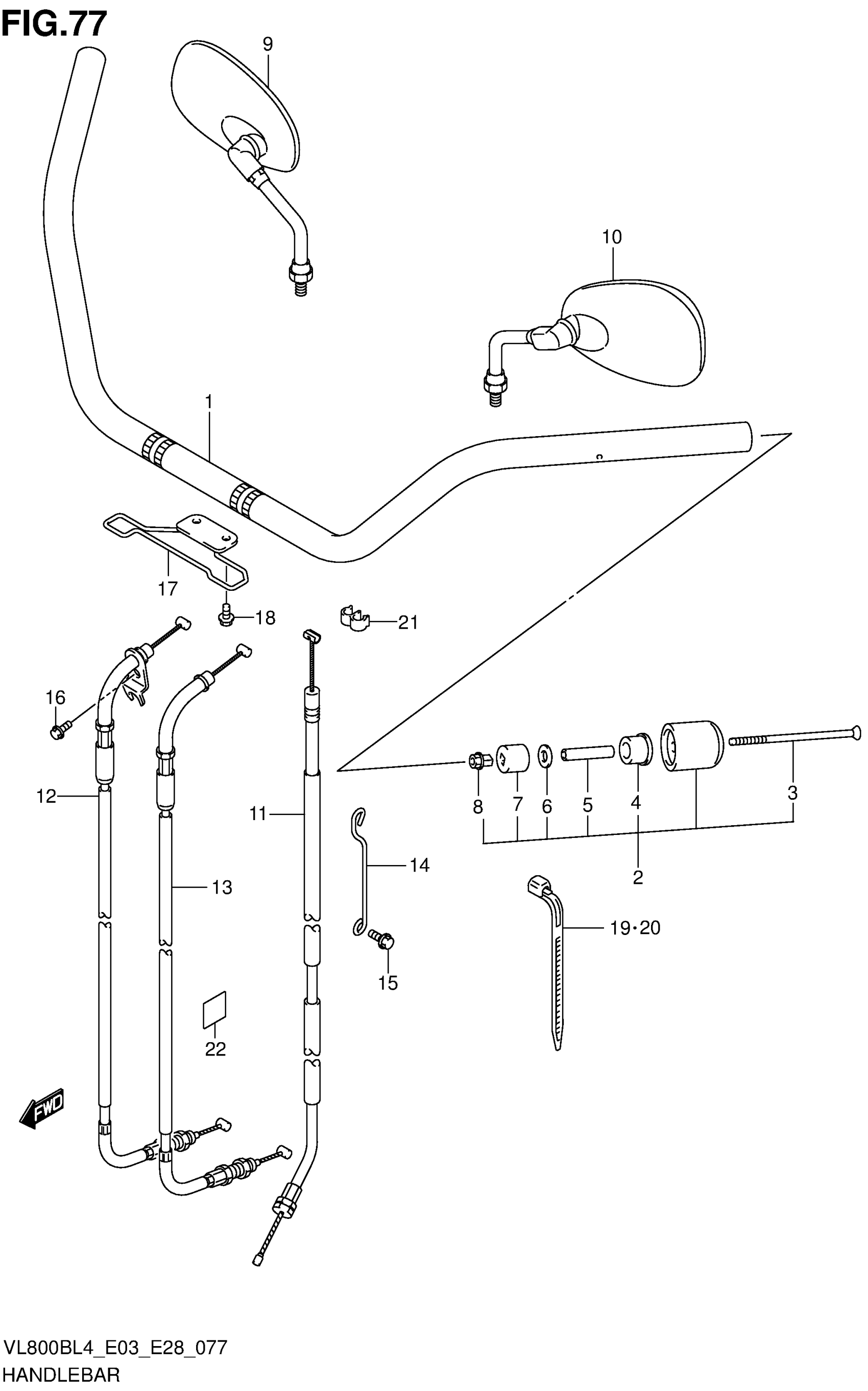

2014 Suzuki VL800BL4 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-41F40

1
Out of stock

2

BALANCER SET, HANDLEBAR This part replaces 56200-10891.

56200-10892

2
Out of stock

3

SCREW (6X127)

09127-06017

2
Out of stock

4

EXPANDER, OUTER

56272-26D01

2
Out of stock

5

SPACER

56276-17D00

2
Out of stock

6

WASHER (6.5X16X4)

09160-06131

2
Out of stock

7

EXPANDER, INNER

56272-10G10

2
Out of stock

8

NUT

56273-10G10

2
Out of stock

9

1

$171.78

In stock

10

1

$170.95

In stock

11

CABLE ASSY, CLUTCH

58200-41F30

1
Out of stock

12

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-43H00.

58300-43H01

1
Out of stock

13

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-43H10.

58300-43H11

1
Out of stock

14

GUIDE, THROTTLE CABLE

58626-41F01

1
Out of stock

15

BOLT

01550-0612A

2
Out of stock

16

BOLT

01550-0616A

1
Out of stock

17

GUIDE, CABLE

58620-41F00

1
Out of stock

18

BOLT

01550-0612A

2
Out of stock

19

CLAMP (L:190)

09407-19401

3
Out of stock

20

CLAMP (L:300)

09407-30401

1
Out of stock

21

CLIP

09408-00244

1

$3.08

In stock

22

PROTECTOR

87873-56K50

1
Out of stock
