2009 Suzuki VL800 Handle Lever Diagram

← All diagrams

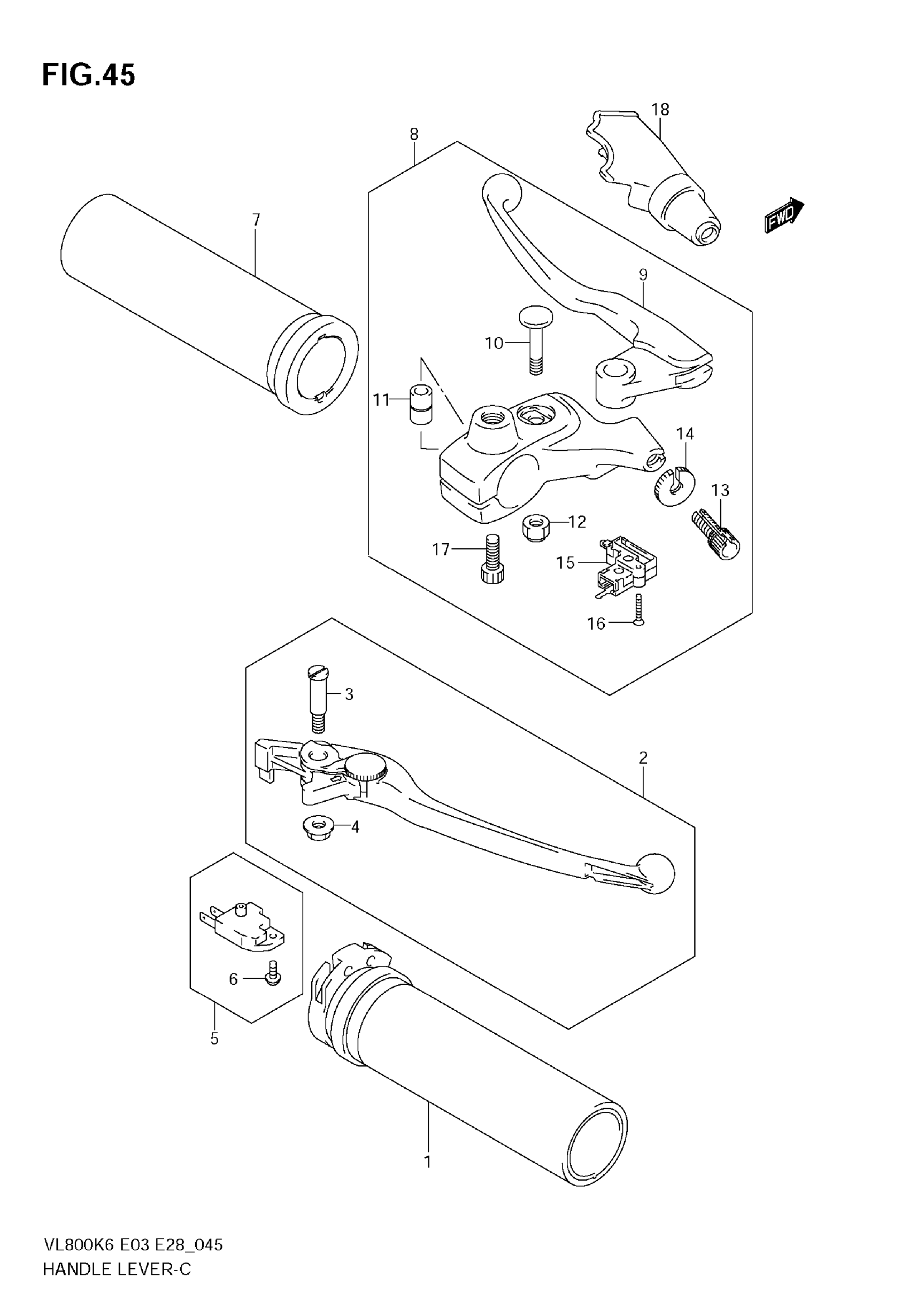

Find the part on the Handle Lever diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL800 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

1
Out of stock

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-41F10

1
Out of stock

3

BOLT, PIVOT

57431-48E00

1
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

1

$30.14

In stock

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 17 This part replaces 57500-24B01.

57500-24B02

1
Out of stock

9

LEVER, CLUTCH

57620-24B01

1
Out of stock

10

BOLT, CLUTCH LEVER

57531-24B00

1
Out of stock

11

SPACER, CLUTCH LEVER

57623-24B00

1
Out of stock

12

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

13

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

1
Out of stock

14

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

1
Out of stock

15

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

16

SCREW This part replaces 02112-03205.

02112-0320B

1
Out of stock

17

BOLT

07130-06207

1

$3.00

In stock

18

COVER,CLUTCH LE This part replaces 57661-48E00.

57661-48E01

1
Out of stock
