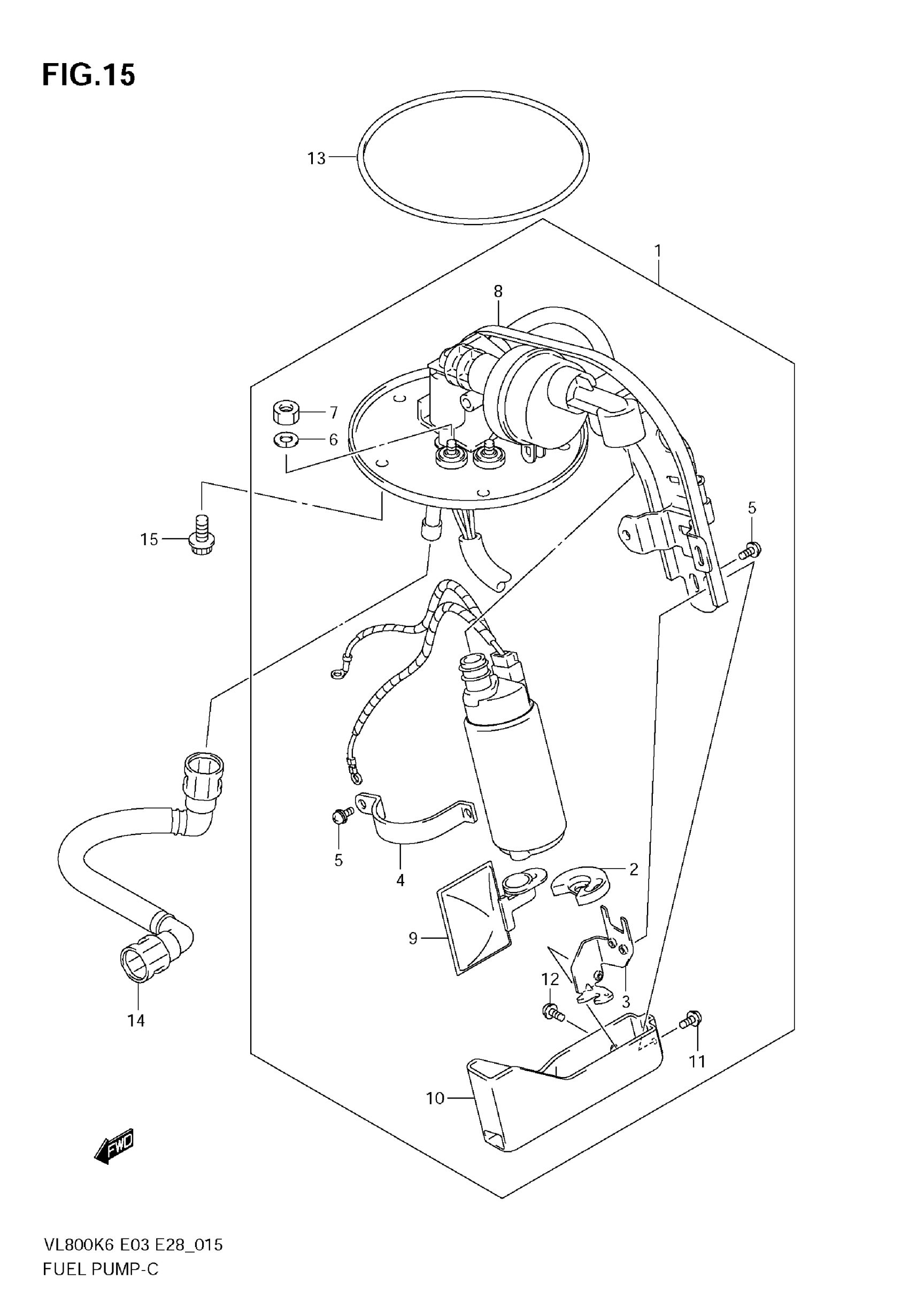

Suzuki VL800 (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | MODEL K6

15100-41F20

$782.73

1

PUMP ASSY, FUEL | MODEL K7/K8/K9; Includes Item(s) 2 - 12

15100-41F30

$565.87

2

CUSHION

15111-41F10

$19.93

3

HOLDER

15112-41F10

Unavailable

4

BAND, FUEL PUMP

15115-10F00

Unavailable

5

SCREW

15116-10F10

Unavailable

6

SPRING WASHER

15172-35F00

$8.13

7

NUT

15173-35F00

Unavailable

8

PLATE ASSY | MODEL K6

15410-41F20

Unavailable

8

PLATE ASSY | MODEL K7/K8/K9

15410-41F30

$590.60

9

STRAINER

15420-41F10

$113.90

10

VESSEL

15425-41F10

$39.43

11

SCREW

15429-41F10

Unavailable

12

SCREW

15429-41F20

Unavailable

13

O-RING

15201-35F00

$25.27

14

HOSE, FUEL | MODEL K6/K7/K8

15810-41F00

$52.83

14

HOSE, FUEL | MODEL K9 This part replaces 15810-39G00.

15810-39G03

$62.72

15

BOLT, FUEL PUMP

07120-0612A

$2.50
