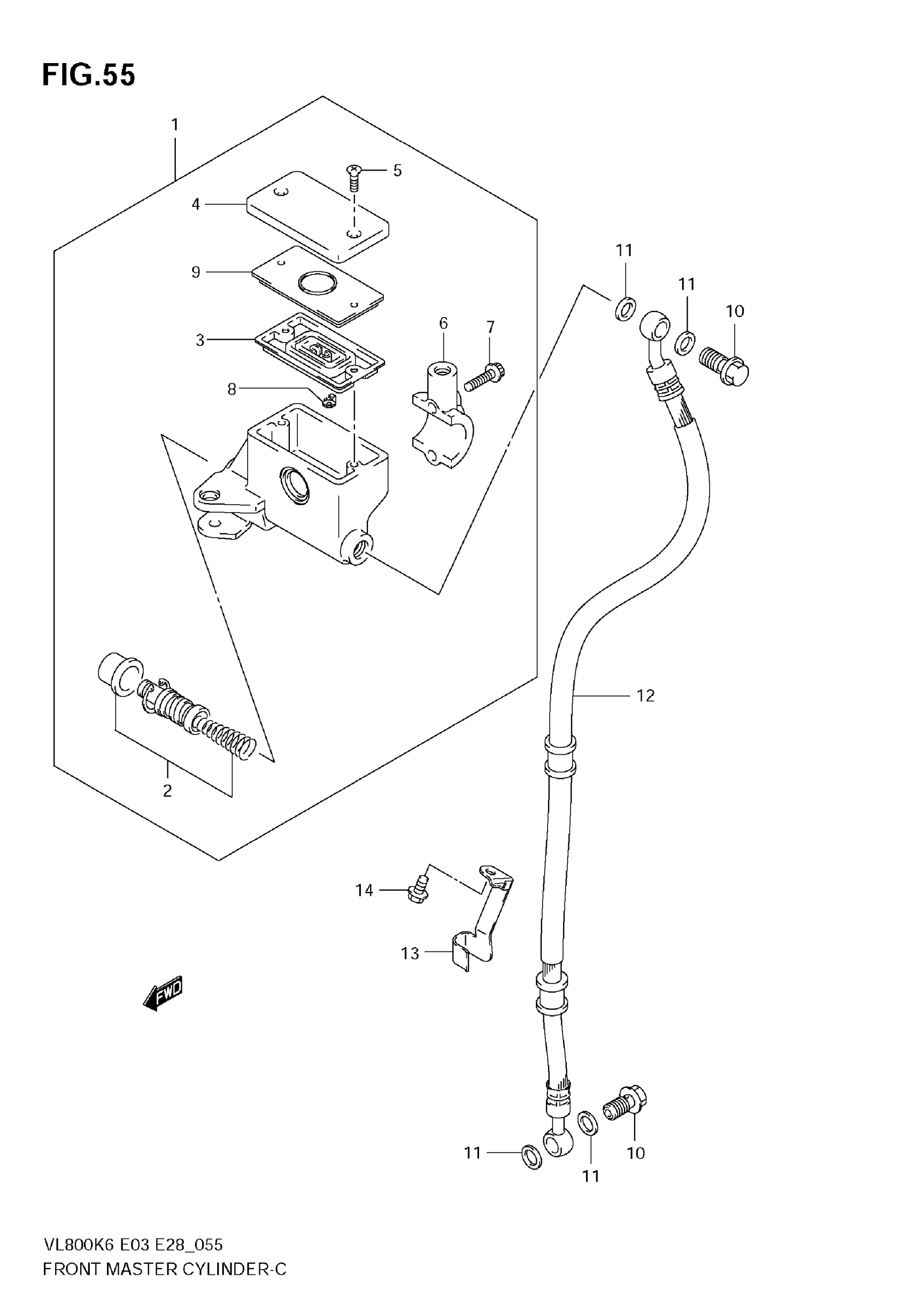

Suzuki VL800 (2009) FRONT MASTER CYLINDER (MODEL K6) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-10F50

Unavailable

2

PISTON/CUP SET

59600-04810

$41.38

3

DIAPHRAGM

59667-49460

$8.95

4

CAP

59669-10F00

$80.65

5

SCREW

02122-04127

$1.97

6

HOLDER

59671-38AA0

$41.60

7

BOLT

07130-06207

$2.80

8

PROTECTOR

59664-48B00

$12.43

9

PLATE

59668-41C00

$8.54

10

BOLT, LOWER (10X1.25X22)

09360-10062

$5.81

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE This part replaces 59480-41F01.

59480-41F02

$79.97

13

CLAMP, BRAKE HOSE UPPER

59266-41F00

Unavailable

14

BOLT

01550-0612B

$2.38
