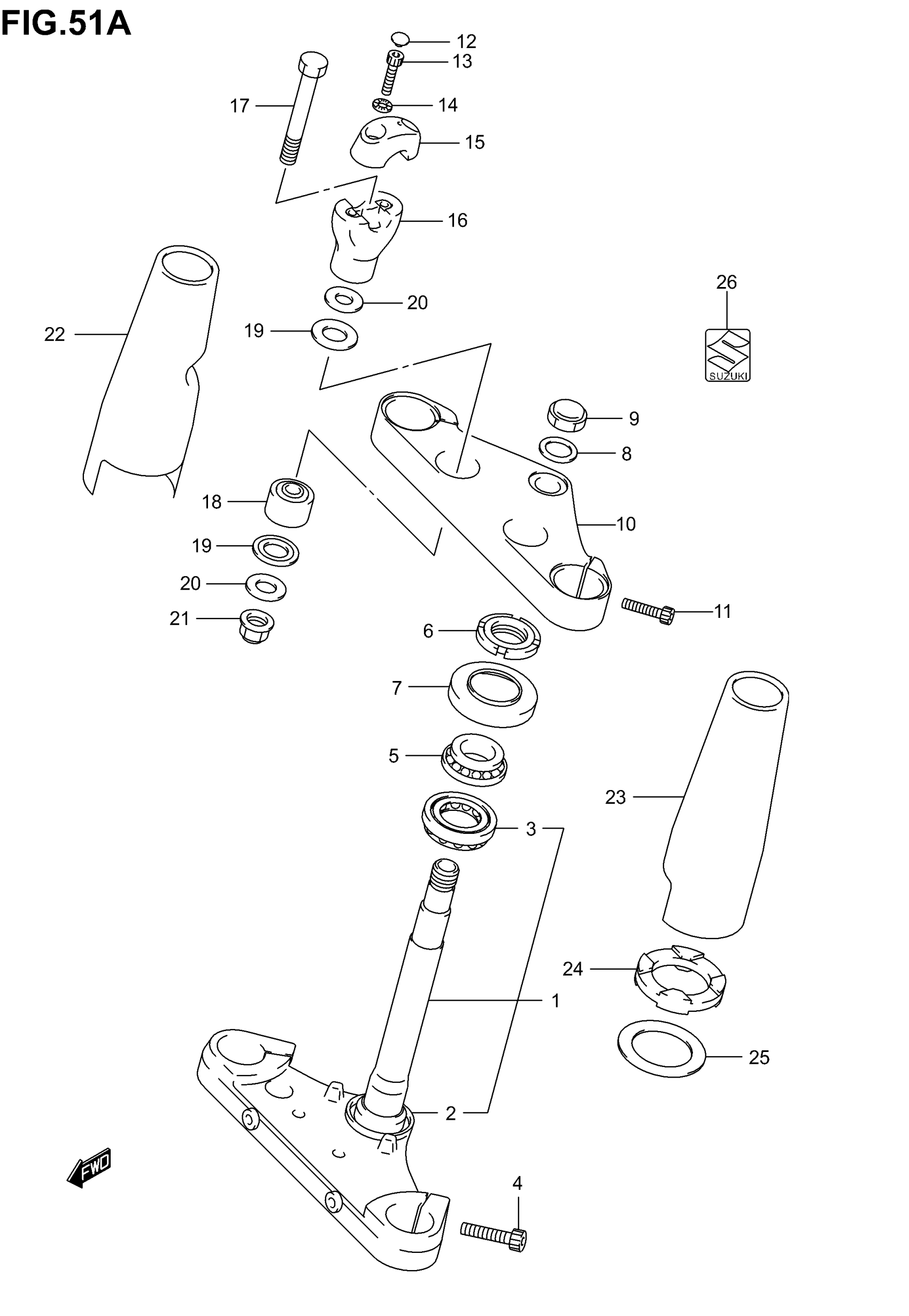

Suzuki VL800 (2005) STEERING STEM (MODEL K5) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-41F20

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.04

3

BEARING (30X55X17)

09267-30010

$44.72

4

BOLT This part replaces 07130-10303.

07130-1030B

$5.83

5

BEARING (25X47X15)

09267-25009

$56.72

6

NUT, STEM

51631-28000

$19.60

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.04

8

WASHER, STEM

51356-24B01

$7.13

9

NUT, STEM

51353-24B00

$34.62

10

HEAD, STEERING STEM

51311-41F40

Unavailable

11

BOLT

51321-06G00

$10.35

12

CAP, BOLT

09250-06009

$3.24

13

BOLT, HOLDER

07130-08307

$4.98

14

WASHER

09164-08015

$3.00

15

HOLDER, HANDLE UPPER

56211-41F20

$87.95

16

HOLDER, HANDLE LOWER

56221-41F20

$145.47

17

BOLT, STAY

51226-41F20

$40.53

18

DAMPER, RUBBER

56240-41F20

$46.13

19

SEAT RUBBER

56245-41F20

$9.17

20

WASHER

51354-41F20

$9.98

21

NUT

56246-41F20

$14.22

22

COVER, UPPER, R

51530-41F20

$311.37

23

COVER, UPPER, L

51540-41F20

$311.37

24

SEAT, RUBBER

51468-10F00

$24.63

25

WASHER

51467-10F00

$14.27

26

EMBLEM, "S"

68281-35F00

$16.18
