2005 Suzuki VL800 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

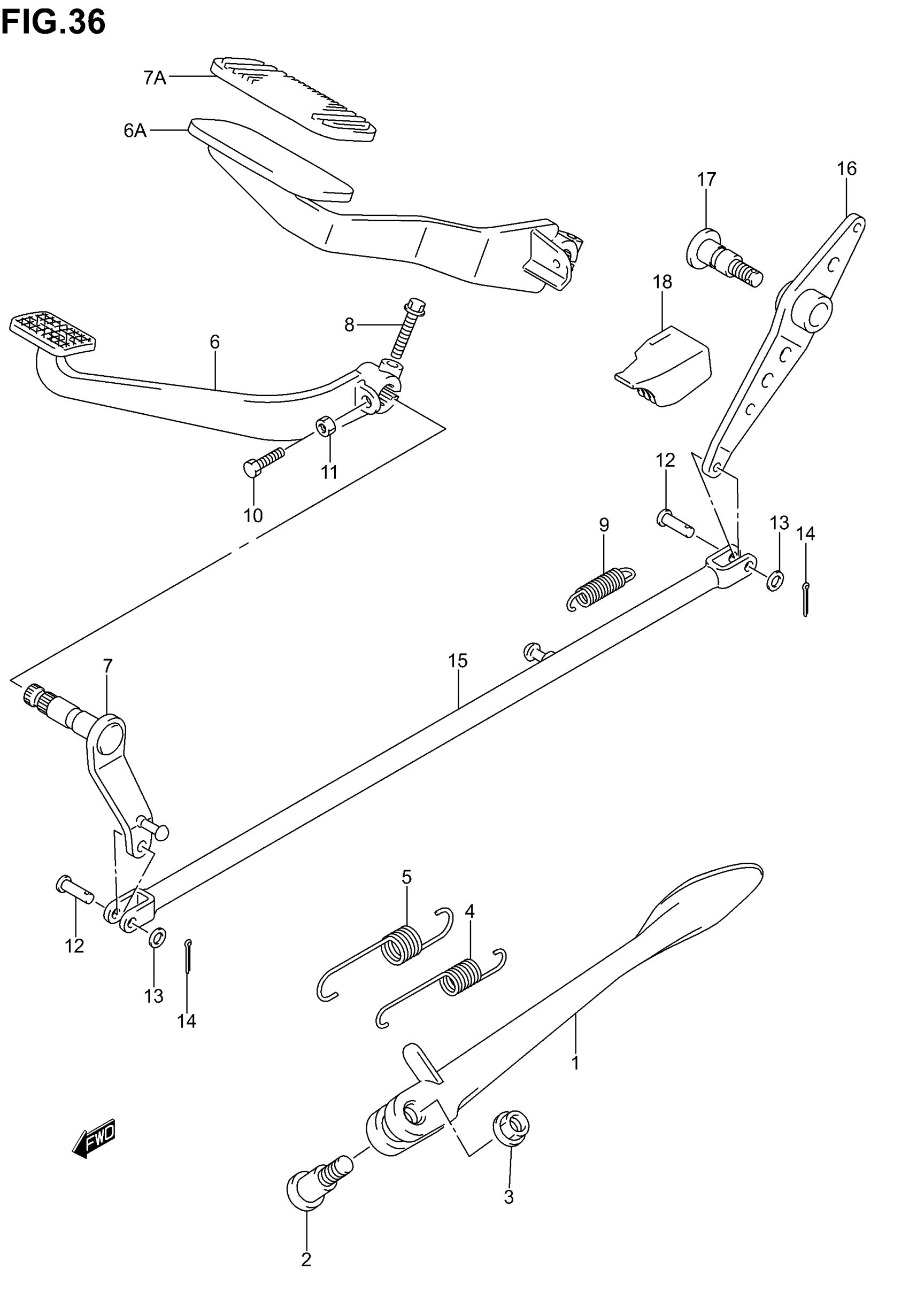

2005 Suzuki VL800 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$206.47

In stock

2

BOLT

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING, INNER

09443-14066

1

$5.36

In stock

5

SPRING, OUTER

09443-19012

1
Out of stock

6

1

$135.67

In stock

7

ARM, BRAKE ROD

43120-41F00

1

$69.90

In stock

8

BOLT, ARM

01550-06257

1
Out of stock

9

1

$12.91

In stock

9

1

$6.77

In stock

10

BOLT, ADJUSTER

01500-06207

1

$2.48

In stock

11

.NUT

08310-00067

1

$1.82

In stock

12

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

2
Out of stock

13

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock

14

2

$1.31

In stock

15

ROD, FRONT

43130-41F00

1

$70.07

In stock

16

LINK, REAR BRAKE

43140-41F00

1

$69.02

In stock

17

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

18

1

$9.72

In stock
