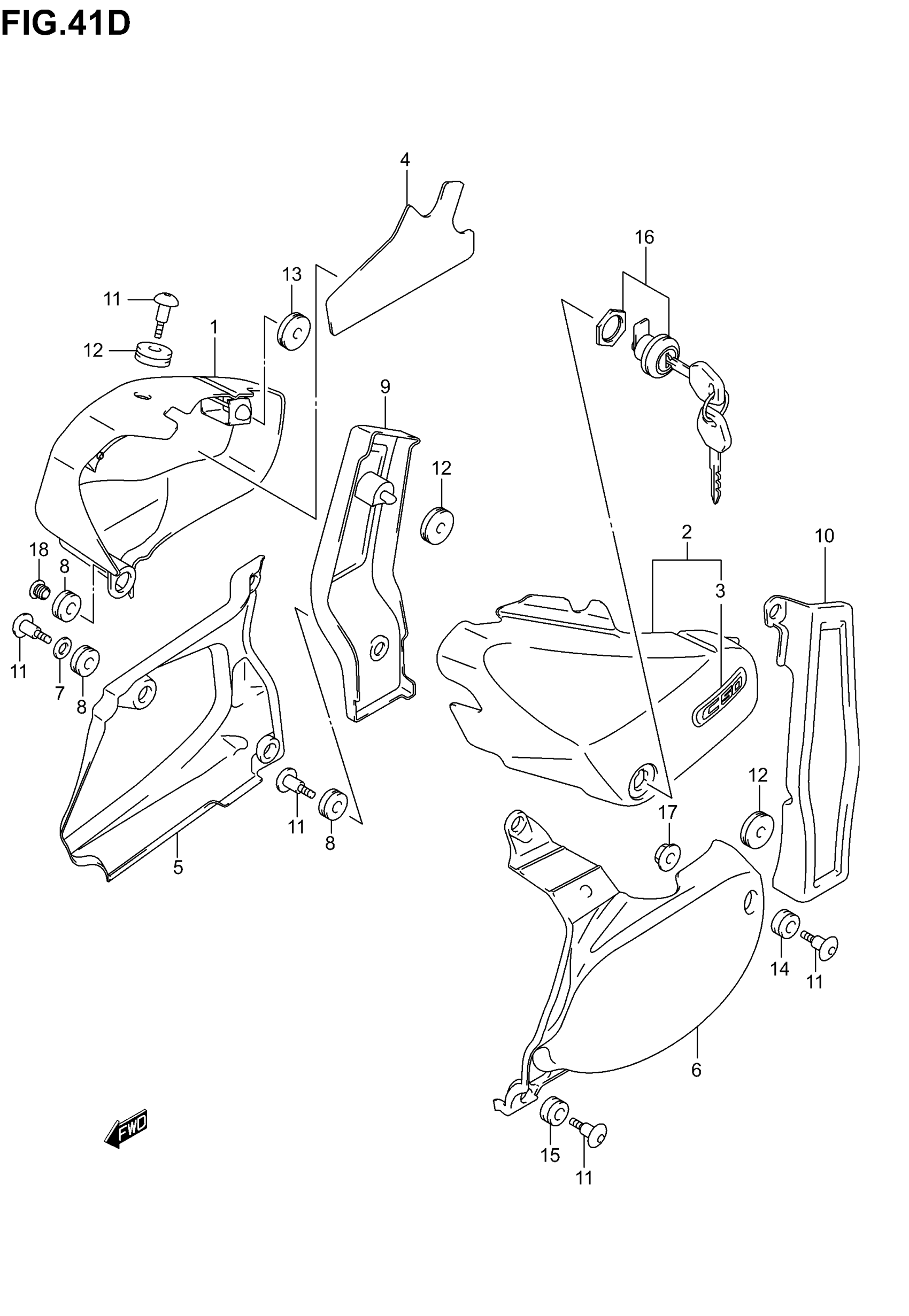

Suzuki VL800 (2005) FRAME COVER (MODEL K5) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | E3,E28 FOR YAY This part replaces 47110-41F80-YAY.

47110-41F81-YAY

Unavailable

1

COVER, FRAME RH (BLUE) | E3,E28 FOR NY3 This part replaces 47110-41F80-YBA.

47110-41F81-YBA

Unavailable

1

NO DESCRIPTION AVAILABLE | E3,E28 FOR AVU This part replaces 47110-41F80-YM6.

47110-41F81-YM6

Unavailable

1

COVER, FRAME RH (BLACK) | VL800TK5 E3,E28 This part replaces 47110-41FA0-YAY.

47110-41FA1-YAY

Unavailable

1

COVER, FRAME RH (BLACK) | E33 FOR YAY This part replaces 47110-41F90-YAY.

47110-41F91-YAY

Unavailable

1

COVER, FRAME RH (BLUE) | E33 FOR NY3

47110-41F90-YBA

Unavailable

1

COVER,SIDE,R(SI | E33 FOR AVU This part replaces 47110-41F90-YM6.

47110-41F91-YM6

Unavailable

1

COVER, FRAME RH (BLACK) | VL800TK5 E33

47110-41FB0-YAY

Unavailable

2

COVER, FRAME LH (BLACK) | FOR YAY

47210-41F80-YAY

Unavailable

2

COVER,SIDE,L | FOR NY3 This part replaces 47210-41F80-YBA.

47211-41F01

$51.13

2

COVER, FRAME LH (SILVER) | FOR AVU

47210-41F80-YM6

Unavailable

2

COVER, FRAME LH (BLACK) | VL800TK5; Includes Item(s) 3 - 3

47210-41F80-YAY

Unavailable

3

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$37.73

3

EMBLEM, "C50T" | VL800TK5 This part replaces 68131-41F50.

68131-41F51

$35.90

4

SHIELD, FRAME COVER RH

47166-41F00

$20.13

5

COVER, SIDE LOWER RH

47130-41F00

Unavailable

6

COVER, SIDE LOWER LH

47231-41F00

$429.23

7

WASHER

09160-10123

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

9

COVER, SIDE REAR RH (BLACK) This part replaces 47141-41F00-019.

47141-41F01-019

$155.65

10

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

11

SCREW

09139-06126

$3.65

12

CUSHION

09320-08018

$2.80

13

CUSHION BOX REAR

09320-08028

$2.80

14

CUSHION

09320-09501

$2.06

15

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

CAP This part replaces 09250-09001.

09250-09008

$1.56
