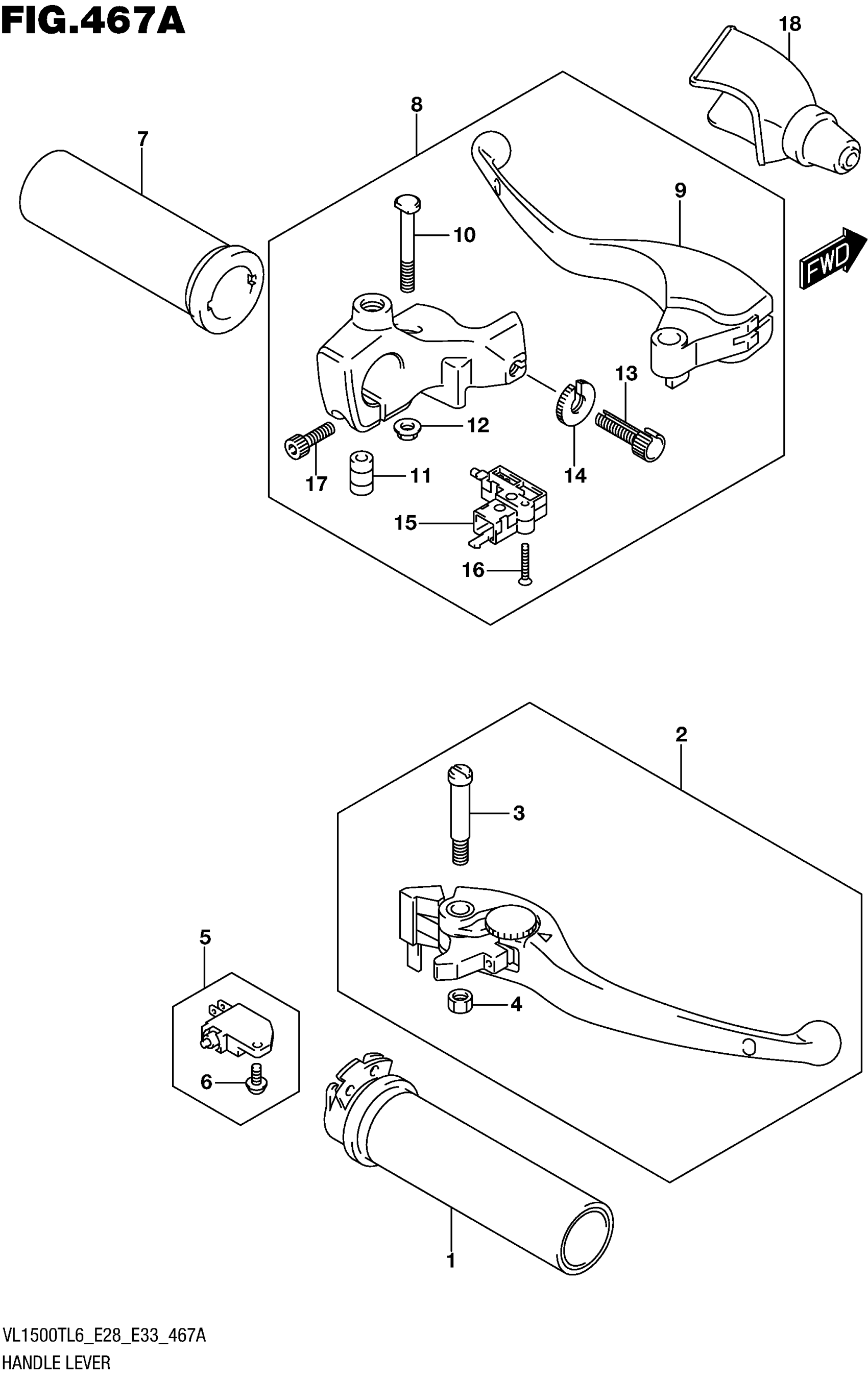

Suzuki VL1500TL6 (2016) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-26D10.

57110-26D11

$39.60

2

LEVER ASSY, BRAKE

57300-48G10

$47.10

3

.BOLT, PIVOT

57431-48G00

$10.42

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

6

.SCREW

57465-17C00

$2.37

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

8

LEVER ASSY,CLUTCH This part replaces 57500-48G12.

57500-48G14

$109.17

9

.LEVER, CLUTCH

57621-48G11

$32.15

10

.BOLT, PIVOT

57531-48G00

$42.35

11

.COLLAR

57623-48G00

$33.85

12

NUT

08319-3106A

$2.01

13

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$10.66

14

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$7.67

15

.SWITCH ASSY,CLUTCH

57560-05A10

$29.04

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

.BOLT

07130-06207

$2.80

18

COVER,CLUTCH LEVER This part replaces 57541-48G10.

57541-48G11

$10.09
