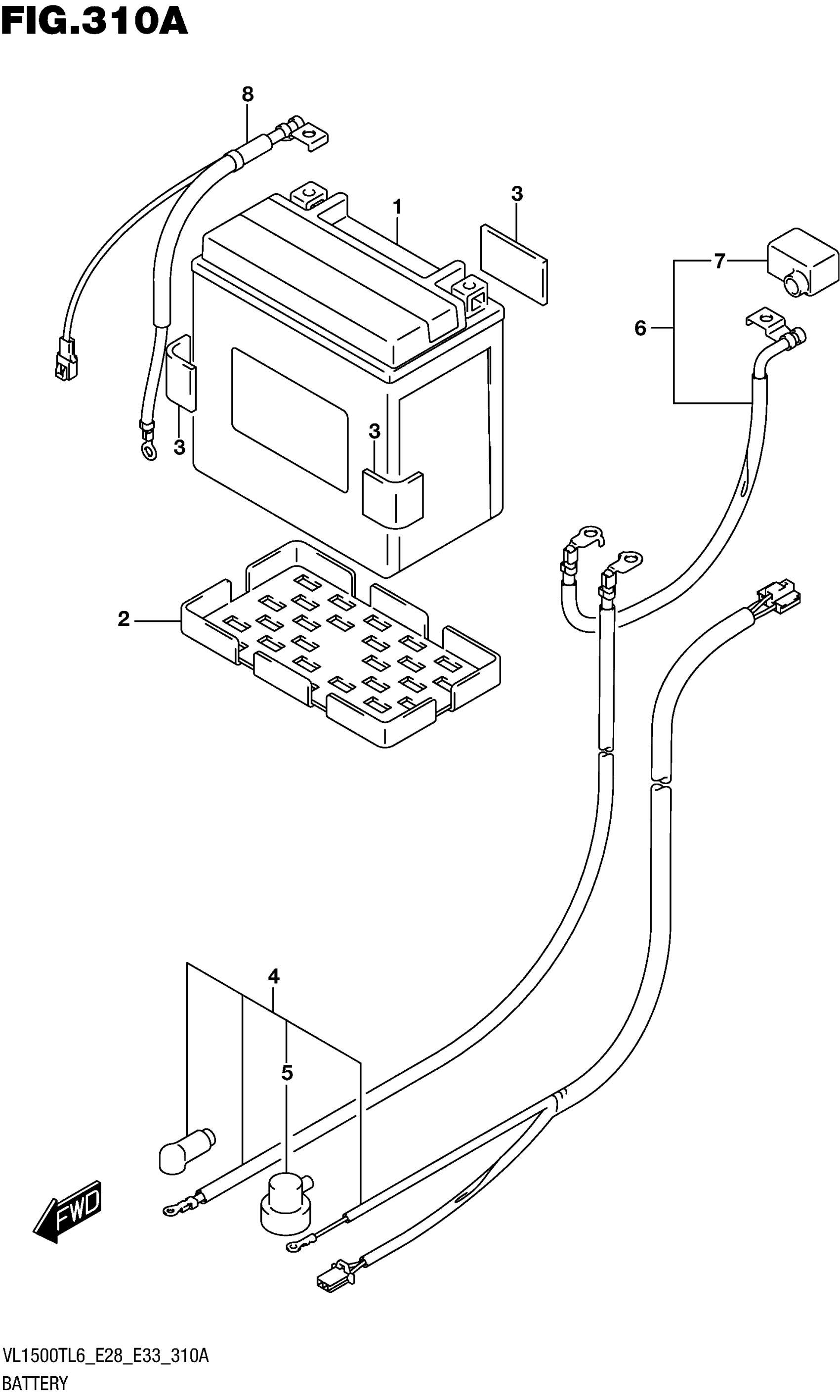

Suzuki VL1500TL6 (2016) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-31G01.

33610-03G10

$127.74

1

BATTERY ASSY This part replaces 33610-31G01.

33610-03G10

$127.74

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

PROTECTOR (30X50X3.0)

33652-36000

$2.87

4

WIRE,STARTER MO This part replaces 33810-06J01.

33810-06J02

$71.97

5

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

6

WIRE, BATTERY PLUS LEAD

33820-06J00

Unavailable

7

.CAP, BATTERY PLUS

33624-16E00

$6.77

8

WIRE, BATTERY MINUS LEAD

33860-40H00

Unavailable
