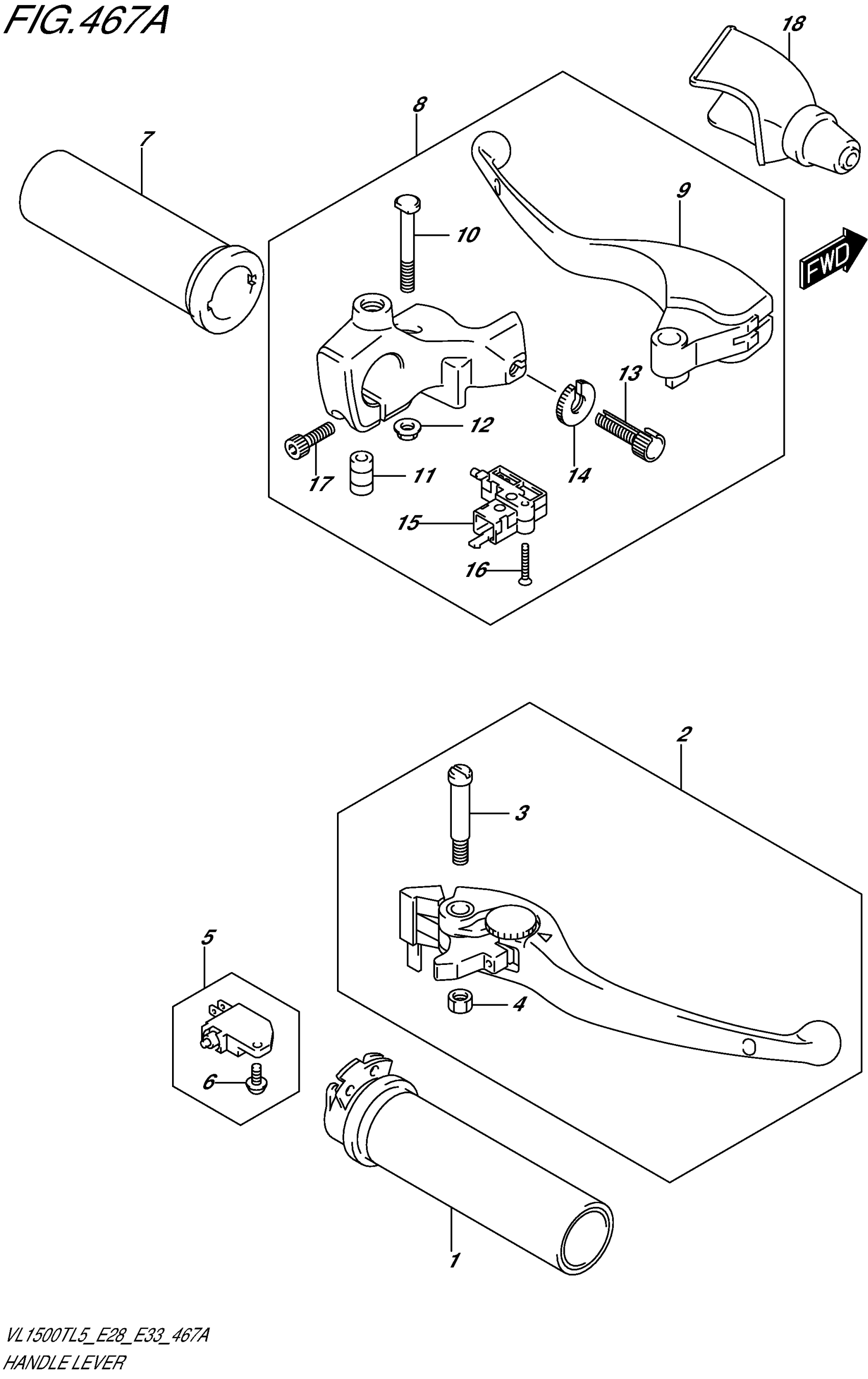

Find the part on the Handle Lever diagram for your 2015 Suzuki VL1500TL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500TL5 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE This part replaces 57110-26D10.

57110-26D11

1
Out of stock

2

LEVER ASSY, BRAKE

57300-48G10

1
Out of stock

3

BOLT, PIVOT

57431-48G00

1
Out of stock

4

NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

1
Out of stock

8

LEVER ASSY,CLUTCH This part replaces 57500-48G11.

57500-48G14

1
Out of stock

9

LEVER, CLUTCH

57621-48G11

1
Out of stock

10

BOLT, PIVOT

57531-48G00

1
Out of stock

11

COLLAR

57623-48G00

1
Out of stock

12

NUT

08319-3106B

1
Out of stock

13

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

14

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

15

.SWITCH ASSY,CLUTCH

57560-05A10

1
Out of stock

16

.SCREW,CLUTCH SWITCH This part replaces 57562-41G00.

57562-41G01

1
Out of stock

17

BOLT

07130-0620A

1
Out of stock

18

COVER,CLUTCH LEVER This part replaces 57541-48G10.

57541-48G11

1
Out of stock
