2015 Suzuki VL1500TL5 Front Caliper Diagram

← All diagrams

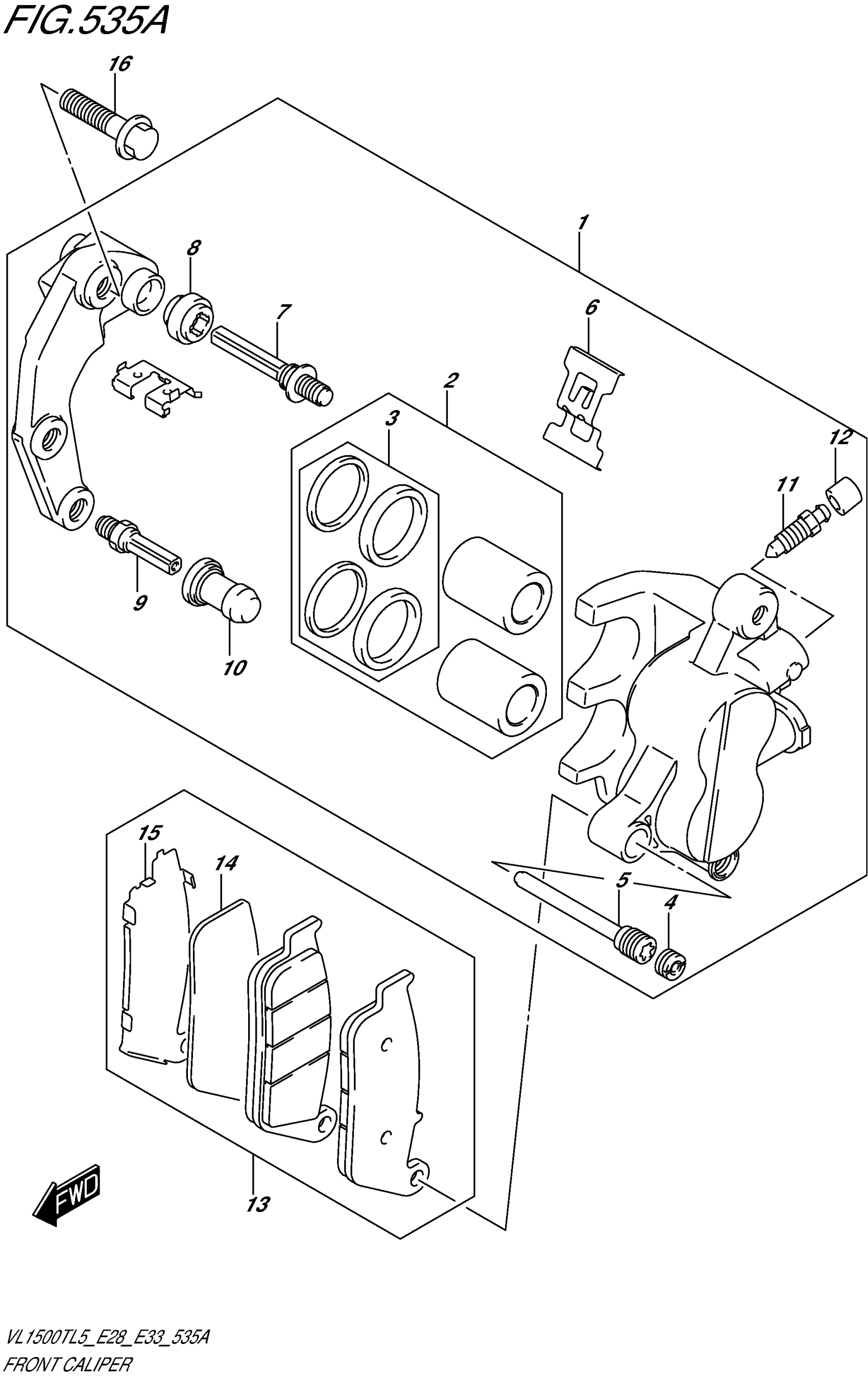

Find the part on the Front Caliper diagram for your 2015 Suzuki VL1500TL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500TL5 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT

59300-06J10-999

—
Out of stock

2

PISTON SET

59300-21810

1
Out of stock

3

SEAL SET, PISTON

59300-21860

1

$26.75

In stock

4

PLUG, PIN

59146-21E10

1

$6.13

In stock

5

PIN, HANGER

59145-21E10

1
Out of stock

6

SPRING, PAD

59115-21E10

1
Out of stock

7

PIN

59187-21E10

1
Out of stock

8

BOOT

59303-14500

1
Out of stock

9

PIN

59382-14500

1

$9.18

In stock

10

BOOT

59386-13A00

1
Out of stock

11

BLEEDER

59121-01A00

1
Out of stock

12

CAP, BLEEDER

59122-46H00

1
Out of stock

13

PAD SET

59300-06810

1
Out of stock

14

INSULATOR

59132-21E10

—
Out of stock

15

RETAINER

59133-21E10

—
Out of stock

16

BOLT (8X35)

01550-0835A

2
Out of stock
