2015 Suzuki VL1500L5 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2015 Suzuki VL1500L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

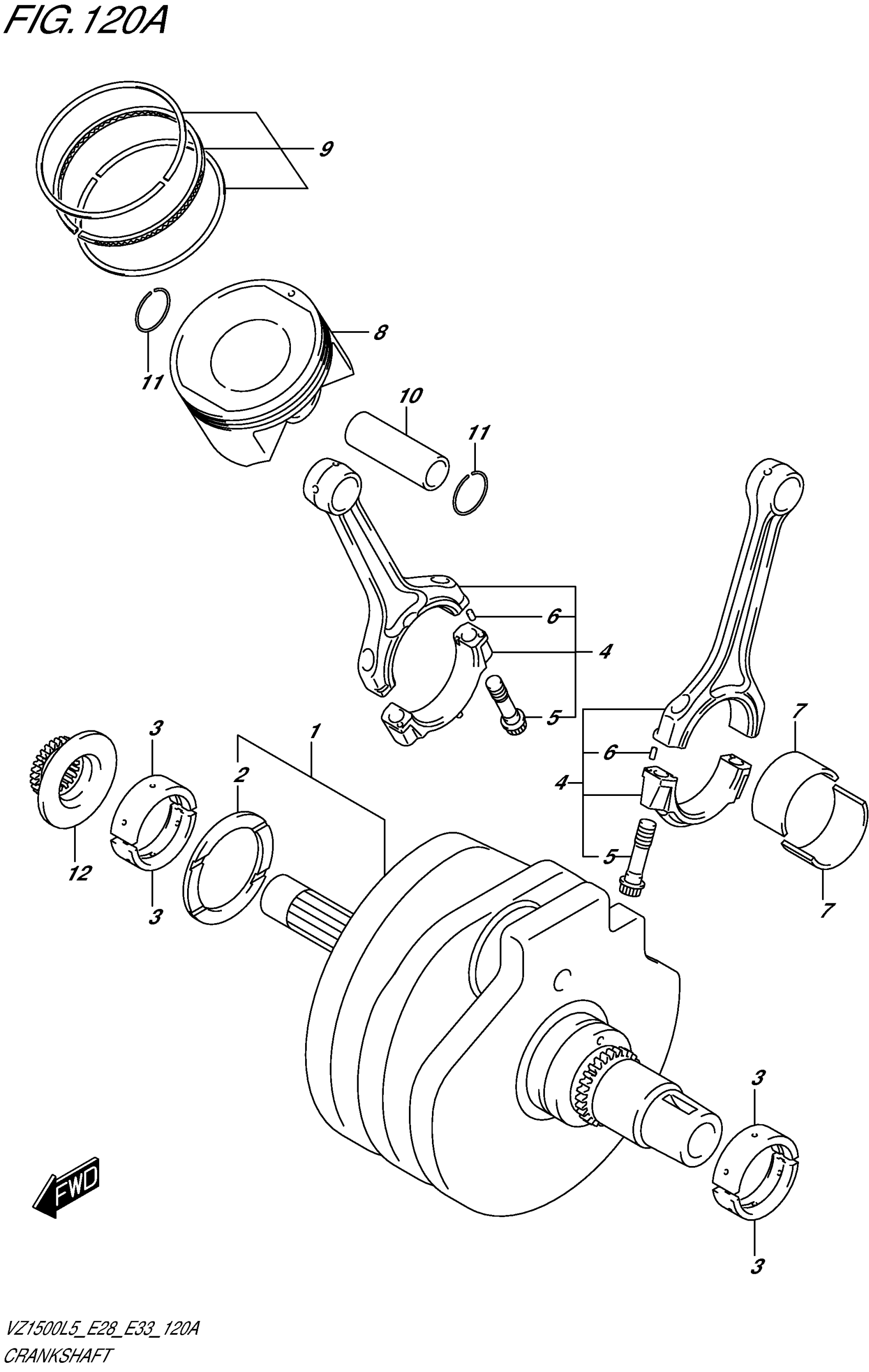

2015 Suzuki VL1500L5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12000-40851

1

$1,896.28

In stock

2

BEARING, CRANK THRUST (T:1.925)

12228-40H00-0A0

1
Out of stock

2

BEARING, CRANK THRUST (T:1.950)

12228-40H00-0B0

1
Out of stock

2

BEARING, CRANK THRUST (T:1.975)

12228-40H00-0C0

1
Out of stock

2

BEARING, CRANK THRUST (T:2.000)

12228-40H00-0D0

1
Out of stock

2

BEARING, CRANK THRUST (T:2.025)

12228-40H00-0E0

1
Out of stock

2

BEARING, CRANK THRUST (T:2.050)

12228-40H00-0F0

1
Out of stock

3

BEARING, CRANKSHAFT (GREEN)

12229-40H00-0A0

4
Out of stock

3

BEARING, CRANKSHAFT (BLACK)

12229-40H00-0B0

4
Out of stock

3

BEARING, CRANKSHAFT (BROWN)

12229-40H00-0C0

4
Out of stock

4

CONNROD ASSY

12160-40H00

2
Out of stock

5

BOLT

12163-06G00

4

$23.55

In stock

6

PIN (4X13.8)

04221-04089

4
Out of stock

7

BEARING, CRANK PIN (GREEN)

12164-40H00-0A0

4
Out of stock

7

BEARING, CRANK PIN (BLACK)

12164-40H00-0B0

4

$25.42

In stock

7

BEARING, CRANK PIN (BROWN)

12164-40H00-0C0

4
Out of stock

7

BEARING, CRANK PIN (YELLOW)

12164-40H00-0D0

4
Out of stock

8

PISTON

12111-40H10-0F0

2

$190.35

In stock

9

RING SET, PISTON

12140-40H01

2

$103.33

In stock

10

PIN, PISTON

12151-02F10

2

$32.90

In stock

11

CIRCLIP

09381-22002

4

$1.78

In stock

12

SPROCKET, CAM CHAIN DRIVE (NT:23)

12731-40H00

1
Out of stock
